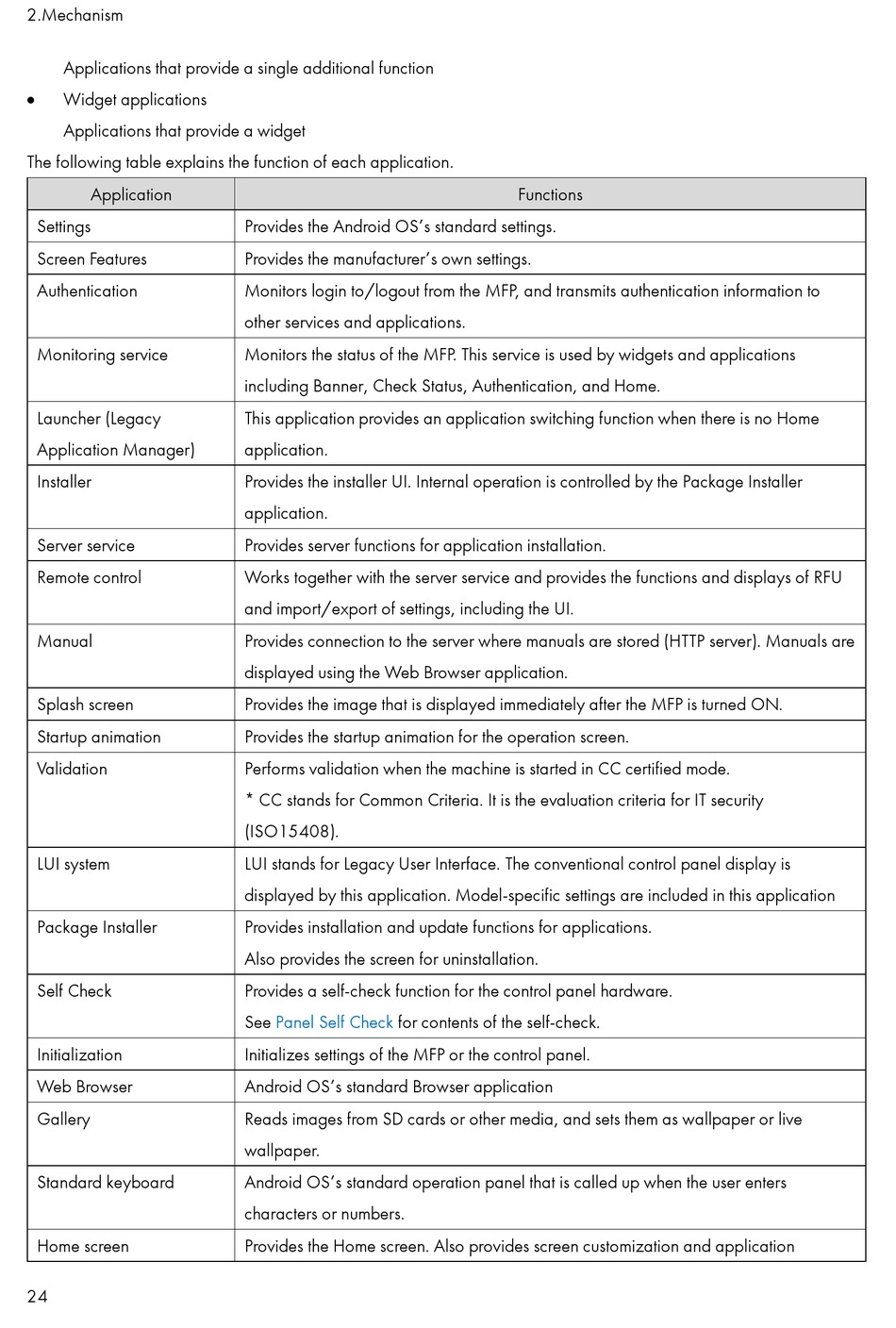

Ricoh M0A0 Service Manual page 582

2.Mechanism
Applications that provide a single additional function

Widget applications
Applications that provide a widget
The following table explains the function of each application.
Application
Settings
Screen Features
Authentication
Monitoring service
Launcher (Legacy
Application Manager)
Installer
Server service
Remote control
Manual
Splash screen
Startup animation
Validation
LUI system
Package Installer
Self Check
Initialization
Web Browser
Gallery
Standard keyboard
Home screen
24
Provides the Android OS's standard settings.
Provides the manufacturer's own settings.
Monitors login to/logout from the MFP, and transmits authentication information to
other services and applications.
Monitors the status of the MFP. This service is used by widgets and applications
including Banner, Check Status, Authentication, and Home.
This application provides an application switching function when there is no Home
application.
Provides the installer UI. Internal operation is controlled by the Package Installer
application.
Provides server functions for application installation.
Works together with the server service and provides the functions and displays of RFU
and import/export of settings, including the UI.
Provides connection to the server where manuals are stored (HTTP server). Manuals are
displayed using the Web Browser application.
Provides the image that is displayed immediately after the MFP is turned ON.
Provides the startup animation for the operation screen.
Performs validation when the machine is started in CC certified mode.
* CC stands for Common Criteria. It is the evaluation criteria for IT security
(ISO15408).
LUI stands for Legacy User Interface. The conventional control panel display is
displayed by this application. Model-specific settings are included in this application
Provides installation and update functions for applications.
Also provides the screen for uninstallation.
Provides a self-check function for the control panel hardware.
See Panel Self Check for contents of the self-check.
Initializes settings of the MFP or the control panel.
Android OS's standard Browser application
Reads images from SD cards or other media, and sets them as wallpaper or live
wallpaper.
Android OS's standard operation panel that is called up when the user enters
characters or numbers.
Provides the Home screen. Also provides screen customization and application
Functions
