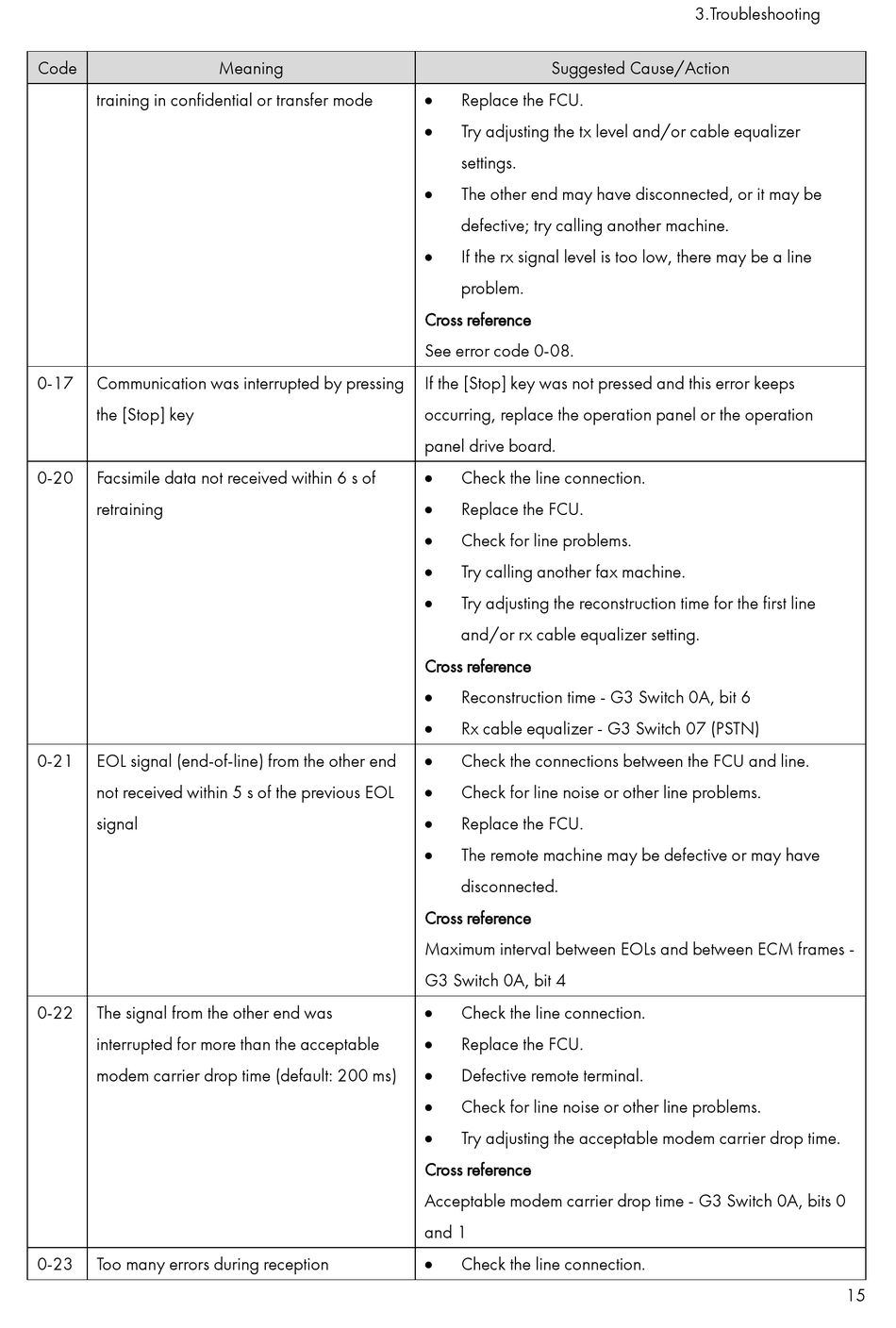

Ricoh M0A0 Service Manual page 641

Code
training in confidential or transfer mode
0-17 Communication was interrupted by pressing
the [Stop] key
0-20 Facsimile data not received within 6 s of
retraining
0-21 EOL signal (end-of-line) from the other end
not received within 5 s of the previous EOL
signal
0-22 The signal from the other end was
interrupted for more than the acceptable
modem carrier drop time (default: 200 ms)
0-23 Too many errors during reception
Meaning Suggested Cause/Action

Replace the FCU.

Try adjusting the tx level and/or cable equalizer
settings.

The other end may have disconnected, or it may be
defective; try calling another machine.

If the rx signal level is too low, there may be a line
problem.
Cross reference
See error code 0-08.
If the [Stop] key was not pressed and this error keeps
occurring, replace the operation panel or the operation
panel drive board.

Check the line connection.

Replace the FCU.

Check for line problems.

Try calling another fax machine.

Try adjusting the reconstruction time for the first line
and/or rx cable equalizer setting.
Cross reference

Reconstruction time - G3 Switch 0A, bit 6

Rx cable equalizer - G3 Switch 07 (PSTN)

Check the connections between the FCU and line.

Check for line noise or other line problems.

Replace the FCU.

The remote machine may be defective or may have
disconnected.
Cross reference
Maximum interval between EOLs and between ECM frames -
G3 Switch 0A, bit 4

Check the line connection.

Replace the FCU.

Defective remote terminal.

Check for line noise or other line problems.
 Try adjusting the acceptable modem carrier drop time.
Cross reference
Acceptable modem carrier drop time - G3 Switch 0A, bits 0
and 1

Check the line connection.
3.Troubleshooting
15
