4.Replacement and Adjustment

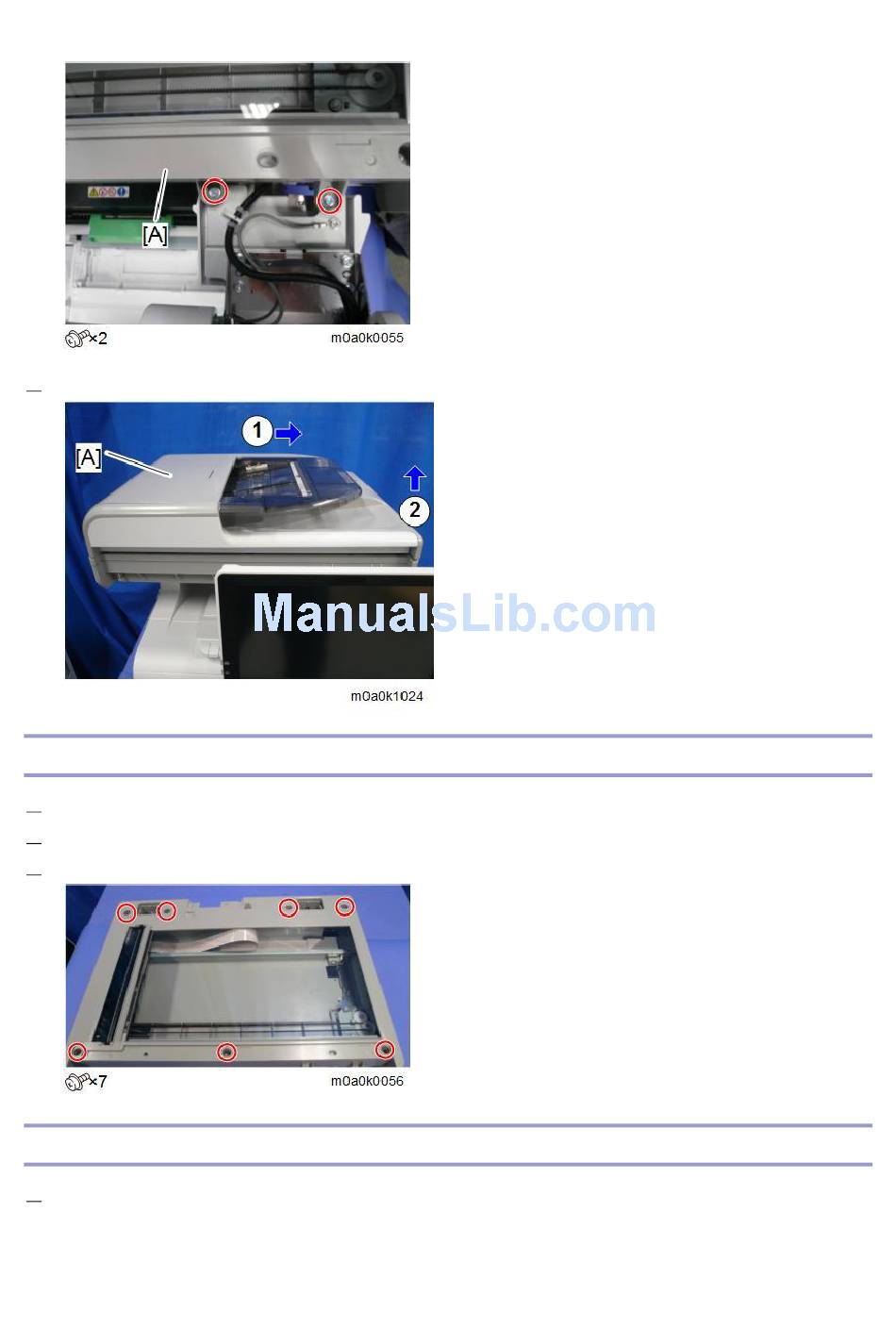

6. Slide the SPDF and the scanner unit [A] to the right and then lift them from the machine.

Scanner Upper Cover

1.
Remove the SPDF. (SPDF
2.
Remove the scanner front cover.
3. Remove the scanner upper cover [A].

SPDF Open/Closed Sensor

1.
Remove the scanner upper cover.
180
Unit)
(Scanner Unit (with
(Scanner Upper
SPDF))
Cover)
