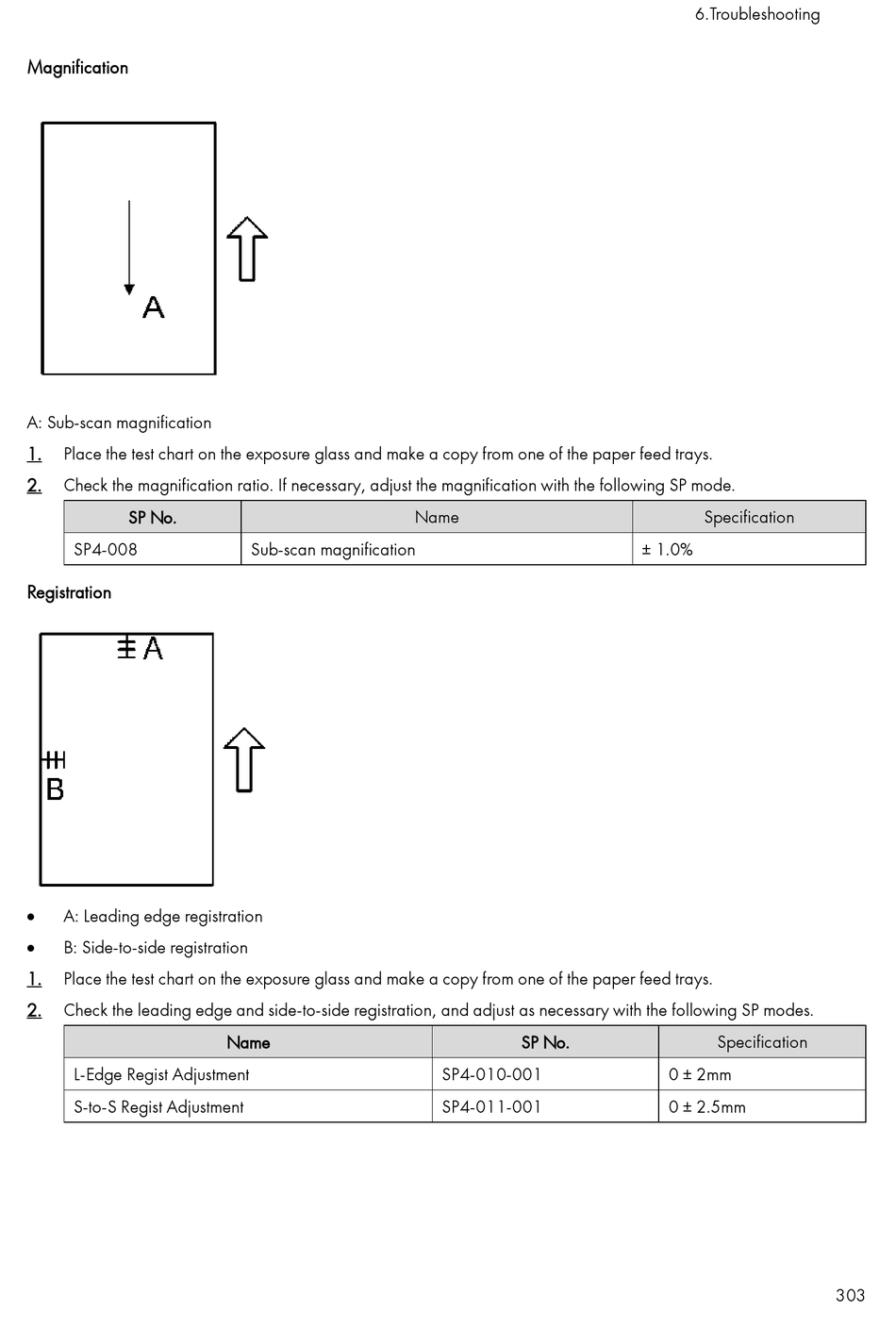

Ricoh M0A0 Service Manual page 315

Magnification
A: Sub-scan magnification
1. Place the test chart on the exposure glass and make a copy from one of the paper feed trays.
2.
Check the magnification ratio. If necessary, adjust the magnification with the following SP mode.
SP No.
SP4-008
Registration

A: Leading edge registration

B: Side-to-side registration
1.
Place the test chart on the exposure glass and make a copy from one of the paper feed trays.
2.
Check the leading edge and side-to-side registration, and adjust as necessary with the following SP modes.
L-Edge Regist Adjustment
S-to-S Regist Adjustment
Sub-scan magnification
Name
Name
SP No.
SP4-010-001
SP4-011-001
6.Troubleshooting
Specification
± 1.0%
Specification
0 ± 2mm
0 ± 2.5mm
