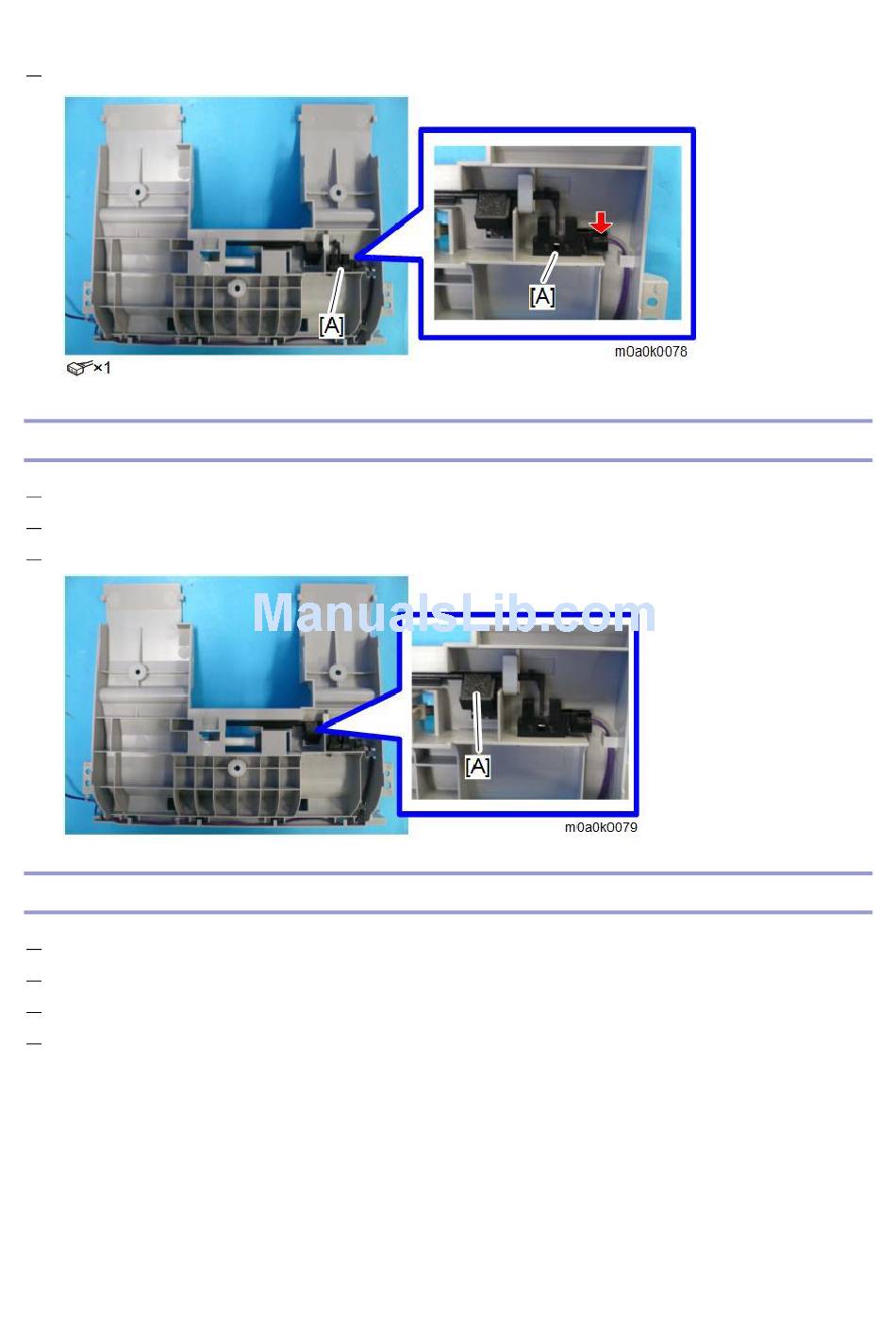

3. Remove the SPDF feed sensor [A].

SPDF Feed Sensor Actuator

1.
Remove the SPDF top cover.
2.
Remove the SPDF feed sensor bracket.
3. Remove the SPDF feed sensor actuator [A].

SPDF CIS

1. Remove the SPDF front cover.
2.
Remove the SPDF rear cover.
3.
Remove the original feed unit.
4.
Remove the SPDF guide plate [A].
(SPDF Top Cover)
(SPDF Feed Sensor)
4.Replacement and Adjustment
