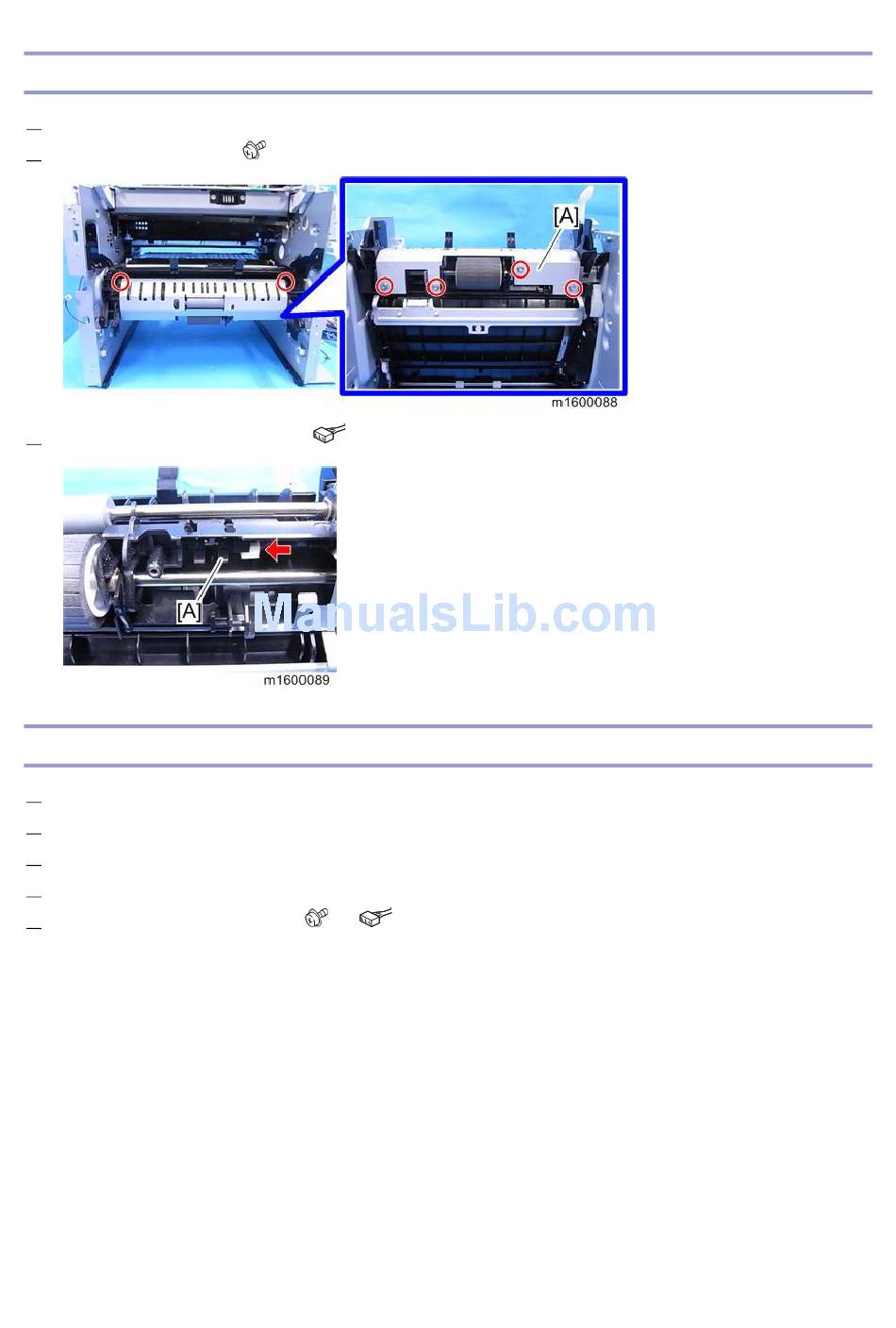

Paper End Sensor; Bypass Feed Unit - Ricoh M0A0 Service Manual

4.Replacement and Adjustment

Paper End Sensor

1.
Remove the bypass feed unit.
2.
Remove the bracket [A]. (
3.
Remove the paper end sensor [A]. (

Bypass Feed Unit

1. Remove the front cover.
2.
Remove the left cover.
3.
Remove the right cover.
4.
Remove the bypass bottom plate clutch.
5.
Remove the bypass feed unit [A]. (
134
(Bypass Feed Unit)
x6)
x1, Hook)
(Front Cover Unit)
(Left Cover)
(Right Cover)
(Bypass Bottom Plate
x5,
Clutch)
x2)
