Lcd - Ricoh M0A0 Service Manual

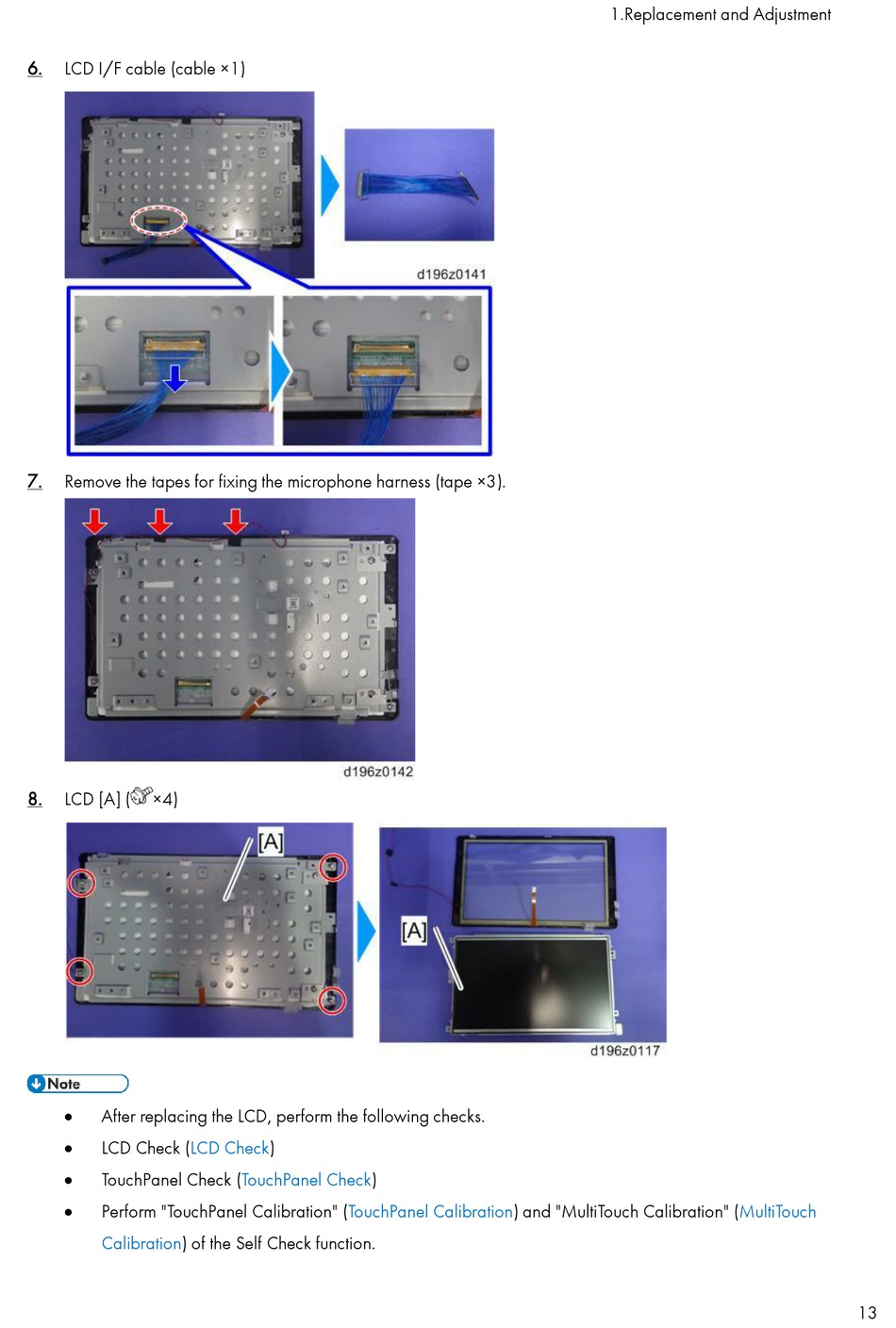

6. LCD I/F cable (cable ×1)
7.
Remove the tapes for fixing the microphone harness (tape ×3).
8.
LCD [A] ( ×4)
 After replacing the LCD, perform the following checks.

LCD Check

(LCD


TouchPanel Check

Perform "TouchPanel Calibration"
Calibration) of the Self Check function.
Check)
(TouchPanel Check)
(TouchPanel Calibration) and "MultiTouch Calibration"
1.Replacement and Adjustment
(MultiTouch
13
