Paper Size Detection

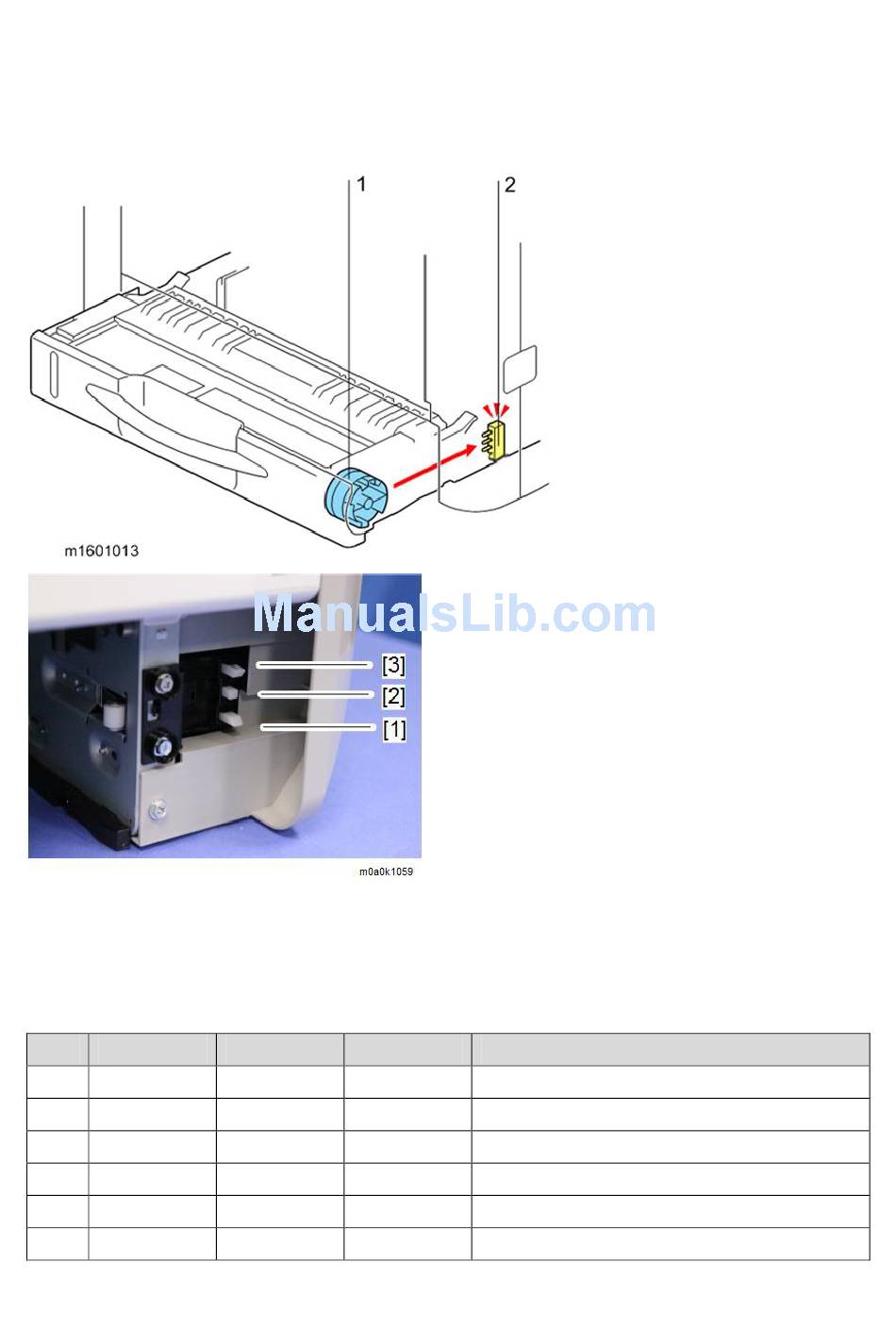

The paper size is detected by a combination of three switches built into the Paper Size Switch [2]. The switches are
operated by the Paper Size Dial [1] located on the right side of the Paper Feed Tray.
1. SW1
2. SW2
3. SW3
Paper size detection combinations (L: Switch is pressed)
SW 1
1 L
2 L
3 H
4 H
5 L
6 L
SW 2 SW 3
L L
H L
L L
H L
L H
H H
Paper Size
A4 SEF
A5 SEF
A6 LEF
Legal SEF
Letter SEF
-
