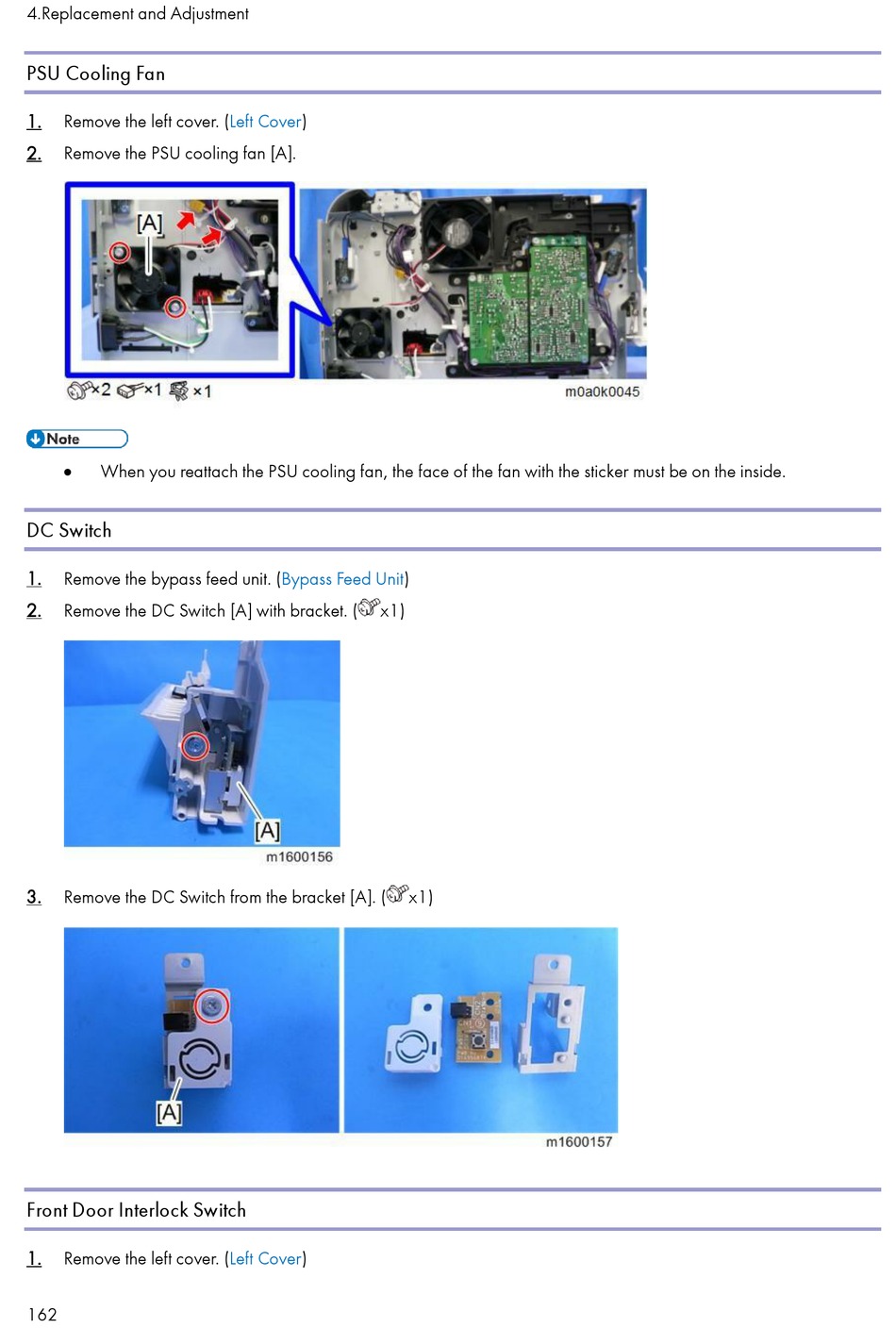

4.Replacement and Adjustment

PSU Cooling Fan

1.
Remove the left cover.
2.
Remove the PSU cooling fan [A].

When you reattach the PSU cooling fan, the face of the fan with the sticker must be on the inside.

DC Switch

1.
Remove the bypass feed unit.
2.
Remove the DC Switch [A] with bracket. (
3.
Remove the DC Switch from the bracket [A]. (

Front Door Interlock Switch

1.
Remove the left cover.
162
(Left Cover)
(Bypass Feed Unit)
x1)
(Left Cover)
x1)
