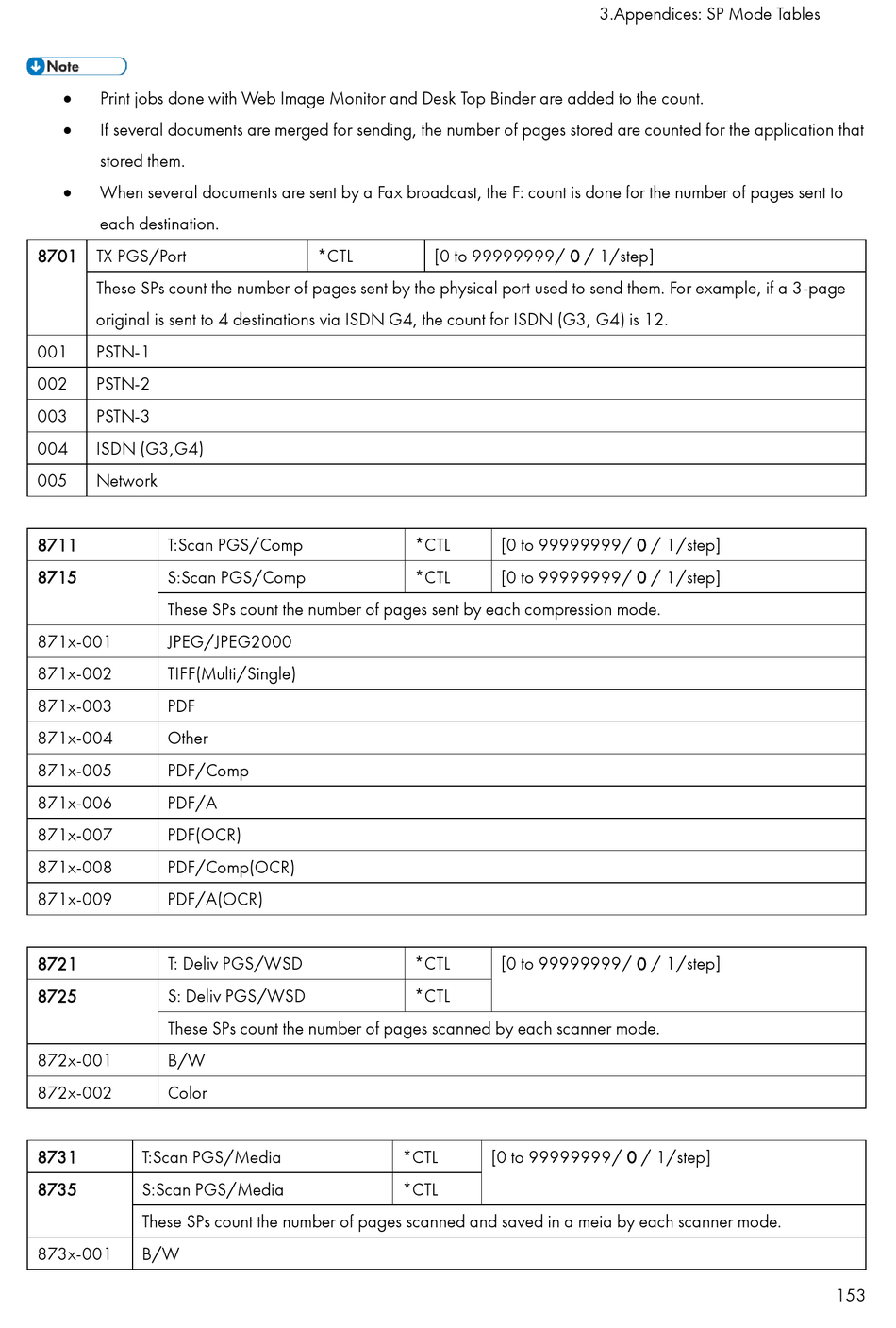

Ricoh M0A0 Service Manual page 521


Print jobs done with Web Image Monitor and Desk Top Binder are added to the count.

If several documents are merged for sending, the number of pages stored are counted for the application that
stored them.

When several documents are sent by a Fax broadcast, the F: count is done for the number of pages sent to
each destination.
8701 TX PGS/Port
These SPs count the number of pages sent by the physical port used to send them. For example, if a 3-page
original is sent to 4 destinations via ISDN G4, the count for ISDN (G3, G4) is 12.
001 PSTN-1
002 PSTN-2
003 PSTN-3
004 ISDN (G3,G4)
005 Network
8711 T:Scan PGS/Comp
8715 S:Scan PGS/Comp
These SPs count the number of pages sent by each compression mode.
871x-001 JPEG/JPEG2000
871x-002 TIFF(Multi/Single)
871x-003 PDF
871x-004 Other
871x-005 PDF/Comp
871x-006 PDF/A
871x-007 PDF(OCR)
871x-008 PDF/Comp(OCR)
871x-009 PDF/A(OCR)
8721 T: Deliv PGS/WSD
8725 S: Deliv PGS/WSD
These SPs count the number of pages scanned by each scanner mode.
872x-001 B/W
872x-002 Color
8731 T:Scan PGS/Media
8735 S:Scan PGS/Media
These SPs count the number of pages scanned and saved in a meia by each scanner mode.
873x-001 B/W
*CTL [0 to 99999999/ 0 / 1/step]
*CTL
*CTL
*CTL
*CTL
*CTL
*CTL
3.Appendices: SP Mode Tables
[0 to 99999999/ 0 / 1/step]
[0 to 99999999/ 0 / 1/step]
[0 to 99999999/ 0 / 1/step]
[0 to 99999999/ 0 / 1/step]
153
