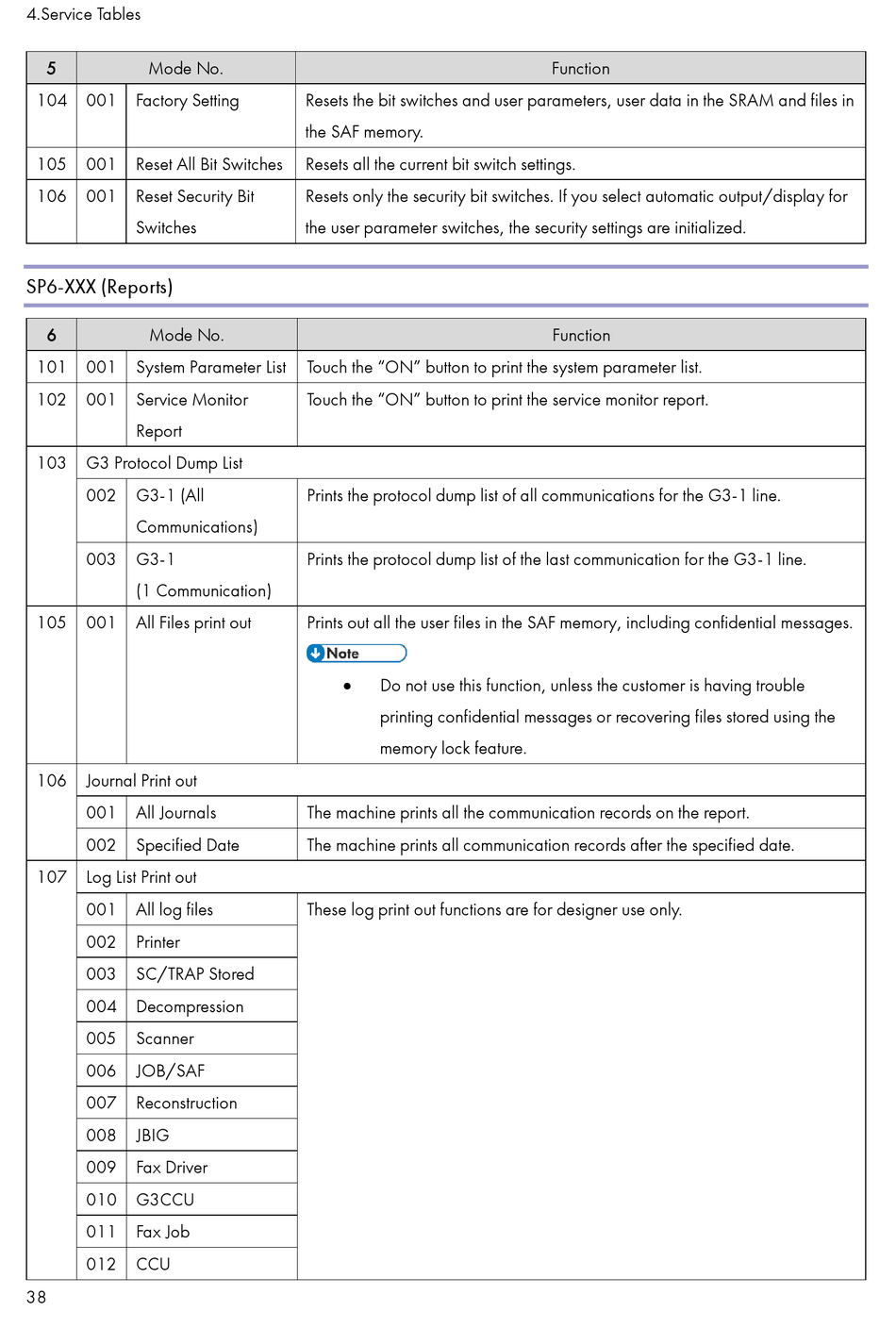

4.Service Tables
5 Mode No.
104 001 Factory Setting
105 001 Reset All Bit Switches
106 001 Reset Security Bit
Switches

SP6-XXX (Reports)

6 Mode No.
101 001 System Parameter List
102 001 Service Monitor
Report
103 G3 Protocol Dump List
002 G3-1 (All
Communications)
003 G3-1
(1 Communication)
105 001 All Files print out
106 Journal Print out
001 All Journals
002 Specified Date
107 Log List Print out
001 All log files
002 Printer
003 SC/TRAP Stored
004 Decompression
005 Scanner
006 JOB/SAF
007 Reconstruction
008 JBIG
009 Fax Driver
010 G3CCU
011 Fax Job
012 CCU
38
Resets the bit switches and user parameters, user data in the SRAM and files in
the SAF memory.
Resets all the current bit switch settings.
Resets only the security bit switches. If you select automatic output/display for
the user parameter switches, the security settings are initialized.
Touch the "ON" button to print the system parameter list.
Touch the "ON" button to print the service monitor report.
Prints the protocol dump list of all communications for the G3-1 line.
Prints the protocol dump list of the last communication for the G3-1 line.
Prints out all the user files in the SAF memory, including confidential messages.

Do not use this function, unless the customer is having trouble
printing confidential messages or recovering files stored using the
memory lock feature.
The machine prints all the communication records on the report.
The machine prints all communication records after the specified date.
These log print out functions are for designer use only.
