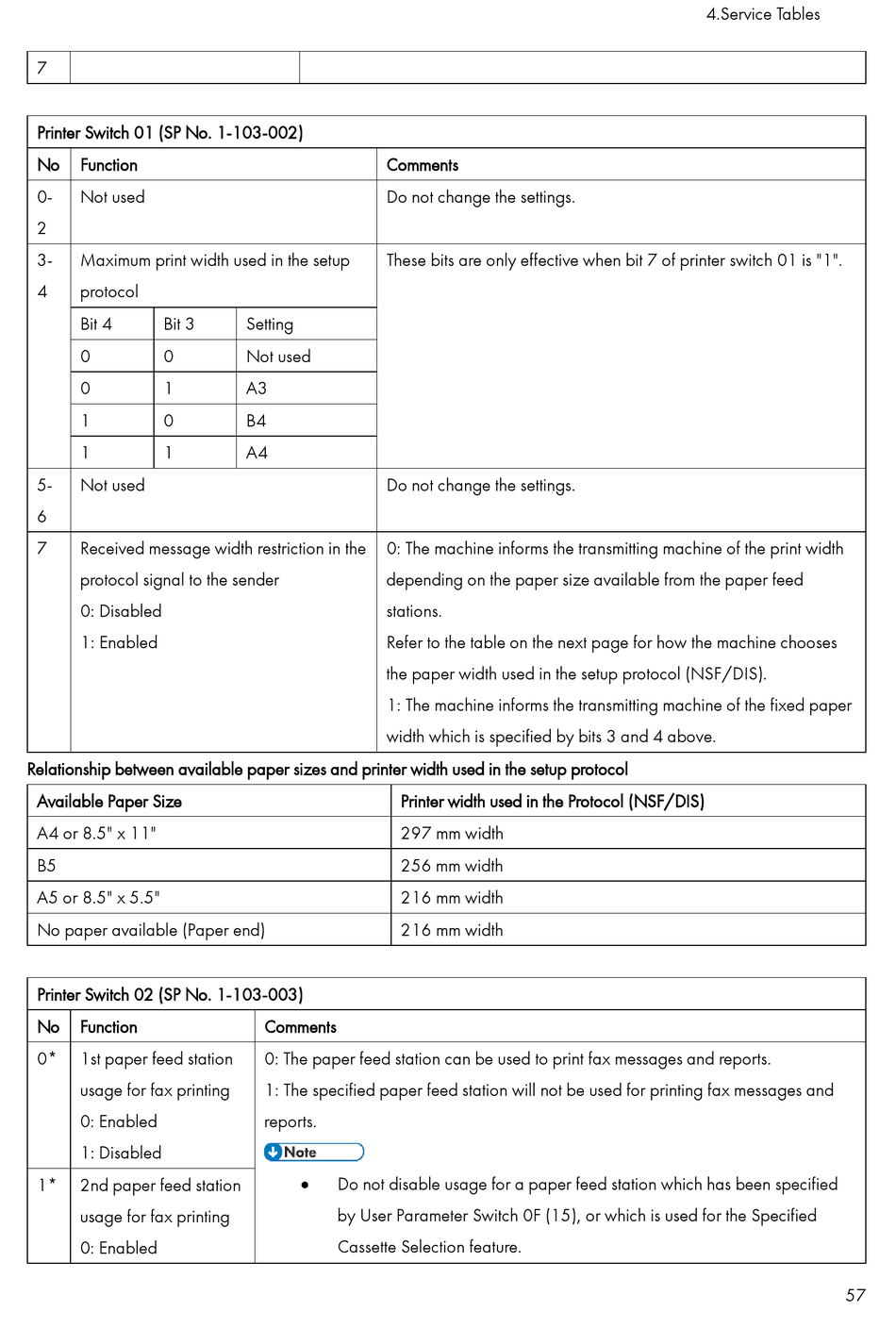

Printer Switch 01 (SP No. 1-103-002)
No Function
0- Not used
2
3- Maximum print width used in the setup
4 protocol
Bit 4 Bit 3
0 0
0 1
1 0
1 1
5- Not used
6
7 Received message width restriction in the
protocol signal to the sender
0: Disabled
1: Enabled
Relationship between available paper sizes and printer width used in the setup protocol
Available Paper Size
A4 or 8.5" x 11"
B5
A5 or 8.5" x 5.5"
No paper available (Paper end)
Printer Switch 02 (SP No. 1-103-003)
No Function
0* 1st paper feed station
usage for fax printing
0: Enabled
1: Disabled
1* 2nd paper feed station
usage for fax printing
0: Enabled
Comments
Do not change the settings.
These bits are only effective when bit 7 of printer switch 01 is "1".
Setting
Not used
A3
B4
A4
Do not change the settings.
0: The machine informs the transmitting machine of the print width
depending on the paper size available from the paper feed
stations.
Refer to the table on the next page for how the machine chooses
the paper width used in the setup protocol (NSF/DIS).
1: The machine informs the transmitting machine of the fixed paper
width which is specified by bits 3 and 4 above.
Printer width used in the Protocol (NSF/DIS)
297 mm width
256 mm width
216 mm width
216 mm width
Comments
0: The paper feed station can be used to print fax messages and reports.
1: The specified paper feed station will not be used for printing fax messages and
reports.

Do not disable usage for a paper feed station which has been specified
by User Parameter Switch 0F (15), or which is used for the Specified
Cassette Selection feature.
