Merlin PLUS User Manual v2.0

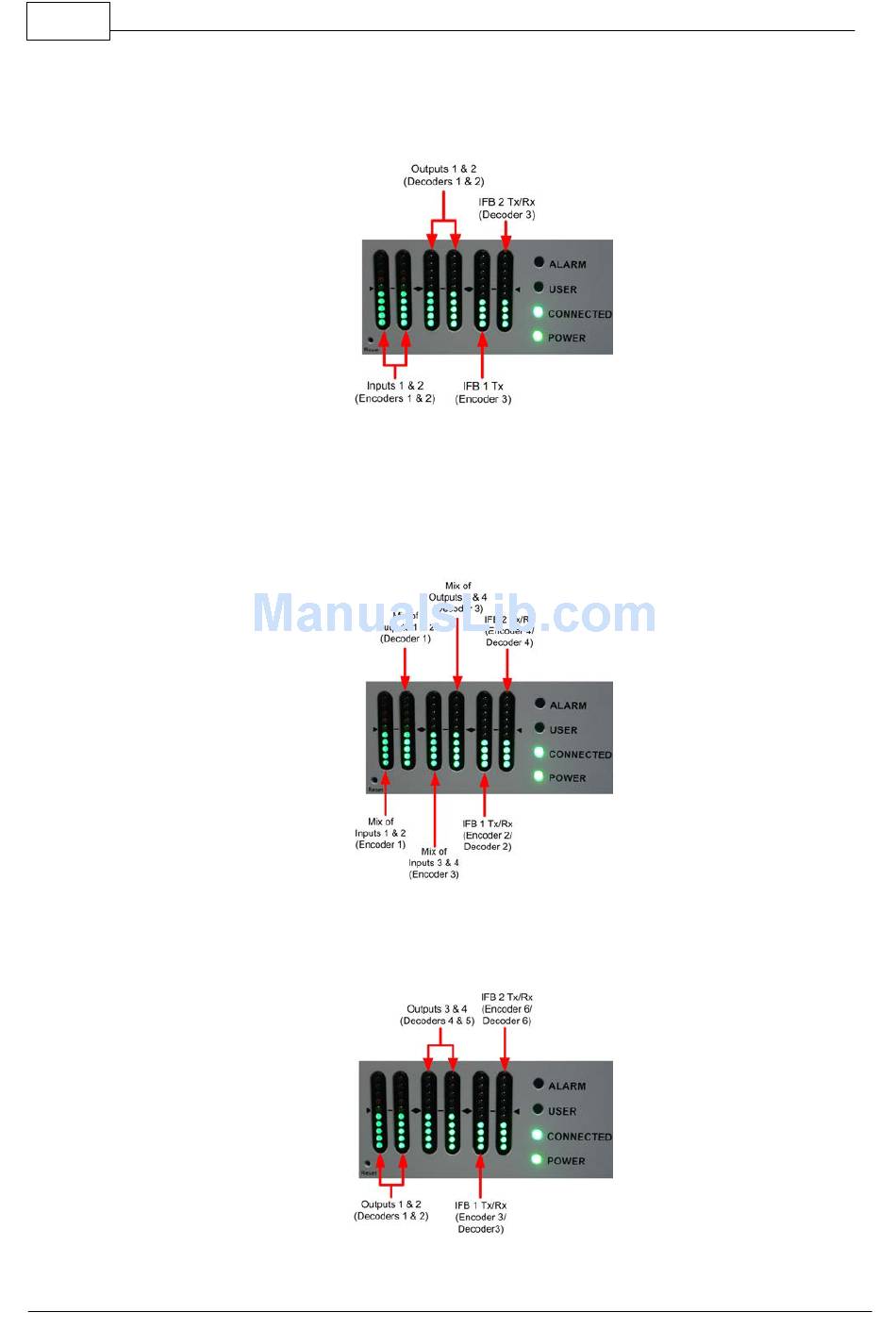

1 x Stereo Peer-to-Peer + IFB Metering
This program transmits a bidirectional stereo audio stream and a separate bidirectional mono
IFB communications audio stream. Incoming and outgoing audio for both audio streams is
displayed on the PPMs.
2 x Mono Peer-to-Peer + IFB Metering
This program transmits two bidirectional mono audio streams and two bidirectional mono IFB
audio streams. Incoming and outgoing audio for both audio streams is displayed on the PPMs.
A mix of inputs 1 and 2 is displayed on PPM1 and a mix of inputs 3 and 4 is displayed on
PPM3. PPMs 2 & 4 display each return audio stream. PPM5 and PPM6 display a mix of IFB
audio in/out for each IFB audio stream.
2 x Stereo Peer-to-Peer + IFB Metering
This program transmits two bidirectional stereo audio streams and two bidirectional mono IFB
audio streams. Decoder audio for both stereo audio streams is displayed on PPMs 1-4. PPM5
and PPM6 display a mix of IFB audio in/out for each IFB audio stream.
© Tieline Pty. Ltd. 2017
