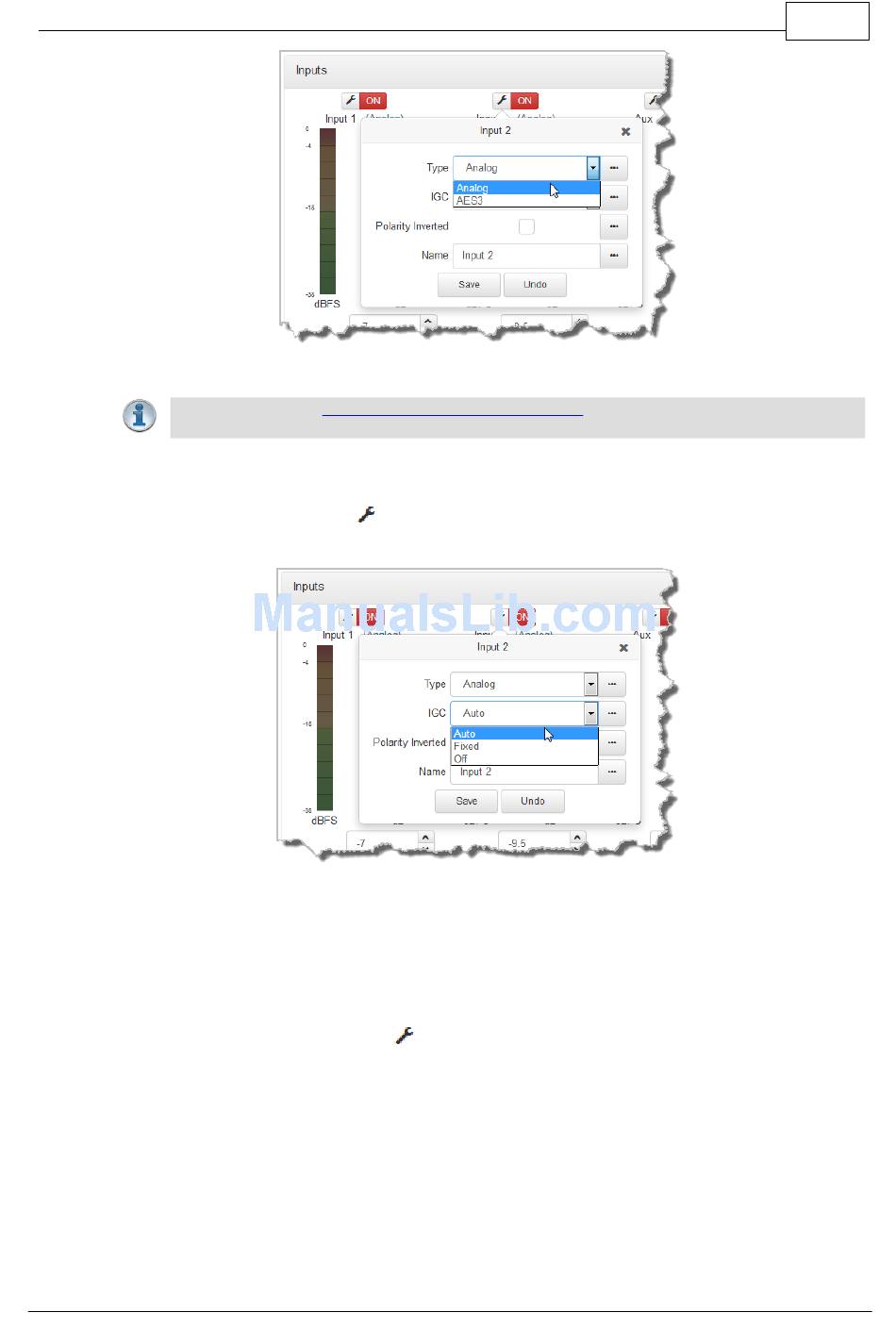

Tieline Merlin PLUS User Manual page 141

3. Click Save to confirm the new setting.
Important Notes:
digital inputs and outputs.
Adjusting IGC
1. Click the Input Settings
2. Select IGC (Intelligent Gain Control) and then Auto, Fixed or Off as required.
3. Click Save to confirm the new setting.
Invert Polarity
Select the Polarity Inverted check-box to reverse the polarity of an analog or digital input. This
is useful if two inputs are out of phase with each other.
1. Click the Input Settings
2. Click to select the Polarity inverted check-box.
© Tieline Pty. Ltd. 2017
See Configuring AES3 Input Audio
symbol.
symbol on the input you want to adjust.
Merlin PLUS User Manual v2.0
for more information about the
141
