Feature
1 PPM Mode
2 PPM Meters
3 Close button
Control Menu

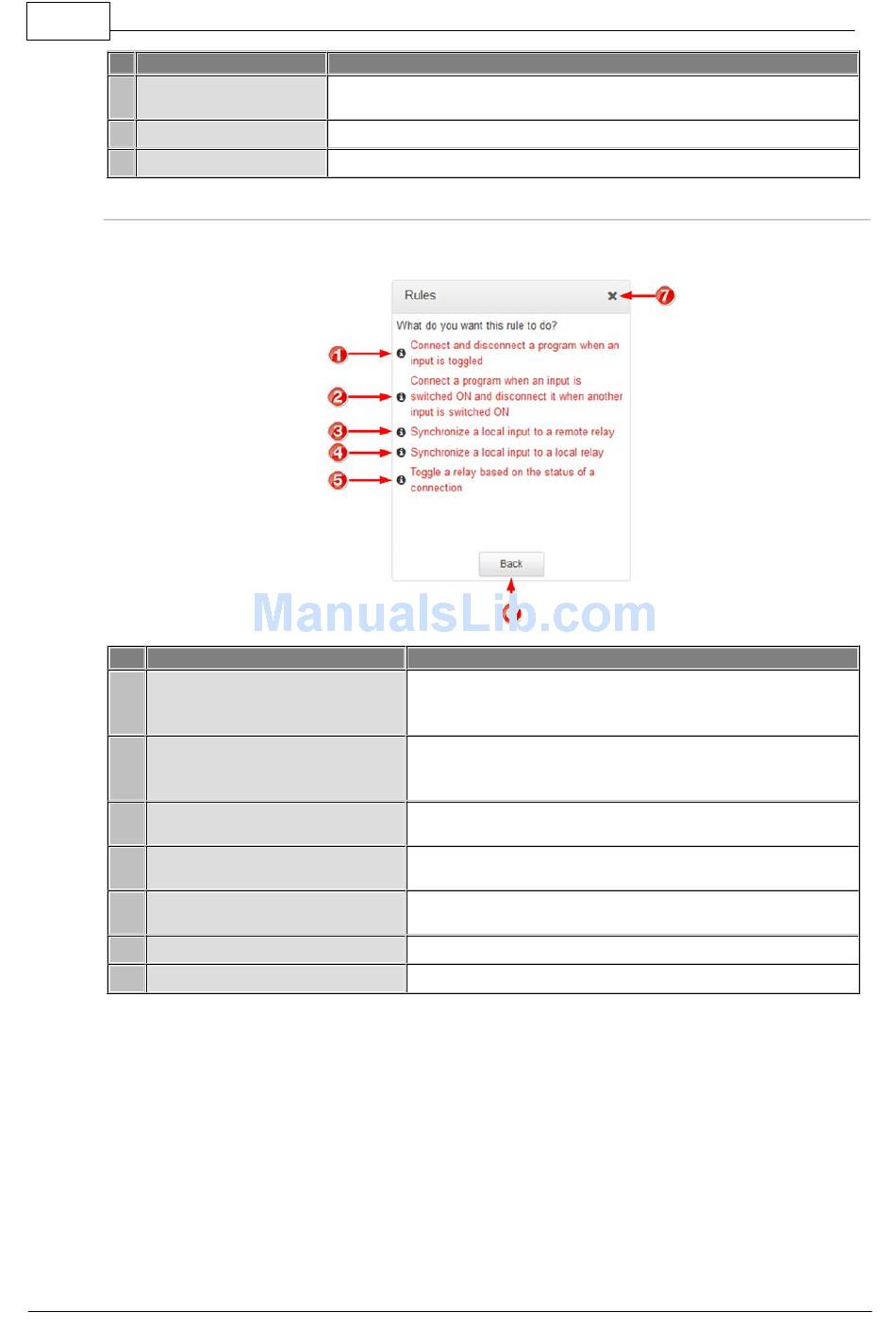

Rules Panel
Rule
1 Connect
program
toggled
2 Connect
switched ON; Disconnect when
another input is switched ON
3 Synchronize a local relay input
with a remote relay output
4 Synchronize a local relay input
with a local relay output
5 Toggle a relay based on a
connection's status
6 Back / Add New Rule button
7 Close button
Description
Select a preferred PPM meter mode. Options include Program
Default, Input, Decoder, HP Monitor and Input / Output
6 PPM meters using dBFS metering
Click to close the panel.
and disconnect a
when an input is
when an input is
Description
Click to configure connection and disconnection by
toggling an input.
Click to configure connection and disconnection after
different relay inputs are switched ON.
Click to configure a local relay input to synchronize with
the state of a remote relay output.
Click to configure a local relay input to synchronize with
the state of a local relay output.
Click to configure a relay to toggle based on connection
status.
Click to add a new rule, or exit the rule creation function.
Click to close the panel.
