Alarms Panels: Configure & Monitor Alarms

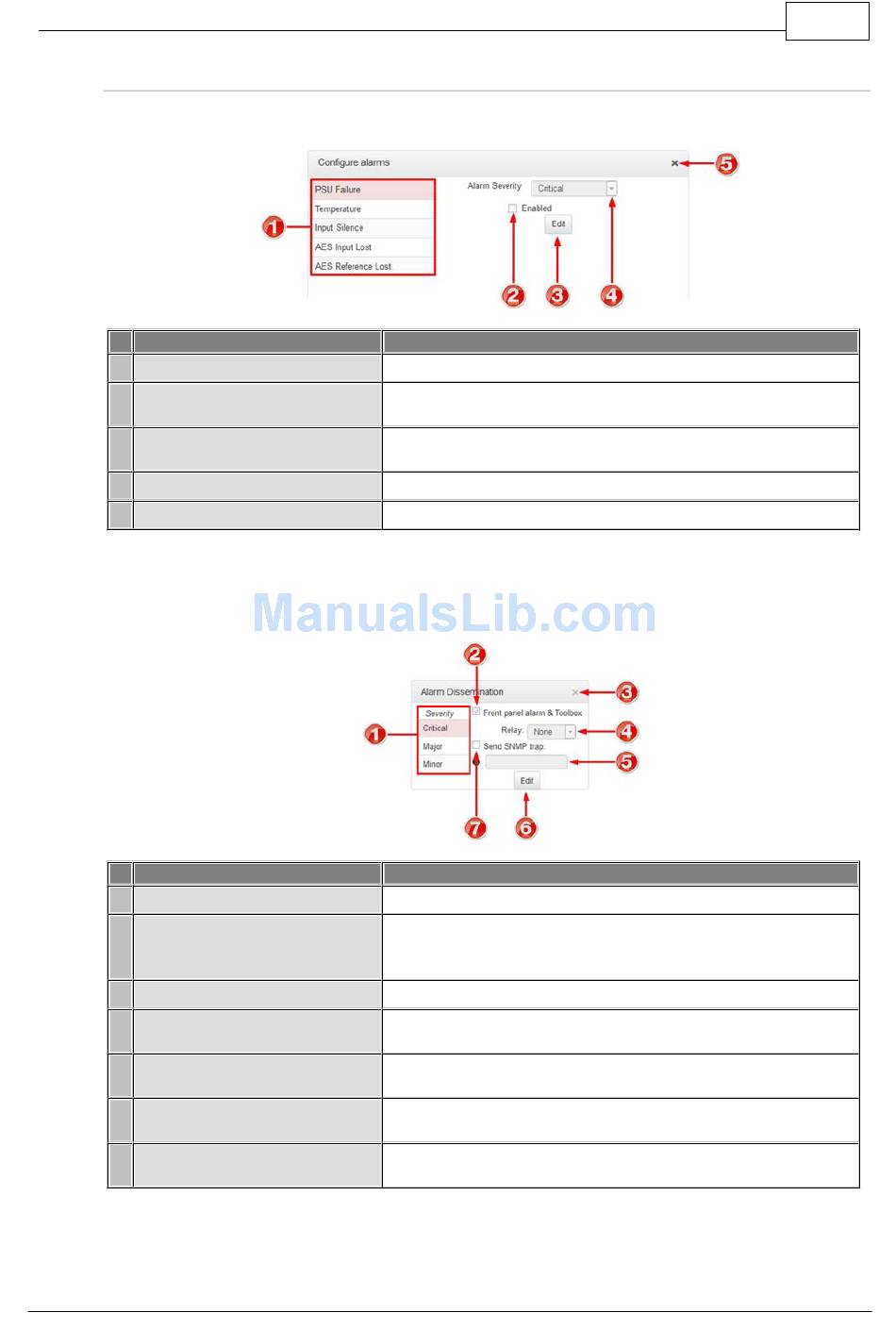

Configure Alarms Panel
Feature
1 List of alarm types
2 Enable Alarm check-box
3 Edit / Save button
4 Alarm Severity Setting
5 Close button
Alarm Dissemination Panel
Alerts for each alarm severity level are configured using the Alarm Dissemination panel.
Feature
1 List of alarm severity levels
2 Front
Toolbox check-box
3 Close button
4 Relay drop-down selection
5 SNMP Trap Target text-box
6 Edit / Save button
7 Send SNMP trap check-box
© Tieline Pty. Ltd. 2017
panel alarm &
Merlin PLUS User Manual v2.0
Description
Click to select an alarm type to configure.
Click the Enabled check-box to enable the currently
selected alarm.
Click to edit an alarm, or save configured alarm settings
when in edit mode.
Click the drop-down arrow to select an alarm severity setting.
Click to close the panel
Description
Click to select an alarm severity level to configure it.
Select the check-box (default enabled) to deliver front panel
ALARM LED notifications and HTML5 Toolbox Web-GUI
alarm notifications.
Click to close the panel.
Click the drop-down arrow to select a relay to open when an
alarm using the current severity level is activated.
Click in the text box in edit mode to enter the SNMP trap
target for alarms using the currently selected severity level.
Click to edit alarm dissemination settings, or save configured
settings when in edit mode.
Select the check-box to enable SNMP traps to be sent (for
alarms using the selected severity level).
