Important Note: See
and see

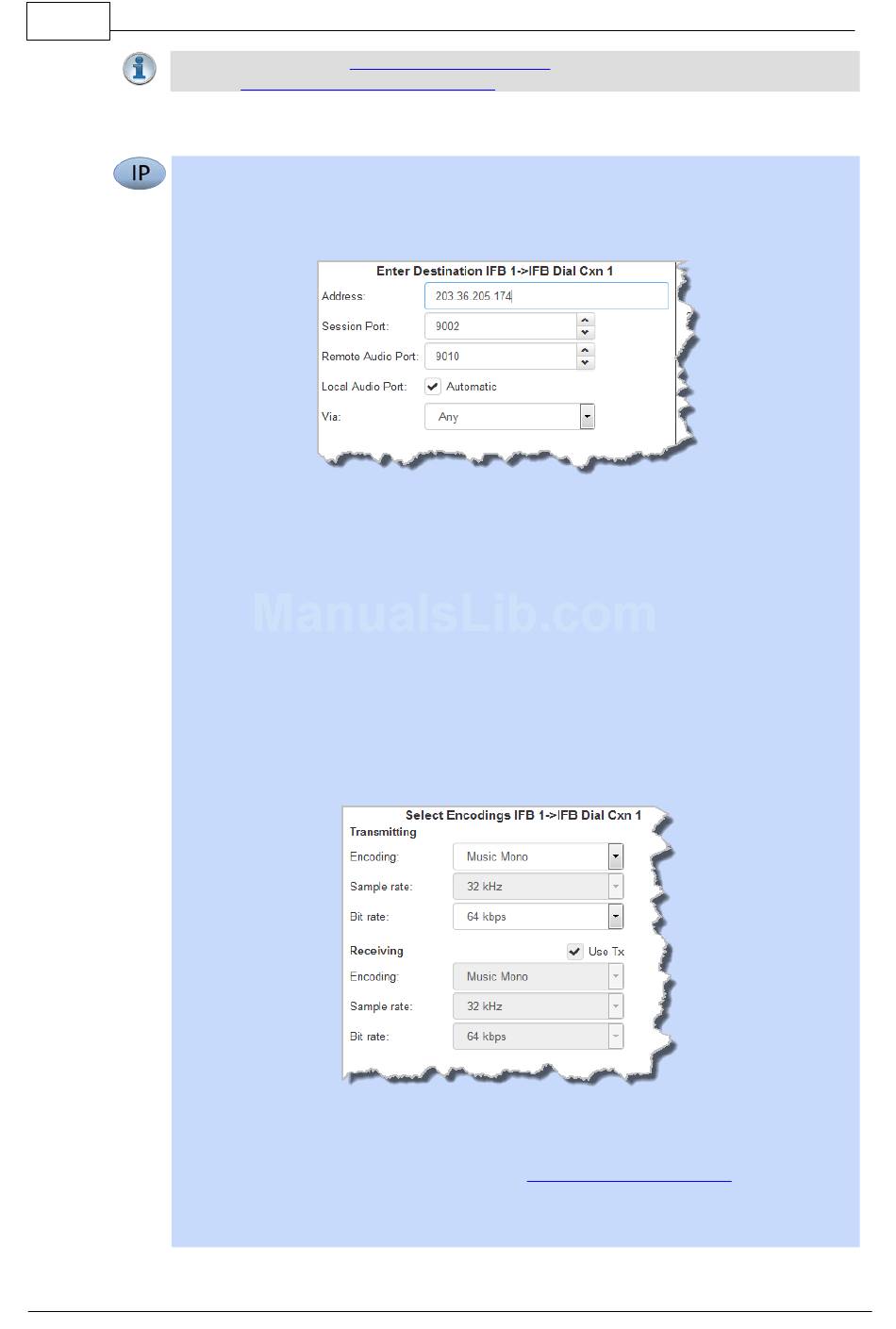

4. Configure destination codec dialing and encoding settings:
For IP connections configure the IP address, ports, and then specify which streaming
interface is used to dial this connection, e.g. Primary (port ETH1) or Secondary (port
ETH2). Note: By default Any will select ETH1 if it is available and ETH2 if it is
unavailable.
Click Save Program to save the program with the default algorithm, jitter and FEC
settings which are physically entered in the codec. Alternatively, click Next to specify
individual algorithm, jitter buffer and FEC settings and configure a backup connection or
SmartStream PLUS for this audio stream (recommended).
Note: The default Remote Audio Port is 9010 for this IP audio stream. If you connect
multiple remote codecs simultaneously to a Merlin PLUS codec at the studio (when
creating 2 x Mono or Stereo Peer-to-Peer + IFB connections), use Remote Audio Port
9030 to configure the second IFB connection at the studio. IFB audio over this audio
stream connection will be routed via audio input/output 6 on the studio Merlin PLUS
codec.
Click the drop-down arrows on the right-hand side of each text box to adjust the
Encoding
For IP connections click to configure:
·
·
·
RS232 Data Configuration
Enabling Relays and RS232 Data
,
Sample rate and Bit rate options.
Auto Jitter Adapt and the preferred auto jitter setting using the drop-down arrow for
Buffer priority. It is also possible to configure the Minimum depth and Maximum
depth of jitter over the connection. See
Alternatively, select a Fixed Buffer Level and enter the Jitter Depth, which must
be between 12ms and 5000ms depending on the algorithm you select.
Local and Remote FEC settings if required.
for detailed information on RS232 data
for more information on relay operations.
Configuring the Jitter Buffer for more details.
