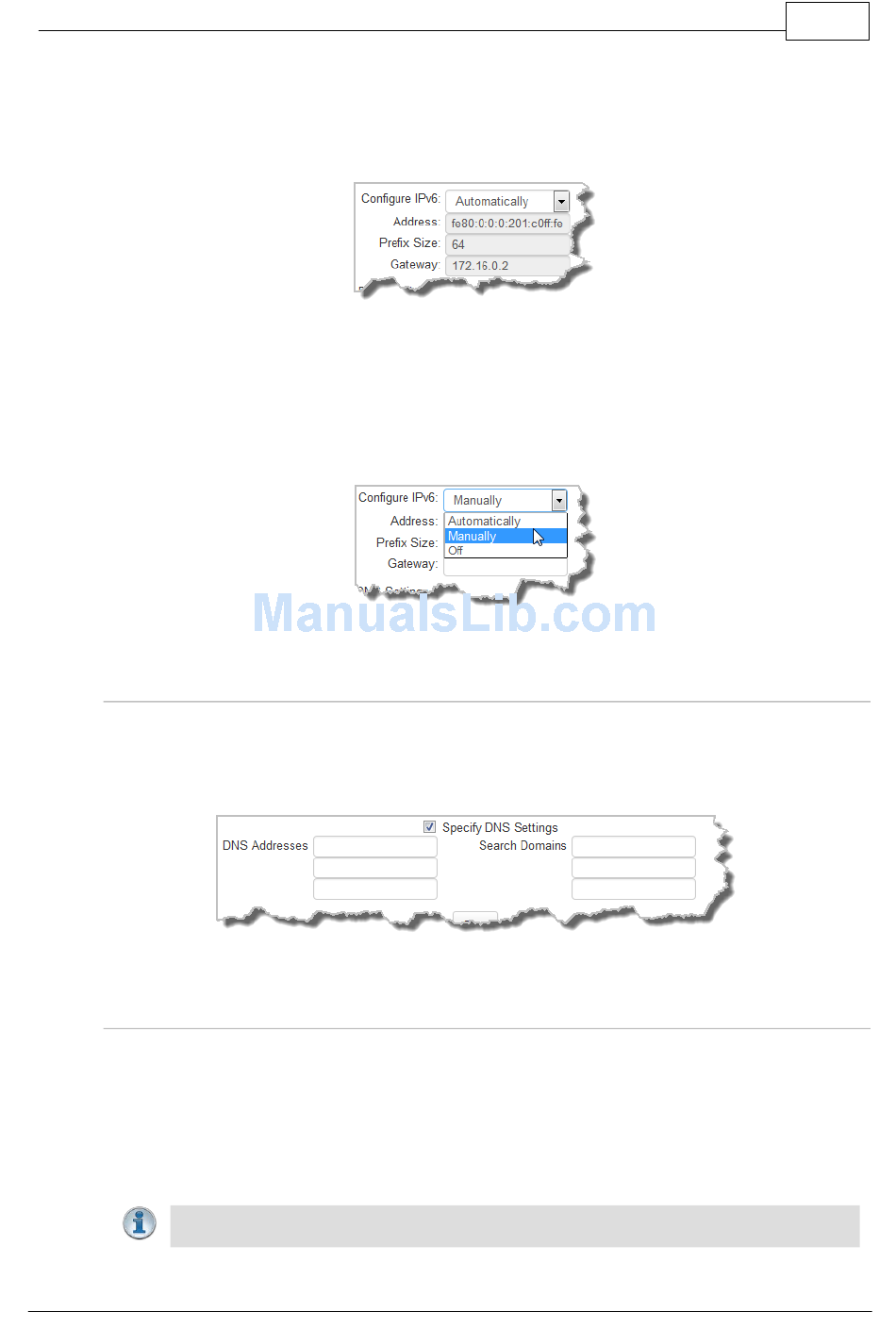

Auto Address Assignment
1. Click the Edit button in the Network panel to configure settings.
2. By default the codec is programmed for connecting to an IPv6 router which automatically
allocates IPv6 address details, as displayed in the following example.
3. Click Save to store all configuration settings.
Manual IPv6 Address Assignment
1. Click the Edit button in the Network panel to configure settings.
2. To configure IPv6 address details into the codec manually, select Manually and enter
3. Click Save to store all configuration settings.
Specifying DNS Settings
It is possible to specify Domain Name Server (DNS) settings to allow easy look up of codecs within
the specified DNS Addresses or Domains.
1. Click the Edit button in the Network panel to configure settings.
2. Click Save to store all configuration settings.
IP Via Mapping
When dialing over IP you can select the preferred interface to use when establishing a connection.
By default Any is selected, which means the first available interface is used to dial a connection.
The default Via interfaces in order of use when available are:
1. ETH1 Ethernet port (default Primary Via interface)
2. ETH2 Ethernet port (default Secondary Via interface)
3. Wi-Fi (default Tertiary Via interface)
Important Note: VLAN interfaces have features similar to physical Ethernet interfaces.
However, your network administrator will need to configure VLAN support throughout your
© Tieline Pty. Ltd. 2017
details into the Address, Prefix and Gateway text boxes.
Merlin PLUS User Manual v2.0
