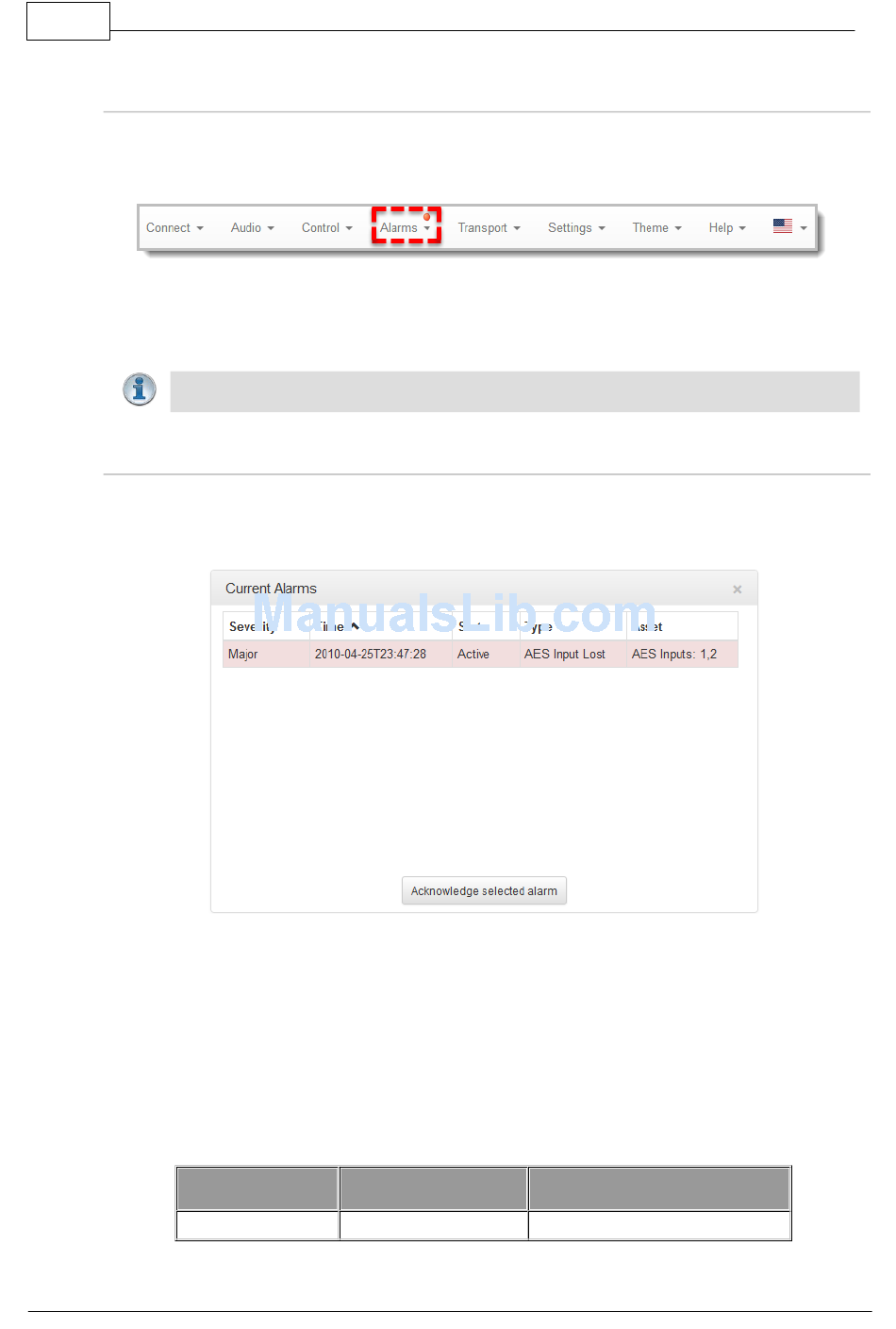

Viewing Current Alarms
Active alarms are indicated by:
1. The red Alarm Symbol flashing in the toolbar of the HTML5 Toolbox Web-GUI screen.
2. All new alarms being listed in the Current Alarms panel.
3. Other alerts as per Alarm Dissemination panel
4. The codec front panel ALARM LED flashing red.
Important Note: When a connection is active the front panel CONNECTED LED is
illuminated solid green. Illumination will ceases if a connection is lost.
Acknowledging Alarms
To acknowledge an alarm in the Current Alarms panel:
1. Click to select the alarm in the Current Alarms panel.
2. Click Acknowledge selected alarm.
After acknowledging the alarm:
1. The State will change from Active to Acknowledged.
2. The red Alarm Symbol will stop flashing but remain visible in the toolbar of the HTML5
Toolbox Web-GUI screen.
3. The codec front panel ALARM LED will stop flashing and illuminate solid red.
4. The state of other alerts may change, as per Alarm Dissemination panel settings.
Alarm State Front Panel Alarm
Active Flashing red
settings.
Web-GUI Alarm Symbol
LED
Flashing
