3. Check the Rule summary and click Create Rule to save the settings.

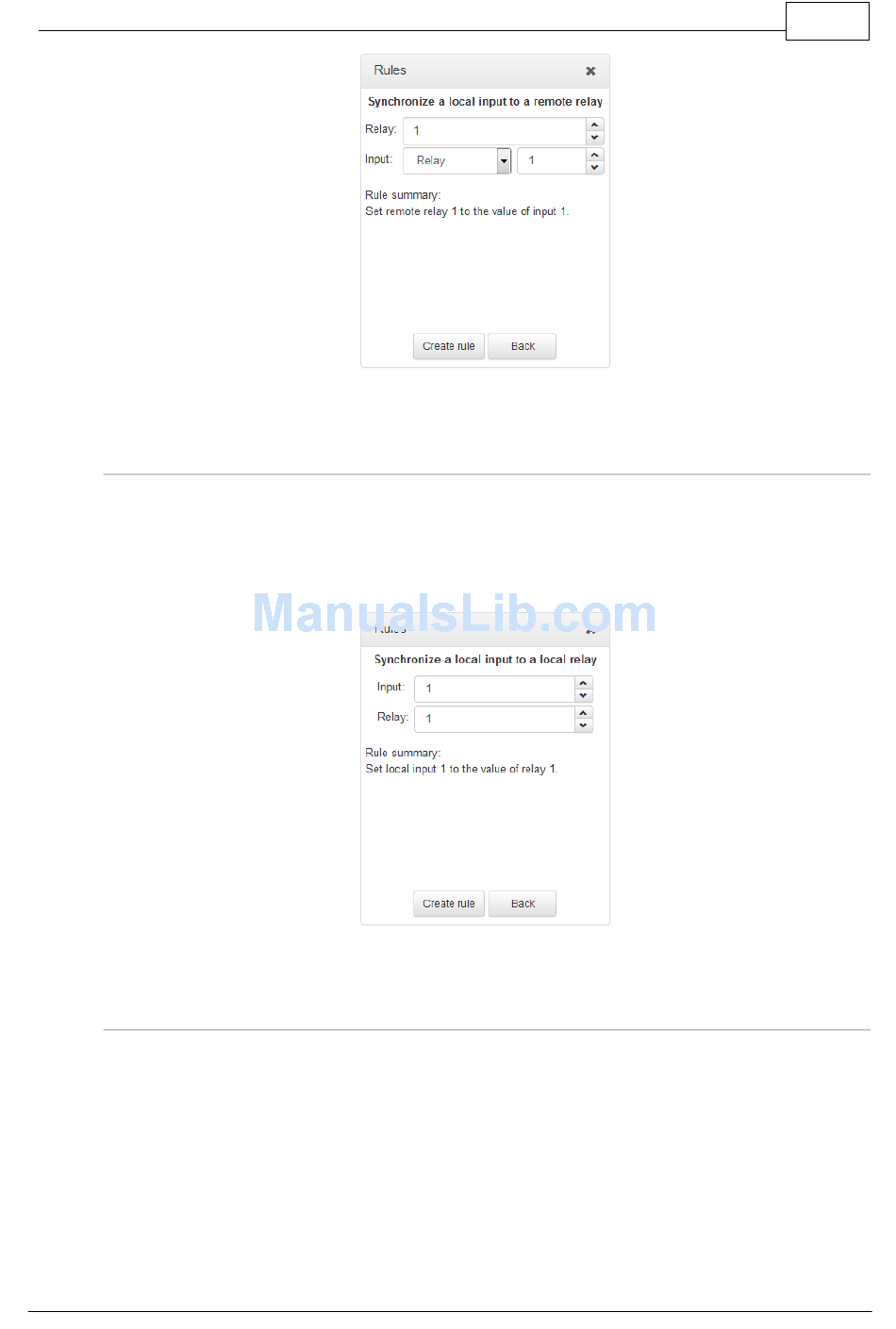

Rule 4: Synchronize a Local Input with a Local Relay Output
Use this rule allow a local codec's control port input to change the state of a local relay output.
1. Click the rule in the Rules panel titled Synchronize a local input to a local relay.
2. Click the drop-down arrow to select the local control port input used to control a local relay
output.
4. Check the Rule summary and click Create Rule to save the settings.
Rule 5: Toggle a Relay Output with each Change in Connection Status
This rule is used to toggle a codec's control port relay output each time a program connects and
disconnects.
1. Click the rule in the Rules panel titled Toggle a relay based on a connection's status.
2. Click the drop-down Relay arrow and select the relay output you want to toggle.
3. Click the drop-down Program arrow to select a specific program which will affect the relay
toggle function, or use the default setting whereby any program will toggle the relay output.
