Tieline Merlin PLUS User Manual page 174

174 Merlin PLUS User Manual v2.0

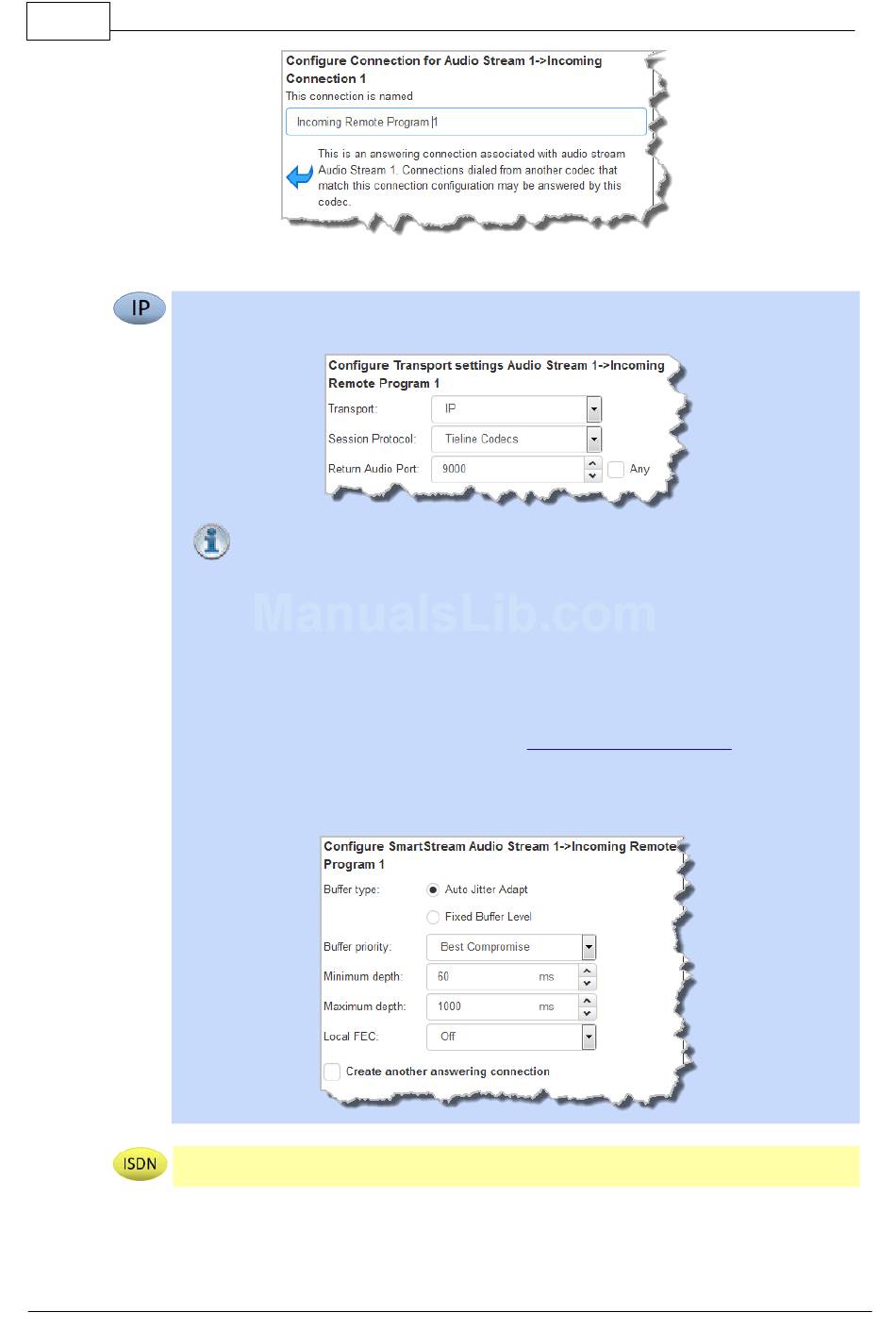

5. Configure the transport settings:
For IP click the drop-down Session Protocol menu and select Tieline Codecs and
ensure the Any check-box is not selected.
Click Next to specify individual algorithm, jitter buffer and FEC settings, or create another
answering connection. Click to configure:
·
·
·
ISDN settings are determined by ISDN module answering settings. For more details see
Configuring ISDN Answering.
Important Note: The Local Audio Port is the port used by the local codec to
receive audio from the remote codec. When Tieline Codecs is the Session
Protocol selected (using Tieline session data), the Local Audio Port is
automatically configured as UDP audio port 9000 by default for the first audio
stream. Click to deselect the Any check-box to adjust this setting.
Auto Jitter Adapt and the preferred auto jitter setting using the drop-down arrow for
Buffer priority. It is also possible to configure the Minimum depth and Maximum
depth of jitter over the connection. See
Alternatively, select a Fixed Buffer Level and enter the Jitter Depth, which must
be between 12ms and 5000ms depending on the algorithm you select.
Local FEC settings if required.
Configuring the Jitter Buffer for more details.
© Tieline Pty. Ltd. 2017
