Use firmware higher than 2.8.xx in the Bridge-IT, Genie and Merlin families of codecs to
enable auxiliary data.

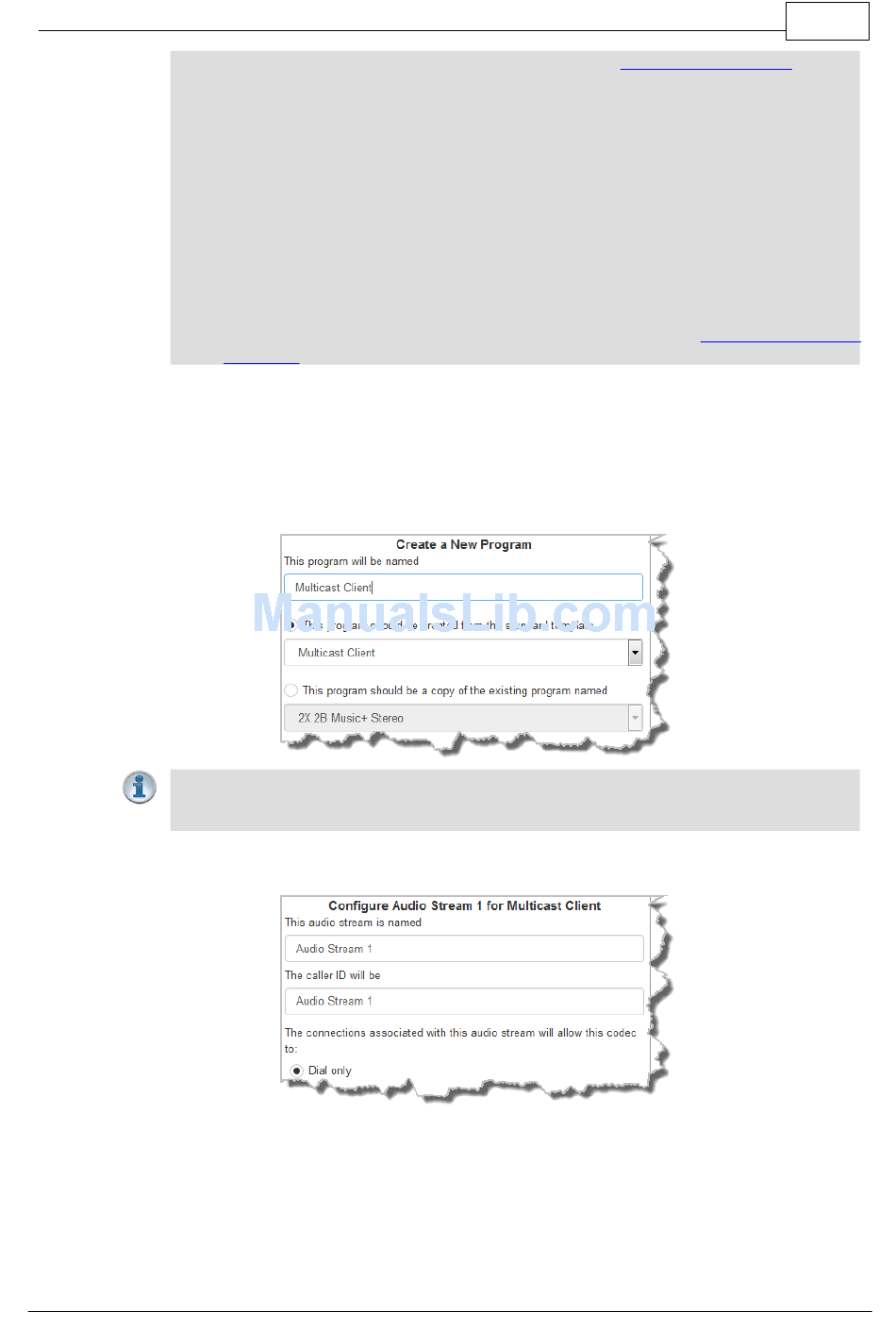

1. Open the HTML5 Toolbox Web-GUI and click Connect in the Menu Bar, then select Program
Manager to launch the Program Manager panel.
2. Click the New Program button to open the wizard and:
·
Click in the text box to name the new program.
·
Select Multicast Client to configure a multicast program, or if you want to use an
existing program as a template, select this option. Then click Next.
Important Notes: When you decide to use an existing program as a template, the new
program inherits all the settings of the template program and you can adjust these
settings as required by continuing through the program wizard.
3. Enter a name for the Audio Stream, then click Next.
4. This audio stream connection in the wizard will allow the codec to dial. Enter the name of the
connection in the text box, then click Next.
© Tieline Pty. Ltd. 2017
·
To learn more about programs see the section titled
·
Always dial the multicast server codec connection first before connecting multicast
client codecs.
·
Multicast client codecs will display return link quality (LQ) only. The Return reading
represents the audio being downloaded from the network locally. Multicast server
codecs do not display LQ readings.
·
The default UDP audio port setting is 9000 for the first multicast, 9010 for the
second multicast and 9020 for the third multicast. The client and server port settings
must match to receive an audio stream. E.g. if a client codec wishes to receive
multicast audio stream 2 then it must use audio port 9010.
·
It is not possible to connect to a G3 codec and receive multicast IP audio streams.
·
To copy multicast client programs onto multiple codecs see
Functions.
Merlin PLUS User Manual v2.0
About Program
199
Dialing.
Backup and Restore
