6

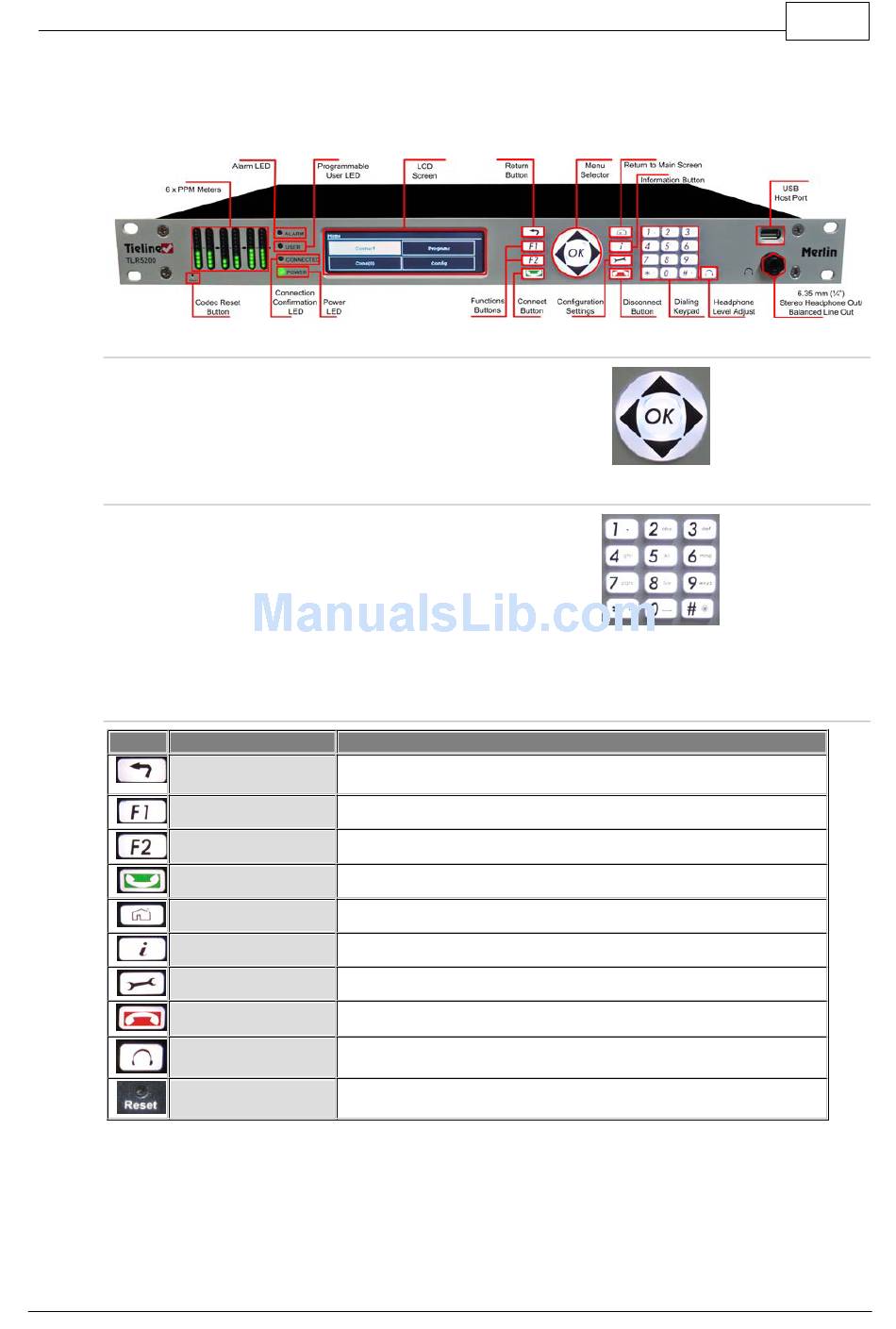

Merlin Front Panel Controls
The hardware front panel interface features menu navigation buttons, an LCD display with PPM
metering and a dialing keypad.
Navigation Buttons
The codec has four arrow shaped navigation
buttons for navigating codec menus and
adjusting levels, and an OK button for
selecting menu items.
Dialing Keypad
The keypad has alpha-numeric buttons, plus
star and hatch (pound) buttons, which can
be used to enter contact and program
information into the codec. Note: a virtual
keyboard appears for entering alphanumeric
characters in fields displayed on the codec
LCD SCREEN.
Operation Button Descriptions
Features
Return Button
Function Button 1
Function Button 2
Connect Button
Home Button
Information Button
Settings Button
Disconnect Button
Headphone Button
Reset Button
© Tieline Pty. Ltd. 2017
Operation Button Descriptions
Press to move back through menus & delete characters
Press to activate codec user functions
Press to activate codec user functions
Press to create an IP connection
Press to return to home screen
Press to view a help menu onscreen
Press to adjust codec settings
Press to end a connection
Press to adjust headphone audio levels
Press to reboot the codec
Merlin PLUS User Manual v2.0
15
