Detaching And Refitting The Conveying Unit - Kyocera TASKalfa 2551ci Service Manual

(2) Detaching and refitting the conveying unit

Procedures
1. Remove the MP tray.(See page 1-5-12)
2. Open the right cover 1.
3. Remove two screws and then remove
two straps.

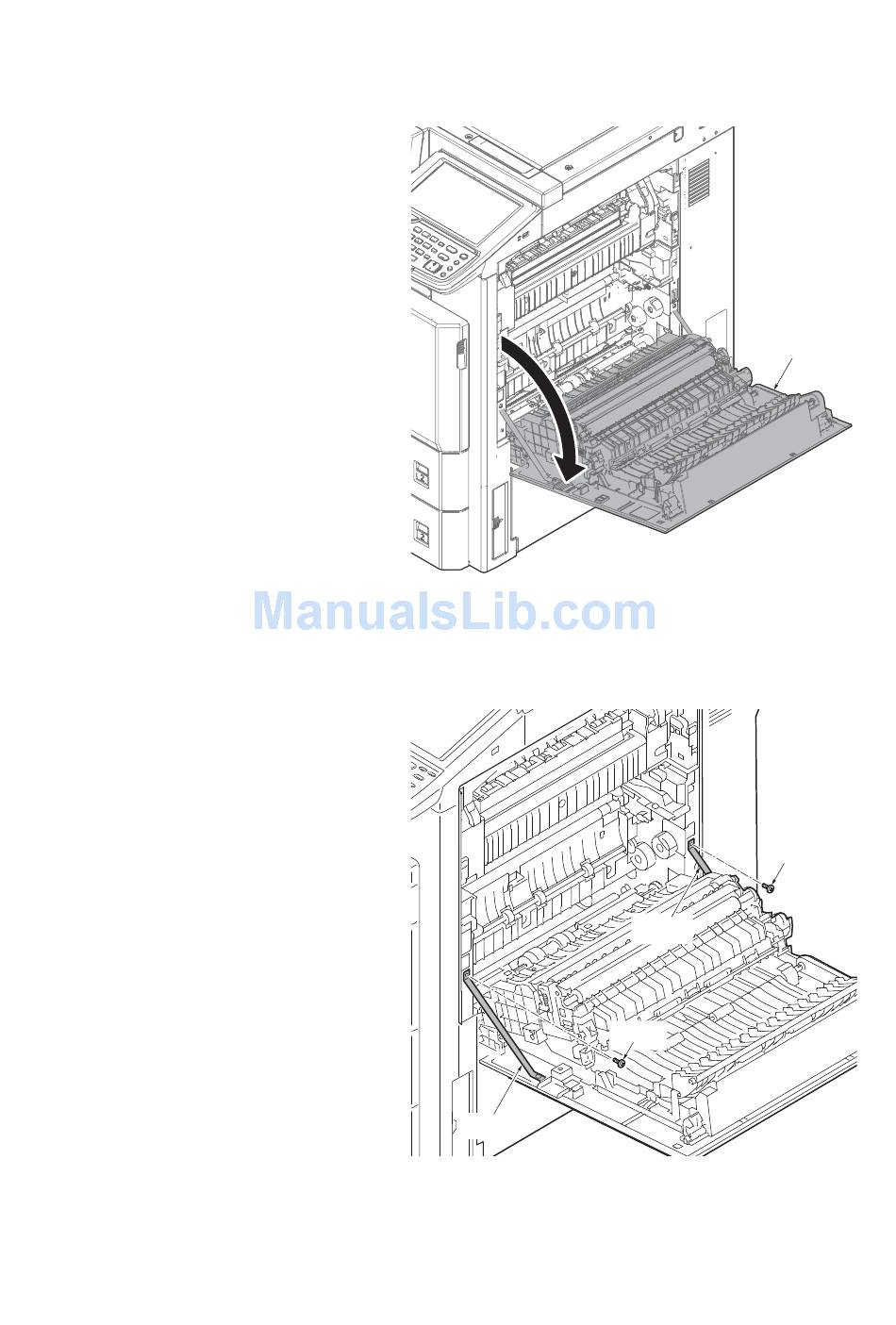

Figure 1-5-108
Strap
Figure 1-5-109
1-5-59
Right cover 1
Screw
Strap
Screw
2NP
