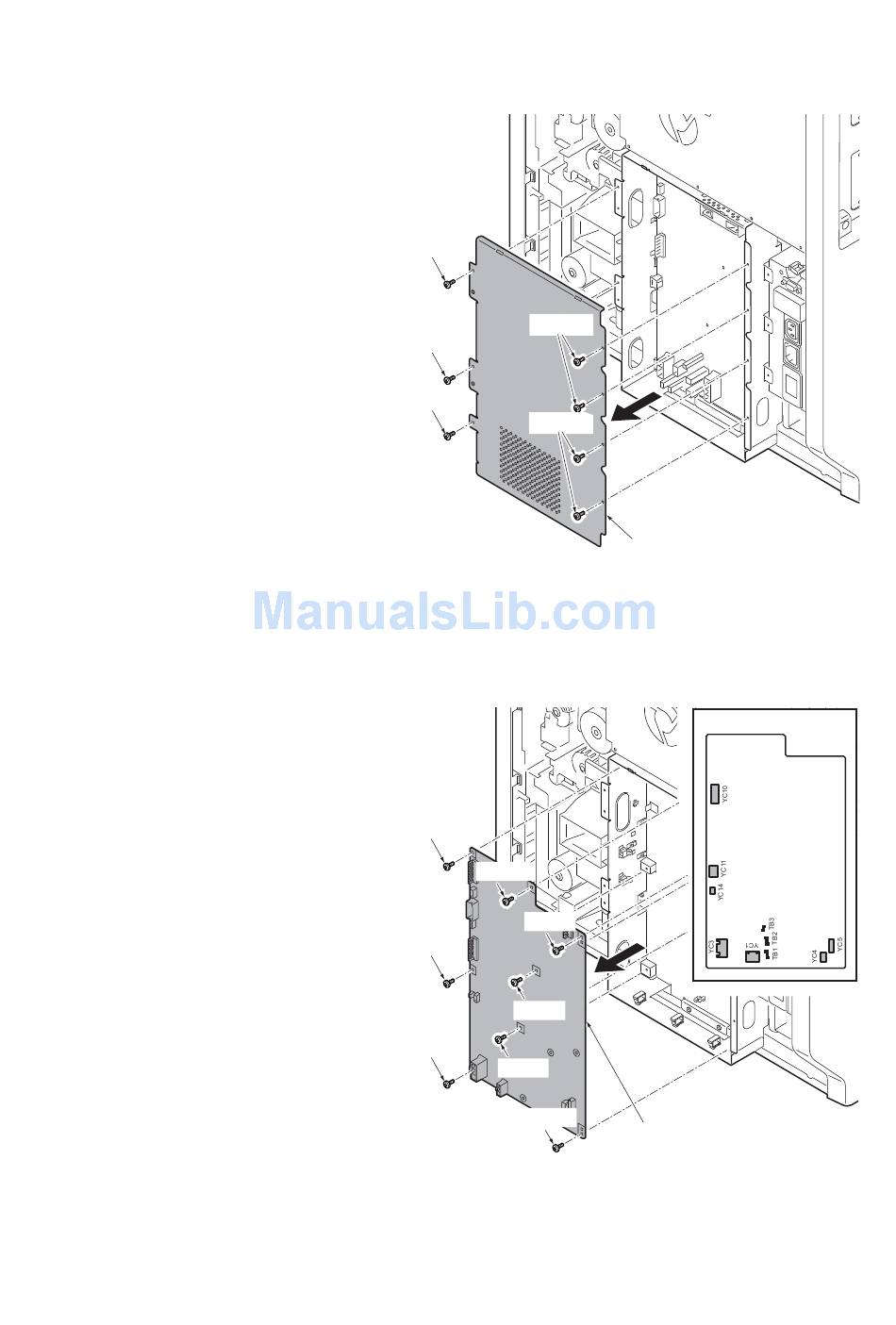

(4) Detaching and refitting the power source PWB

1. Remove the rear cover.

(See page 1-5-4)

2. Remove seven screws and then

remove the power source box cover.

3. Remove all connecters from the power

4. Remove eight screws and then remove

the power source PWB.

5. Check or replace the power source

PWB and refit all the removed parts.

Power source

Figure 1-5-96

PWB connector

Power source PWB

Figure 1-5-97
