1-5-7 Fuser section

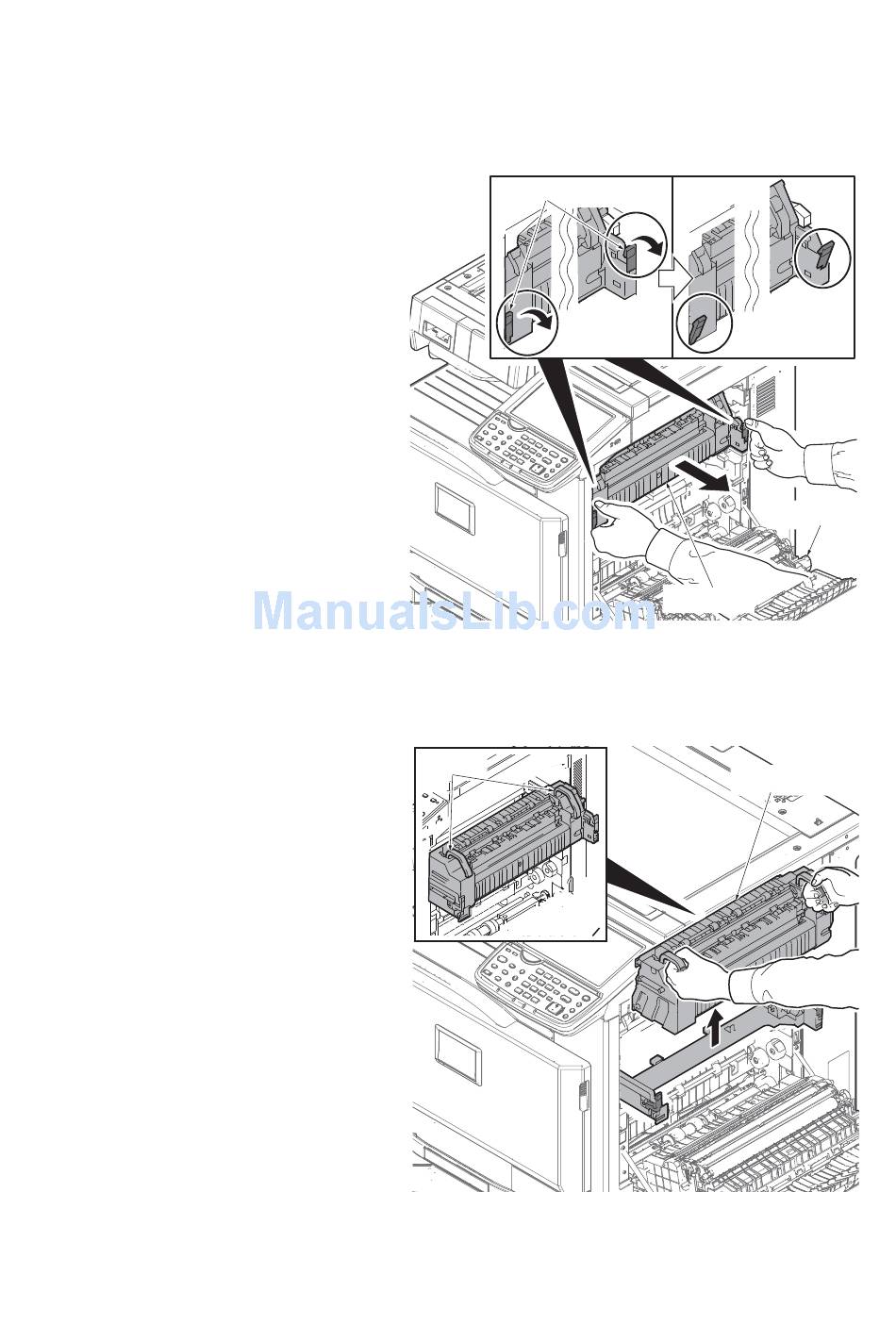

(1) Detaching and refitting the fuser unit

Procedures
1. Open the right cover 1.
2. Release two mount levers and then pull
the fuser unit forwards
3. Grip two knobs of the fuser unit.
4. Lift the fuser unit upwards and then
remove the fuser unit.
5. Check or replace the fuser unit and refit
all the removed parts.
6. When replacing the new unit,proceed
as follows:
1)Performs maintenance mode U410
(Adjusting the halftone automatically)
(see page 1-3-133).
Mount levers
Figure 1-5-30
Knobs
Figure 1-5-31
1-5-17
2NP
Right cover 1
Fuser unit
Fuser unit
