(7-2) Fitting the scanner wires

NOTE
When fitting the wires, be sure to use those specified below.
Machine front: (P/N: 302K317150), gray
Machine rear: (P/N: 302K317140), black
Fitting requires the following tools
Two frame securing tools (P/N 302FZ17100)
Two scanner wire stoppers (P/N 35968110)
Procedures
1. Remove the screw and remove the
scanner wire drum gear.
2. Remove the stop ring and bush from
the front of the scanner wire drum shaft.
3. Remove the scanner wire drum shaft
from the scanner unit.
Scanner wire
drum shaft
Bush
Stop ring
1-5-34
Scanner unit
Scanner wire
drum gear

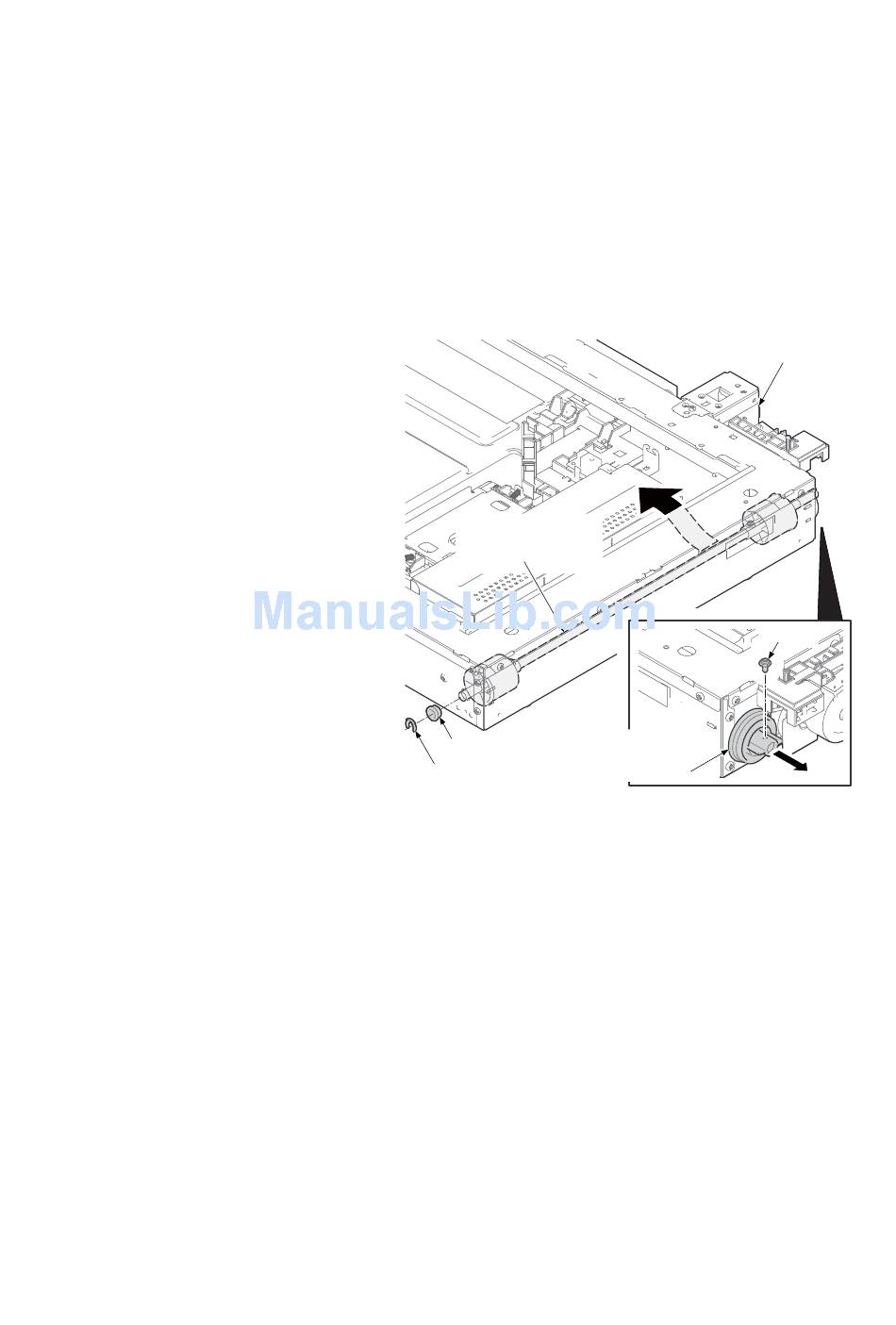

Figure 1-5-61
2NP-6
Screw
