5. Remove two fulcrum axes of the front
cover.
6. Remove the front cover.

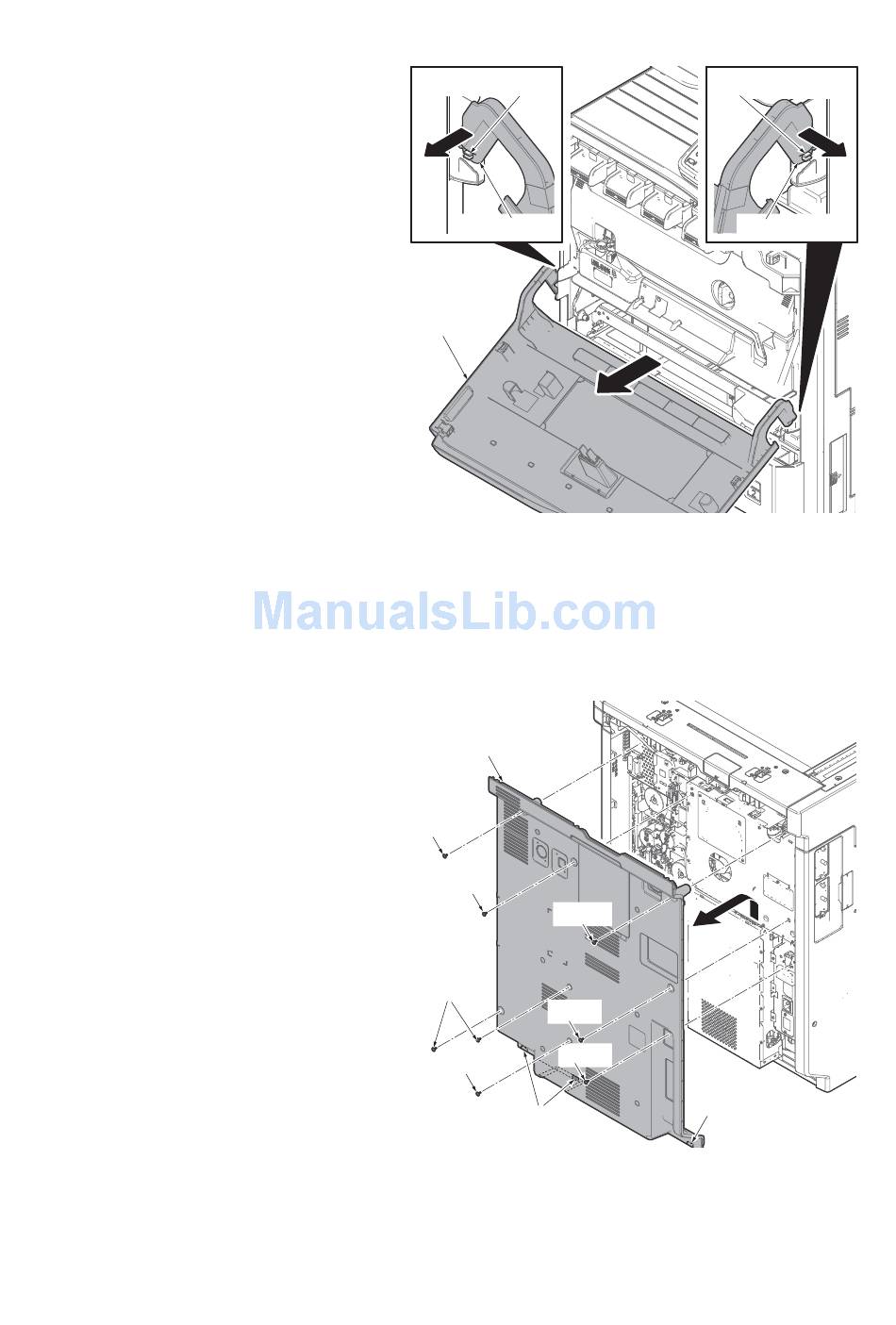

(2) Detaching and refitting the rear cover
Procedures.
1. Remove eight screws.
2. Pull the rear cover upwards and then
release three hooks.
3. Remove the rear cover.
Fulcrum section
Fulcrum axis
Front cover
Rear cover
Screw
Screw
Screw
Screws
Screw
Screw
Screw
Hooks
1-5-4
Fulcrum section
Fulcrum axis
Figure 1-5-5
Hook
Figure 1-5-6
2NP
