(5) Detaching and refitting the operation panel PWB main
Procedures
1. Open the front cover.
2. Open the right cover1.
3. Remove the front upper cover.

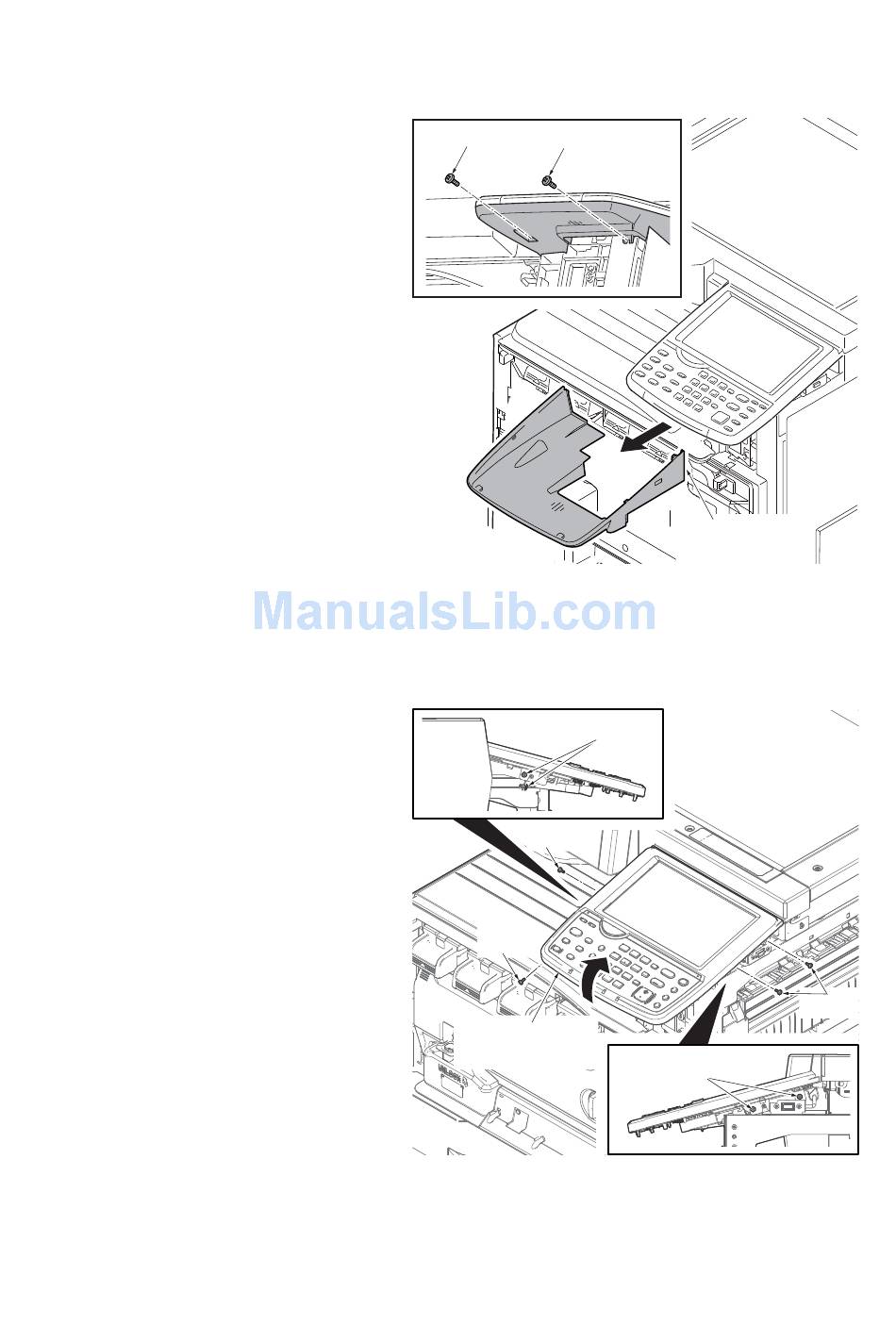

4. Remove two screws and then remove
the operation panel lower cover.
5. Remove four screws and then rotate
the operation panel upper unit.
Screw
Screw
Figure 1-5-98
Screws
Screw
Screw
Operation panel
upper unit
Figure 1-5-99
1-5-54
2NP
Operation panel
lower cover
Screws
Screws
