(6) Detaching and refitting the IH PWB

Procedures
1. Remove the controller box.
(See page 1-5-39)
2. Remove the scanner right cover.
(See page 1-5-21)
3. Remove the right upper cover.
4. Remove the right rear cover.
5. Remove the connector from the option
connect PWB.
6. Remove two screws and remove the IH
box cover.
7. Remove all connectors from the IH
PWB.
8. Remove six screws and then remove
the IH PWB.
9. Check or replace the IH PWB and refit
all the removed parts.

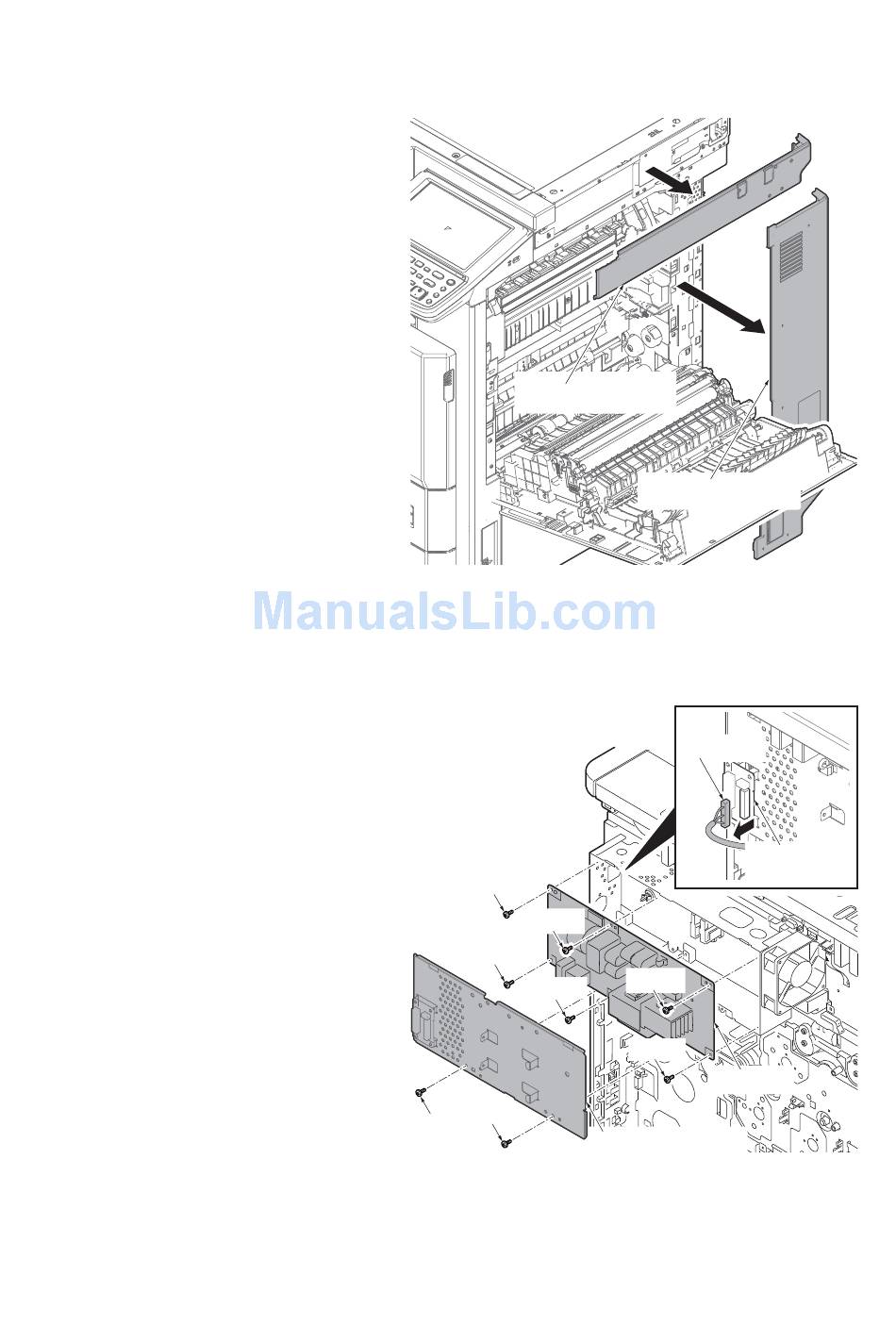

Right upper cover
Screw
Screw
Screw
Screw
Screw
Screw
1-5-57
Right rear cover
Figure 1-5-103
Connector
Option
connect PWB
Screw
Screw
IH PWB
IH box cover
Figure 1-5-104
2NP
