1-2-8 Installing the Printed Document Guard Kit (option)
Printed Document Guard Kit installation requires the following parts:
Parts
Printed Document Guard Kit (B)
Supplied parts of Printed Document Guard Kit :
Parts
Copy guard PWB
FFC (short)
FFC (long)
Mount plate B
Screw M3 x 6
* : Not used in this model.
Procedure
1. Press the power key on the operation
panel to off. Make sure that the power
indicator and the memory indicator are
off before turning off the main power
switch. And then unplug the power
cable from the wall outlet.
2. Remove eight screws.
3. Pull the rear cover upwards and then
release three hooks.
4. Remove the rear cover.
5. When not using DP junction PWB, the
following procedures 6 to 11 are fol-
lowed, and when using it, Procedure 13
to 20 is performed.
Quantity Part.No.
1 1503P40UN0
Quantity Part.No.
1
2*
2
1
2
Rear cover
Screw
Screw
Screws
Screw
1-2-56
-
-
-
-
-
Screw
Screw
Screw
Hooks

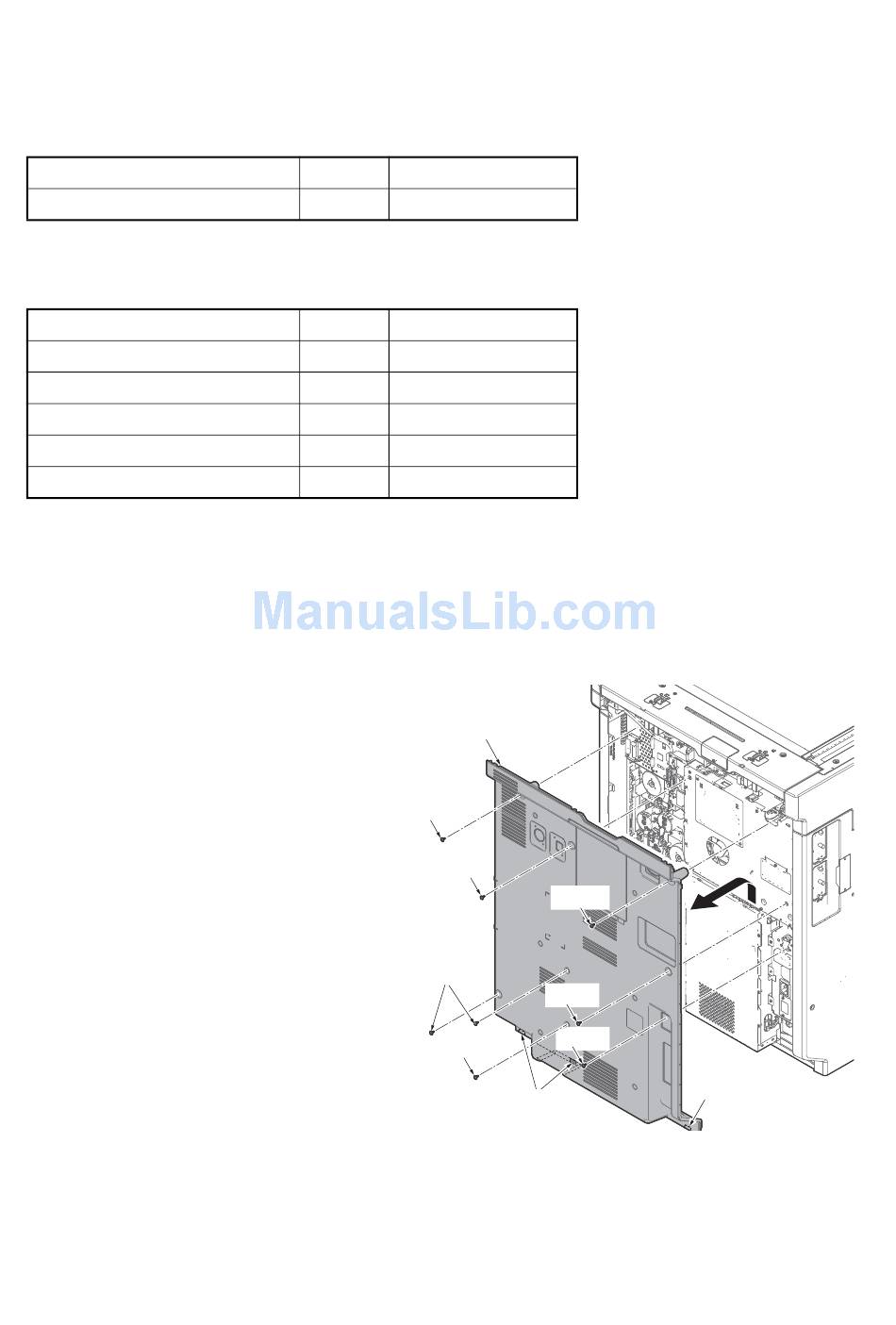

Figure 1-2-77
2NP-1
Hook
