Others; Detaching And Refitting The Paper Conveying Unit - Kyocera TASKalfa 266ci Service Manual

1-5-12 Others

(1) Detaching and refitting the paper conveying unit

Procedure
1. Open the rear cover.
2. Remove left and right straps.
3. Remove the rear cover unit.

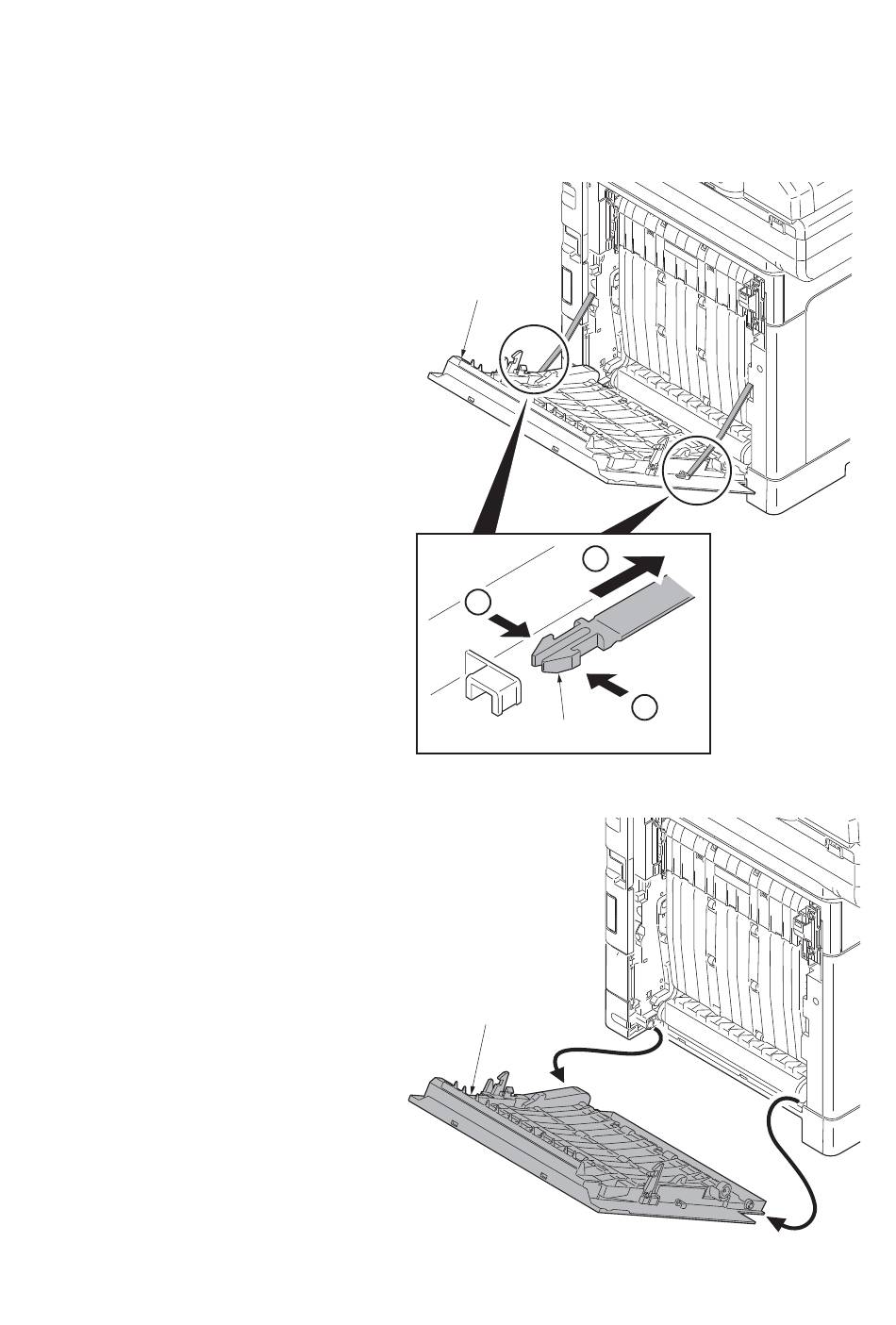

Rear cover
2
1
Strap
Figure 1-5-151
Rear cover unit
Figure 1-5-152
