1-5-11 Others

(1) Detaching and refitting the language sheet

Procedures

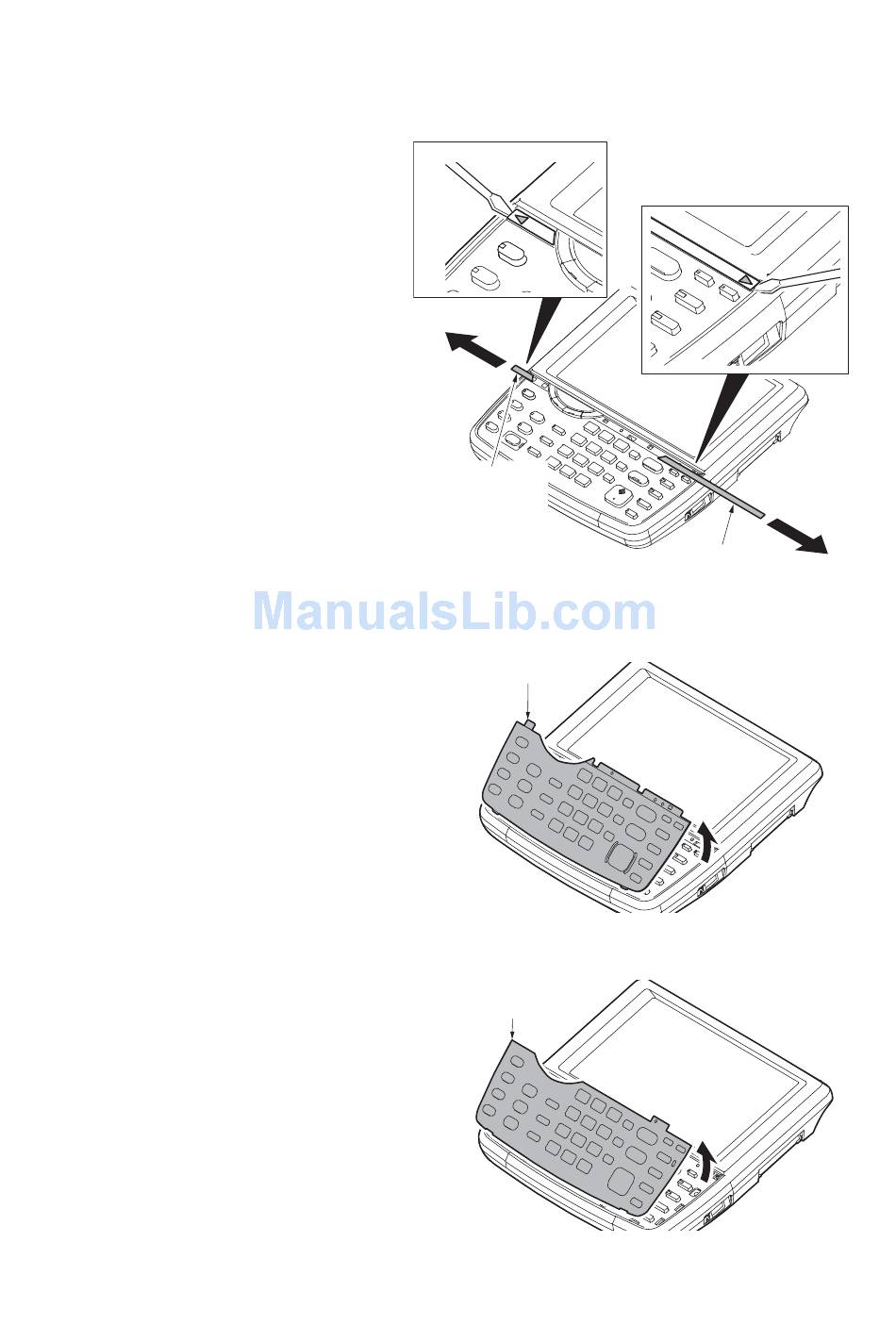

1. Insert a flat-head screwdriver and slide
the operation panel covers A and B to
remove them.
2. Remove the clear panel.
3. Remove the operation panel sheet.
4. Replace the operation panel sheet of
the corresponding language.
5. Refit the clear panel.
6. Refit the operation panel covers A and
B.
Operation
panel cover B
Figure 1-5-105
Clear panel
Figure 1-5-106
Operation
panel sheet
Figure 1-5-107
1-5-58
2NP
Operation
panel cover A
