Item No.
U066

Adjusting the scanner leading edge registration

Description
Adjusts the scanner leading edge registration of the original scanning.
Purpose
Make the adjustment if there is a regular error between the leading edges of the copy image and
original.
Adjustment
1. Press the start key.
2. Press the system menu key.
3. Place an original and press the start key to make a test copy.
4. Press the system menu key.
5. Select the item to be adjusted.
Display
Front
Rotate
6. Change the setting value using the +/- keys or numeric keys.
For copy example 1, increase the value. For copy example 2, decrease the value.
7. Press the start key. The value is set.
Caution
Check the copy image after the adjustment. If the image is still incorrect, perform the following
adjustments in maintenance mode.
U034
( P.1-3-37)
Completion
Press the stop key. The screen for selecting a maintenance item No. is displayed.
Description
Description
Scanner leading edge registra-
tion
Scanner leading edge registra-
tion (rotate copying)
Scanner leading edge registration (within ± 2.5 mm)
Original

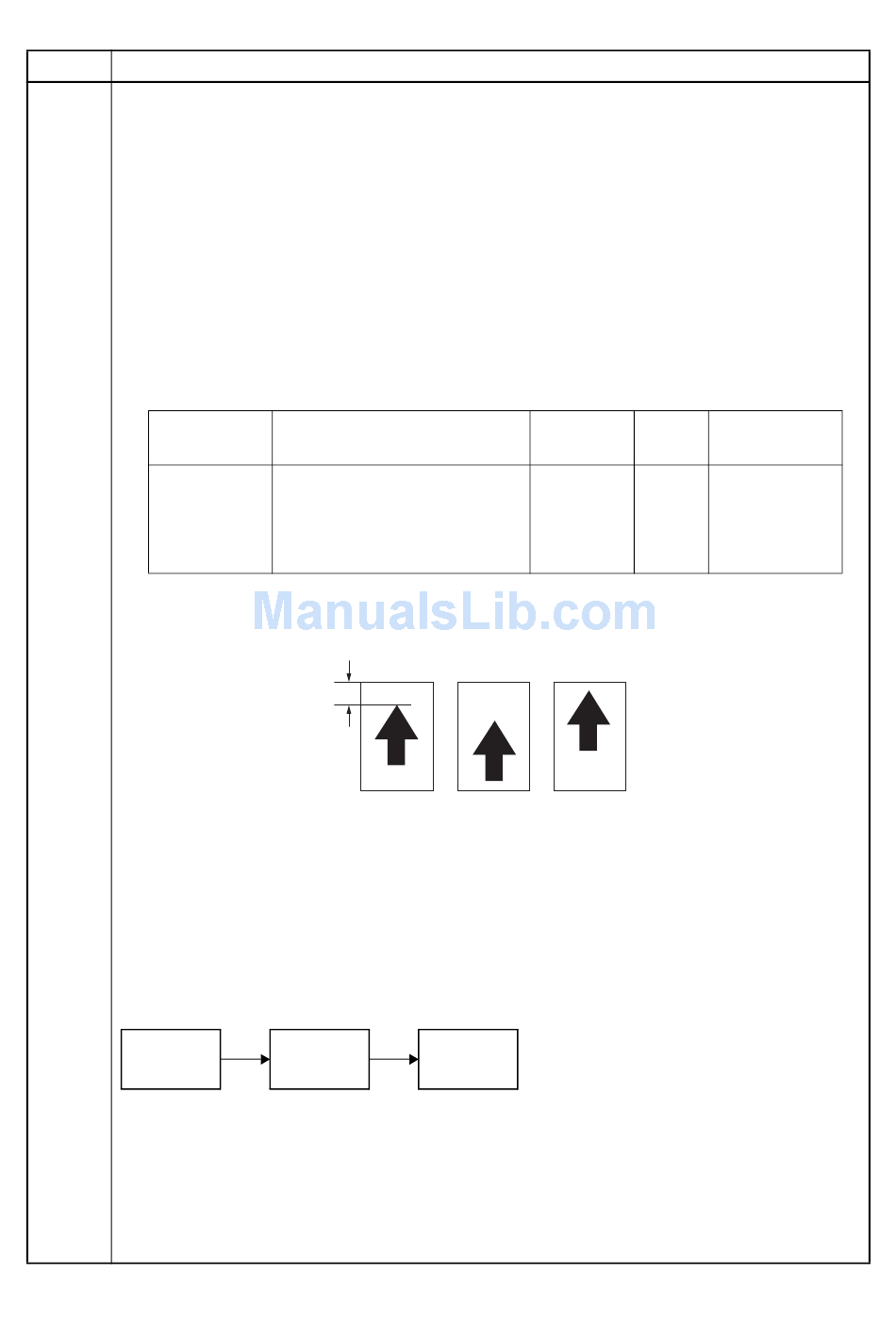

Figure 1-3-9
U065
U066
( P.1-3-44)
1-3-46
Setting
range
-30 to 30
-30 to 30
Copy Copy
example 1 example 2
Initial Change in
setting value per step
0 0.158 mm
0 0.158mm
