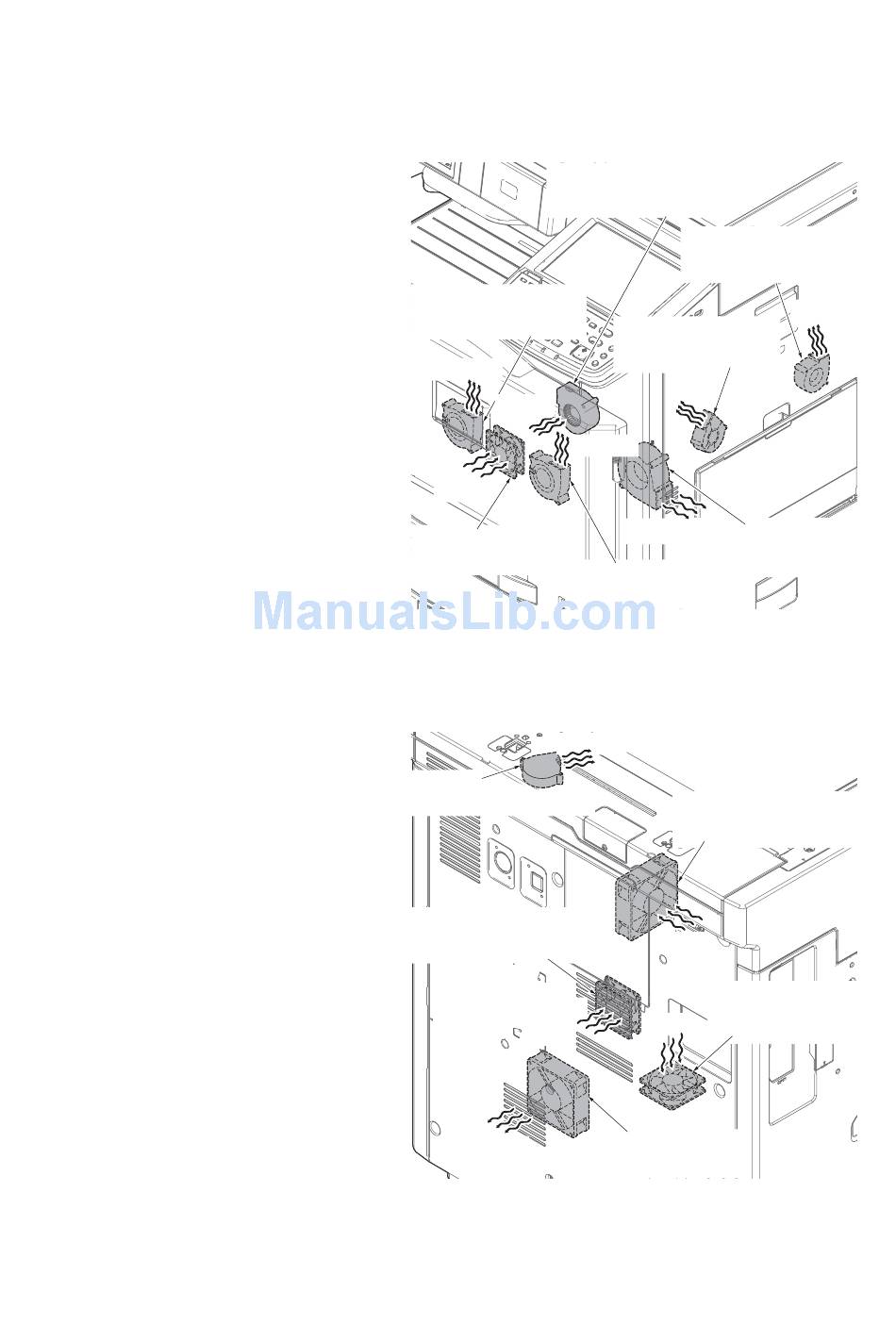

(3) Direction of installing the principal fan motors

When detaching or refitting the fan moter,be careful of the airflow direction (intake or exhaust).
Container/IH coil fan
(Rating label:inside)
Developer fan 2
(Rating label:outside)
Exhaust
Intake
Exhaust
Intake
LSU fan
(Rating label:inside)
Developer fan 3
(Rating label:outside)
Exhaust
Eject fan
(Rating label:right side)
Controller fan
(Rating label: inside)
Intake
Exhaust
1-5-61
Fuser fan 2
(Rating label: outside)
Fuser fan 1
(Rating label:outside)
Exhaust
Exhaust
Developer fan 1
(Rating label:outside)
Figure 1-5-111
IH fan
(Rating label:box side)
Inteke
Power source fan
(Rating label:
Intake
lower side)
Image fan
(Rating label:outside)
Figure 1-5-112
2NP
Exhaust
