(5) Detaching and refitting the LED unit

1. Remove the sanner right cover and

contact glass.(See page 1-5-21)

2. Remove two screws and then remove

the scanner rear cover.

3. Remove the rear cover.

4. Remove two screws and remove the

scanner front upper cover.

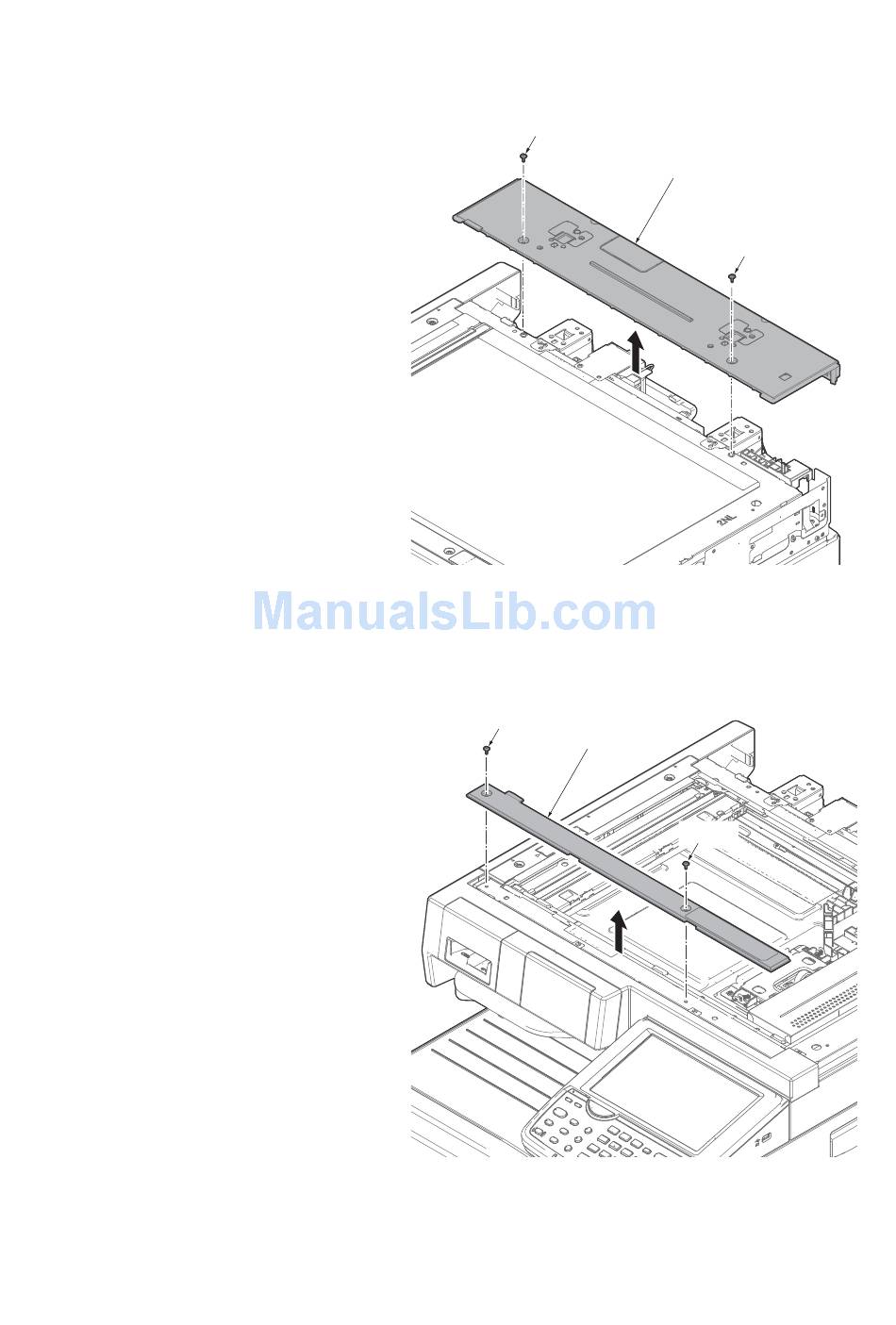

Figure 1-5-51

Scanner front

Figure 1-5-52

Scanner rear cover
