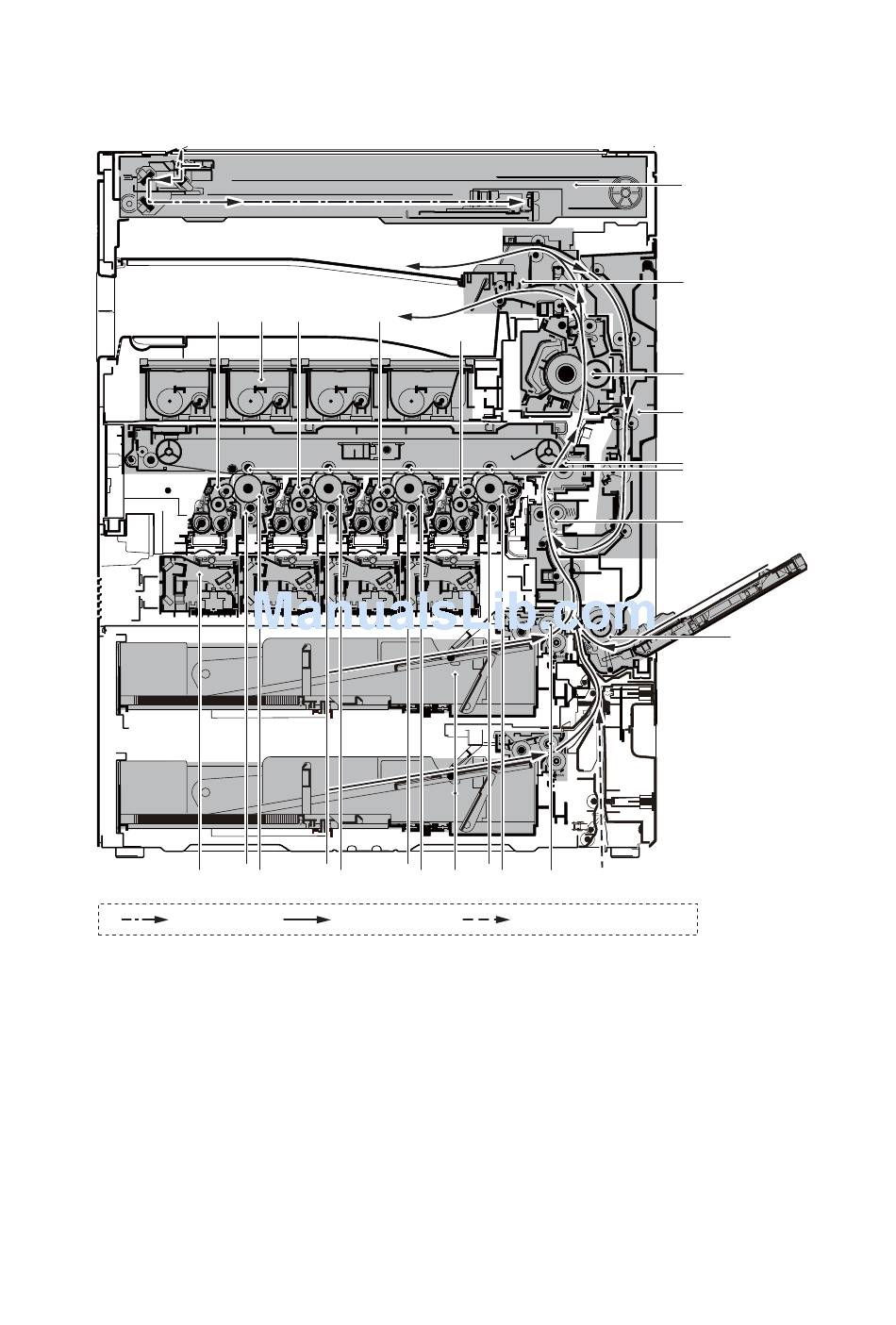

1-1-3 Machine cross section

21
Light path
1. Cassette
2. Cassette paper feed section
3. MP tray paper feed section
4. Conveying section
5. Primary transfer section
6. Secondary transfer section /
Separation sections
7. Fuser unit
13 12 14 15
11 11
17 18
Paper path
8. Eject section
9. Duplex/conveyning section
10. Image scanner unit (ISU)
11. Charger roller unit
12. Toner container /YCMK
13. Developer unit /Y
14. Developer unit /C
15. Developer unit /M
16
11 11
2
19 1 20
Paper path (Option)
Figure 1-1-5
1-1-9
10
8
7
9
6
5
4
3
16. Developer unit /K
17. Drum unit /Y
18. Drum unit /C
19. Drum unit /M
20. Drum unit /K
21. Laser scanner unit (LSU)
/YCMK
2NP
