Item No.
U469

Error codes

Codes
S001
S002
S003
Method: [Manual]
1. Select [Print].
2. Press the start key. A chart for adjustment is outputted.
3. Select [Regist].
4. Read figures at MH-1 to 7/CH-1 to 7/YH-1 to 7 and MV-3/CV-3/YV-3 of the reference chart
and enter the figure marked at the scale which the BK fine line is in line with the M/C/Y fine
lines, using the # key or * key.
5. Press the start key. The value is set.
6. Press the start key after all values have been entered. Color registration correction starts.
7. Print a chart for adjustment.
8. Verify that each scale is within the range of 1to A.
Description
Patch not detected
Original deviation in the main
scanning direction
Original deviation in the auxil-
iary scanning direction

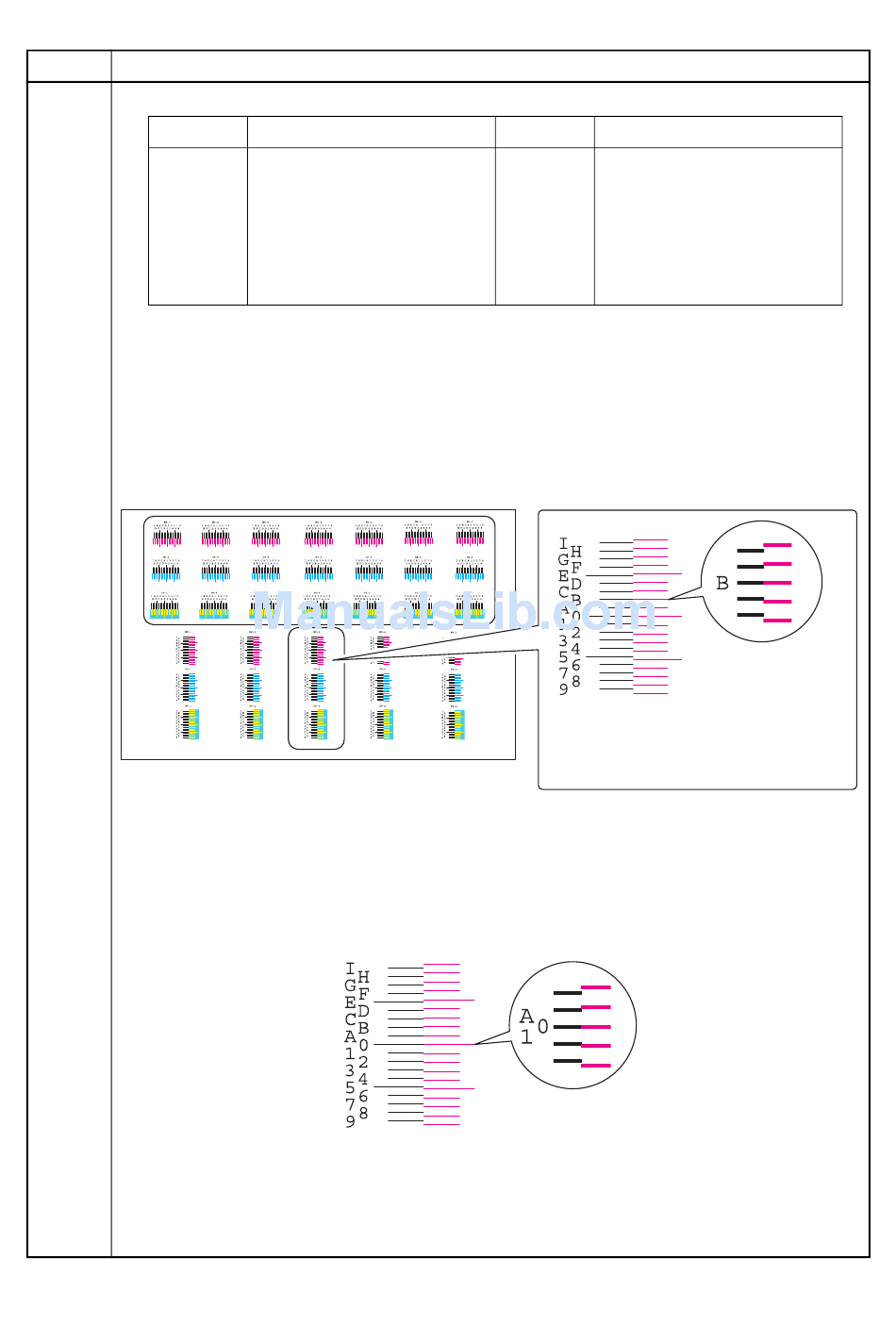

Chart for adjustment
The scale must be corresponding
within the range of "A" from "1".
Description
Codes
S004
S005
SFFF
CFFF
(example)
When a red bar exactly coincides
with B, enter B as a value.
Figure 1-3-45
Figure 1-3-46
1-3-154
Description
Original inclination error
Original type error
Scanner other error
Controller other error
