1-5-10 PWBs

(1) Detaching and refitting the main PWB

Procedures
1. Remove the rear cover.
(See page 1-5-4)
2. Release the wire saddle and the guide
hook and then remove the connector
from the DP relay PWB.
3. Remove the screw and remove the DP
connector mounting plate.
4. Remove eight screws and remove the
controller box cover.
Connector
DP relay PWB
Guide Hook
Screws
Screws
Screw
Screws
Screw
Screw
Screw
Screw
1-5-37
Wire saddle
Screw
DP connector
mounting plate

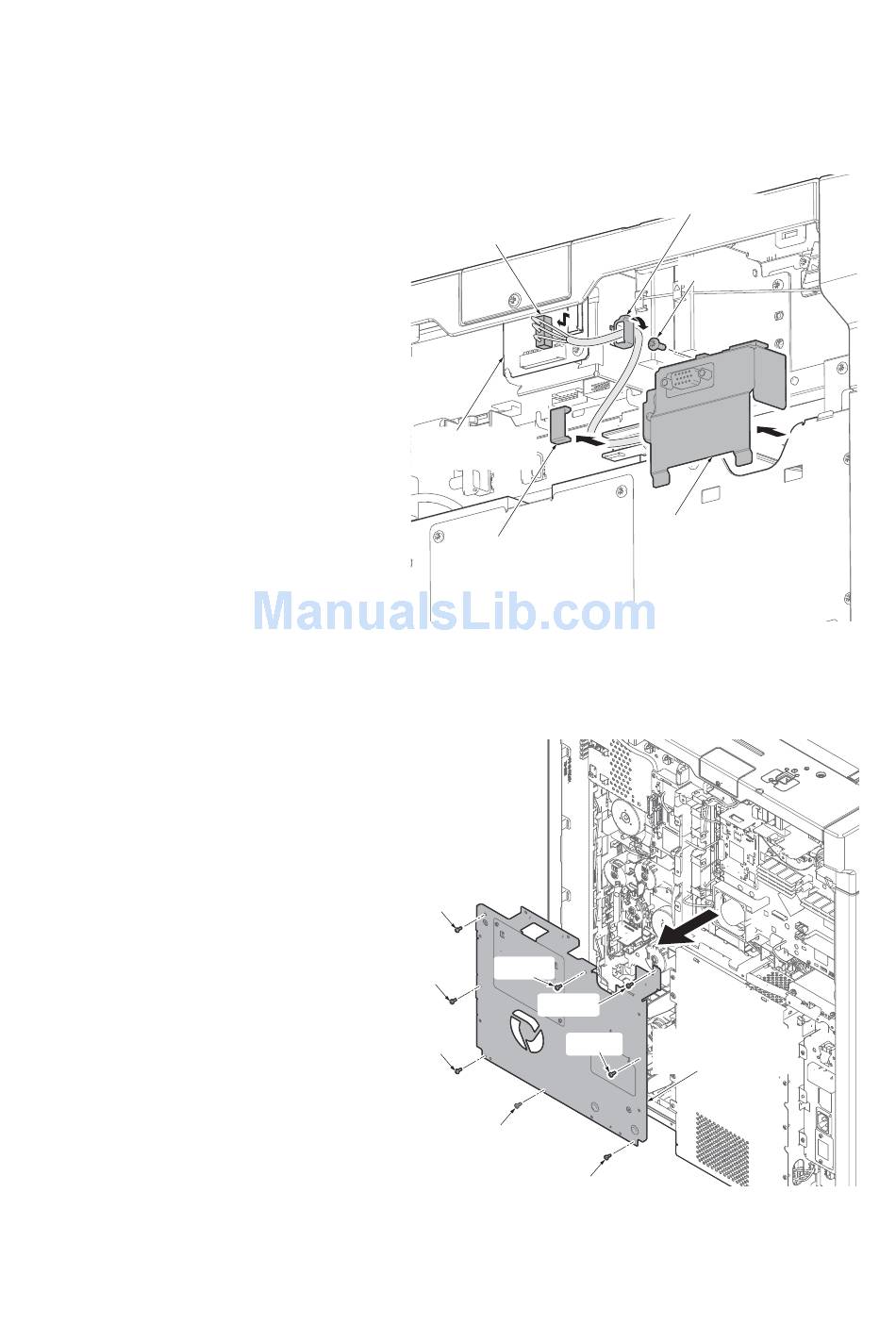

Figure 1-5-66
Controller
box cover
Figure 1-5-67
2NP-3
