(4) Detaching and refitting the image scanner unit
Procedures

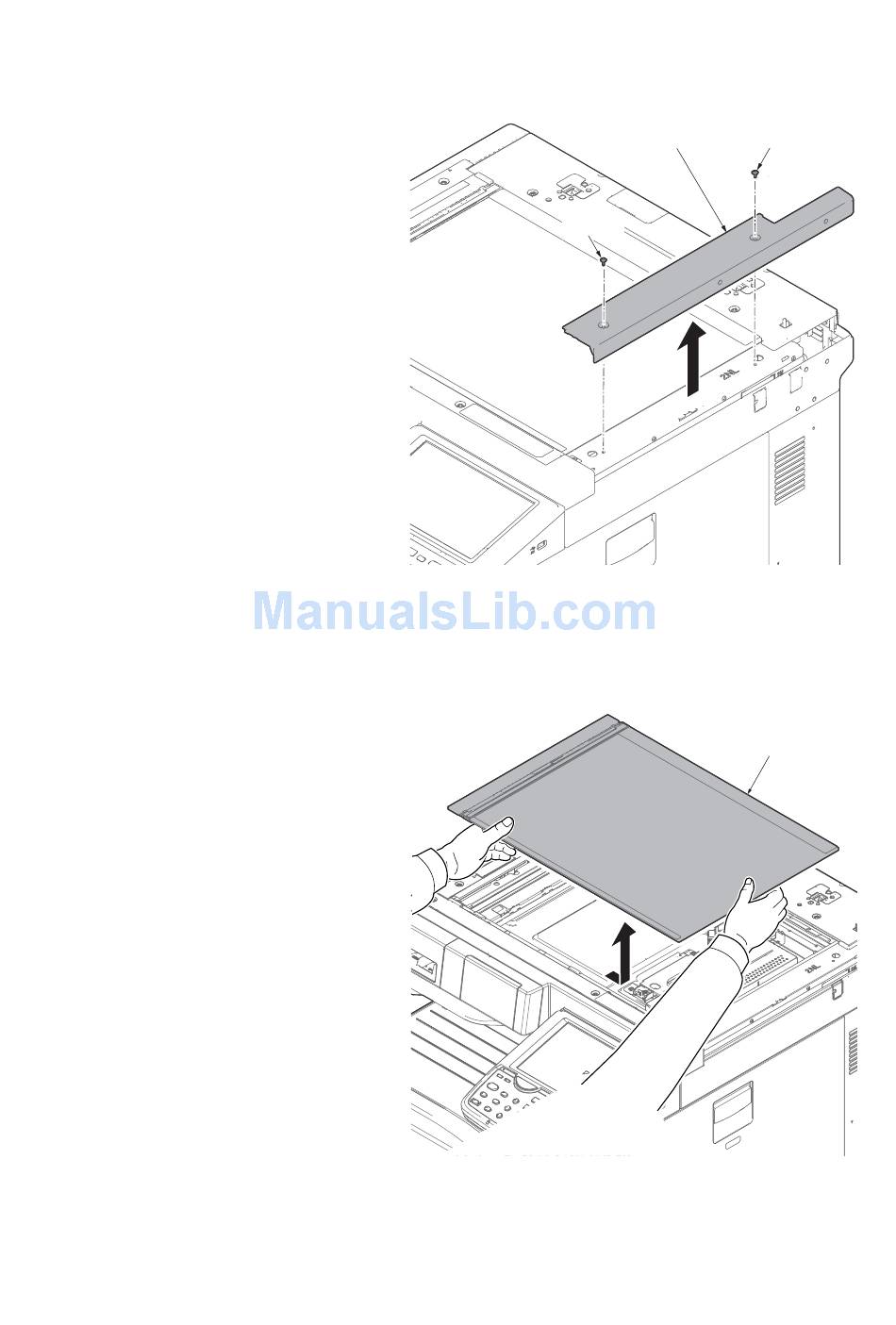

1. Remove two screws and then remove
the scanner right cover.
ATTENTION: To reinstall the scanner
right cover, position it close to the
contact glass.
2. Remove the contact glass by pull right-
ward.
Scanner right cover
Screw
Figure 1-5-46
Figure 1-5-47
1-5-25
2NP
Screw
Contact glass
