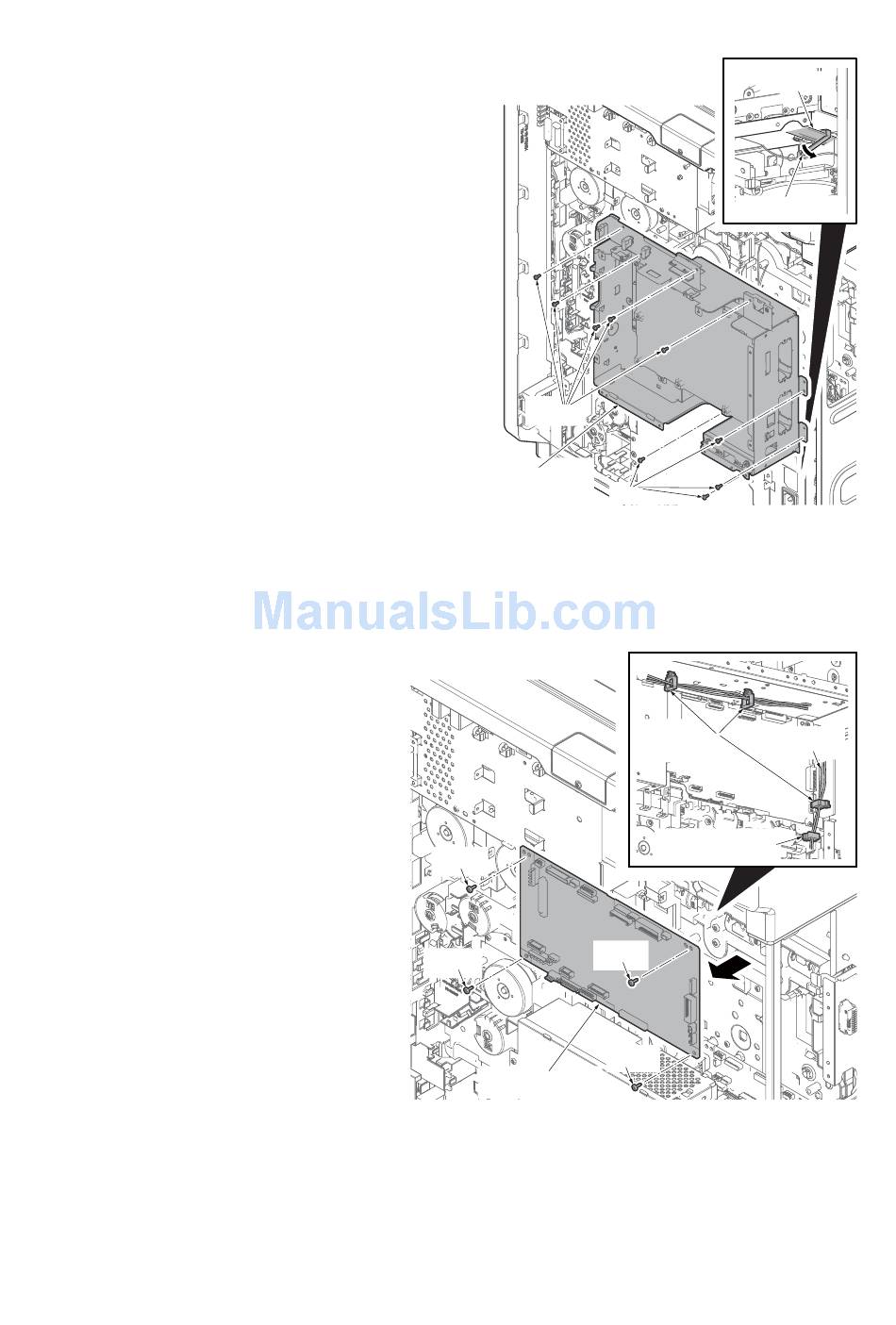

7. Remove nine screws and then remove
the controller box.
8. Remove three wire saddles A.
9. Release the wires from the wire saddle
B.
10. Remove all connectors and FFC from
the engine PWB.
11. Remove four screws and then remove
the engin PWB.
12. Check or replace the engine PWB and
refit all the removed parts.
CAUTION: When replacing the engine
PWB, remove the EEPROM (U15) from
the engine PWB that has been removed
and then reattach it to the new engine
PWB.
Screws
Controller box
Figure 1-5-77
Screw
Screw
Engine PWB
Figure 1-5-78
1-5-43
FFC clamp
Screws
Wire
saddles A

Wire saddle B

Screw
Screw
2NP-2
FFC
Wires
