(4) Detaching and refitting the eject rear cover
Procedures

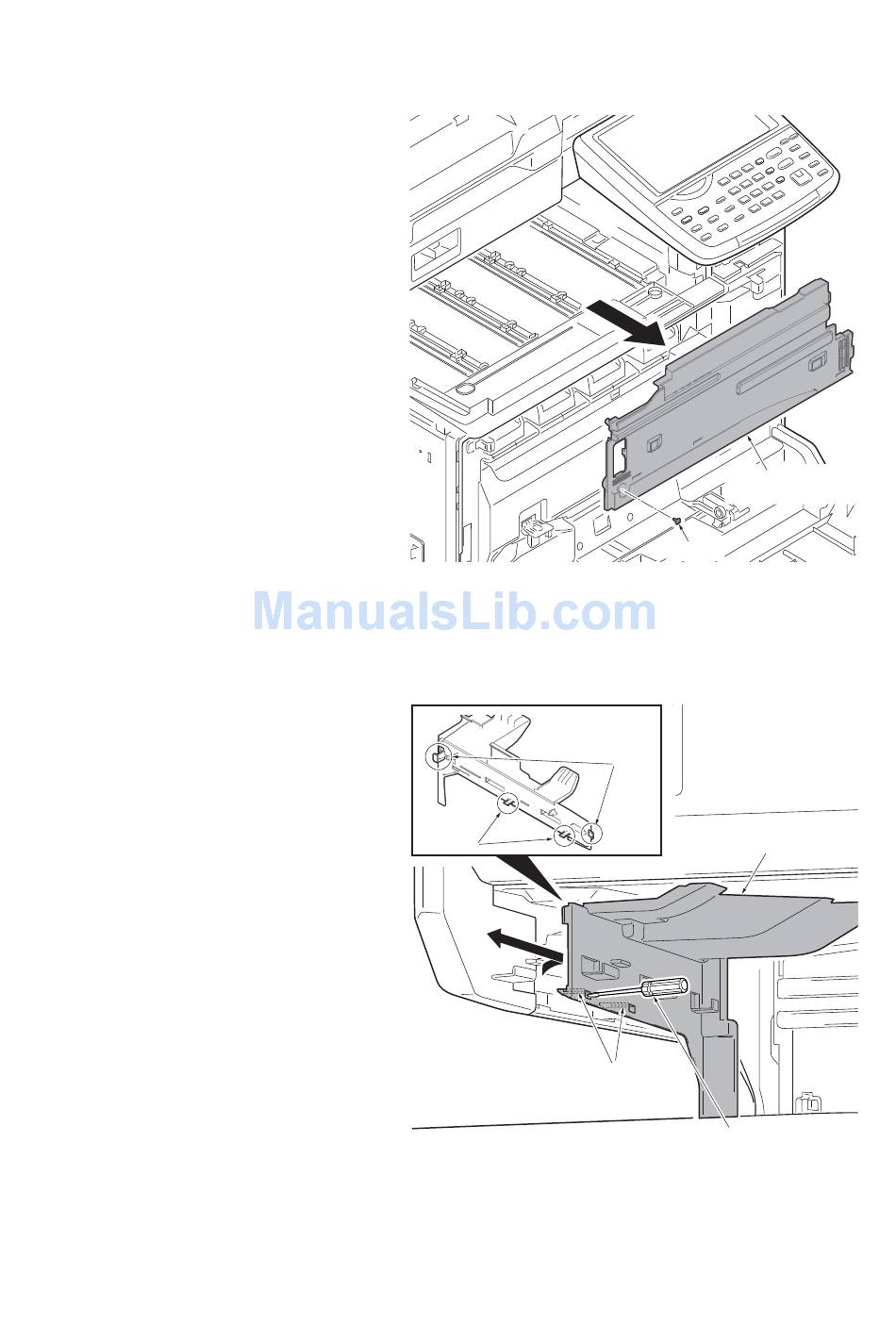

1. Remove the screw and remove the
eject rear cover.
2. Release two hooks by using a flat
screwdriver.
3. Release two projections and remove
the tray left cover.
Figure 1-5-11
Projections
Hooks
Hooks
Figure 1-5-12
1-5-7
2NP
Eject rear cover
Screw
Tray left cover
Flatscrew driver
