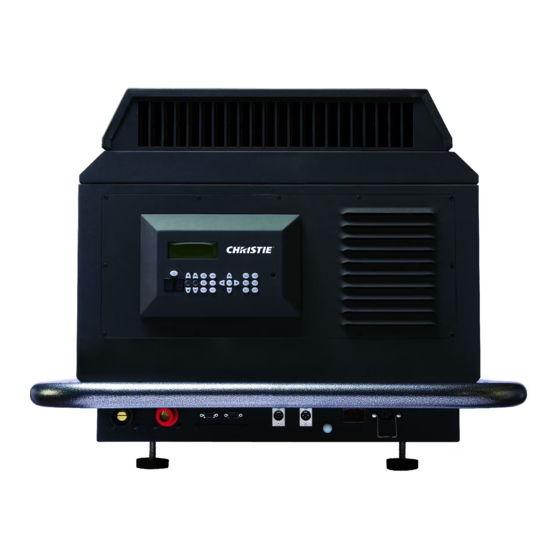

Christie Roadie HD+35K User Manual

Hide thumbs Also See for Roadie HD+35K:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Setup Manual
Roadie HD+35K
U S E R M A N U A L
020-100340-02

Advertisement

Table of Contents
loading

Related Manuals for Christie Roadie HD+35K

Summary of Contents for Christie Roadie HD+35K

  • Page 1 Roadie HD+35K U S E R M A N U A L 020-100340-02...
  • Page 3 Roadie HD+35K U S E R M A N U A L 020-100340-02...
  • Page 4 Christie makes no warranty of any kind with regard to this material, including, but not limited to, implied warranties of fitness for a particular purpose. Christie will not be liable for errors contained herein or for incidental or consequential damages in connection with the performance or use of this material.

  • Page 5: Table Of Contents

    2.7 Connecting Multiple Projectors....................2-32 2.7.1 Serial Links ..........................2-33 2.7.2 Ethernet Networks .......................2-34 2.7.3 Separating or Joining Serial Networks ................2-36 2.7.4 Communicating to All Ports ....................2-38 2.7.5 Communicating to Certain Ports..................2-39 2.7.6 Projector Numbers .......................2-40 Roadie HD+35K User Manual 020-100340-02 Rev. 1 (01-2010)
  • Page 6 3.1.14 Security Locks........................3-6 3.2 Using the Built-In Keypad or Remotes..................3-6 3.2.1 Built-in Keypad........................3-6 3.2.2 Standard IR Remote and Transmission................3-7 3.2.3 Wired IR Remote .........................3-7 3.2.4 The Lite Remote (Optional) ....................3-8 3.2.5 Guide to Keypads.........................3-9 Roadie HD+35K User Manual 020-100340-02 Rev. 1 (01-2010)
  • Page 7 3.10.8 How Old is My Lamp? .....................3-65 3.10.9 When to Replace the Lamp....................3-65 3.11 Status Menu ..........................3-65 3.12 Using Multiple Projectors......................3-65 3.12.1 Matching Colors In Multiple Screens................3-66 3.12.2 Achieving Brightness Uniformity..................3-69 3.12.3 Edge Blending........................3-72 Roadie HD+35K User Manual 020-100340-02 Rev. 1 (01-2010)
  • Page 8 5.5.6 The Display is Faint ......................5-4 5.5.7 The Upper Portion of the Display is Waving, Tearing or Jittering........5-4 5.5.8 Portions of the Display are Cut OFF or Warped to the Opposite edge........5-4 Roadie HD+35K User Manual 020-100340-02 Rev. 1 (01-2010)
  • Page 9 6.10 EMC Emissions .........................6-7 6.11 EMC Immunity..........................6-7 6.12 Operating Environment ......................6-7 6.12.1 Non-Operating Environment .....................6-7 6.12.2 Weight & Size........................6-8 6.13 Standard and Optional Components ..................6-9 6.13.1 Standard (Sold with Product).....................6-9 6.13.2 Optional (Sold Separately)....................6-9 Roadie HD+35K User Manual 020-100340-02 Rev. 1 (01-2010)
  • Page 10 C: System Integration C.1 Introduction ..........................C-1 C.1.1 Configuring the GPIO ......................C-1 C.1.2 Query Command .........................C-2 C.1.3 Real Time Event ........................C-2 D: Optional Input Modules D.1 DVI Input Module........................D-1 D.2 Dual SD/HD-SDI Module......................D-1 Roadie HD+35K User Manual 020-100340-02 Rev. 1 (01-2010)

  • Page 11: Using This Manual

    NOTE: Only personnel trained specifically by Christie on lamp replacement and lamp safety may handle the lamp. SERVICE:...

  • Page 12: Labels And Marking

    • Operational states of modules appear capitalized, such as switch ON/OFF. Purchase Record and Service Contacts Whether the projector is under warranty or the warranty has expired, Christie’s highly trained and extensive factory and dealer service network is always available to quickly diagnose and correct projector malfunctions.

  • Page 13: Projector Overview

    1.3.1 How the Projector Works Processing and Projection The Roadie HD+35K accepts a variety of signals for projection in large screen applications. The High brightness light is generated by a short-arc Xenon lamp, and then modulated by three Digital Micromirror Device (DMDs) panels responding to incoming data streams of digitized red, green, or blue color information.

  • Page 14: List Of Components

    Section 1: Introduction 1.3.2 List of Components The following components make up a complete Roadie HD+35K system (refer to Figure 3-1): • Projection Head. Includes: • Line cord • Standard IR remote (includes batteries for IR use, and 25’ cable for wired use) •...
  • Page 15 Special Display Functions (Selected Functionality) • Auto setup • Picture-in-Picture (PIP) • Electronic brightness uniformity, whitelevel edge blending and color matching • Optional image warping/blending for unusual angles and/or screens (Christie TWIST) Roadie HD+35K User Manual 020-100340-02 Rev. 1 (01-2010)
  • Page 16 • Built-in ChristieNET™ connectivity and control • LED for two-digit error codes, plus LCD for text-based status display • Large status light for long-distance alerts • Double voltmeters: one for lamp ballast, one for projection head Roadie HD+35K User Manual 020-100340-02 Rev. 1 (01-2010)

  • Page 17: 2: Installation And Setup

    Locate the projection head at an appropriate throw distance (projector-to-screen distance) and vertical position. Refer to Section 2.3 Projector Position and Mounting and the Christie website for Throw Distance calculations. Refer to Section 6.2 Lenses. Make sure that the projector is level from side-to-side, and is not inverted.
  • Page 18 2-3. NOTE: Before connecting the ballast to the AC supply, a Christie accredited service technician must make sure the ballast's plug type and Input Power Range Switch match the line voltage available at the site. Remove the lamp ballast cover to access the switch and determine it's setting-toggle LEFT for 200 VAC supplies, toggle RIGHT for 400 VAC supplies (factory default=200 VAC).
  • Page 19 Figure 2-3 Ballast Connection and Switch On Head-to-AC Connect the Christie-supplied IEC 320 (220V) 15-amp line cord to your AC supply. Do not substitute other cords. Input power required is 200 - 240 VAC (nominal), 50/60 Hz @ 3A for 208V. Refer to Figure 2-4.
  • Page 20 6000 watts, depending on its last setting. The Factory default is 6000 watts. b. Enter either the Lamp Password. Refer to Figure 2-5. NOTE: The password is required unless the "Enable Password" service option has been turned OFF. Roadie HD+35K User Manual 020-100340-02 Rev. 1 (01-2010)
  • Page 21 4500 on the 6000 standard IR remote Or standard Christie service password. Figure 2-5 Setting Lamp Size c. Use the U RROWS to select which lamp is currently installed. Make sure the lamp type is also indicated on the lamp door label.

  • Page 22: Installation Considerations

    Menu. Installation Considerations Although the Roadie HD+35K is carefully engineered to deliver exceptional quality, high brightness, and high resolution output, your final display results could still be compromised if the projector is improperly installed. This subsection discusses issues to consider before proceeding with a final installation. Even for temporary installations, this information helps you to better understand what may be done to ensure optimized images.

  • Page 23: Screen Size

    NOTE: Screens with aspect ratios (proportion) of 4:3 are typically specified by diagonal size, but screens having other aspect ratios, such as the 2048 x 1080 of the Roadie HD+35K, are usually specified by their horizontal width. See Table 2.1 below : Table 2.1 Matching Lens to Screen Size...
  • Page 24 Signals with lower aspect ratios will automatically scale to be as large as possible while maintaining their original aspect ratio. For details on resizing behavior, refer to Section 3.6.3 Image Settings Menu. Roadie HD+35K User Manual 020-100340-02 Rev. 1 (01-2010)
  • Page 25 The screen shown in Figure 2-10 also has a bottom mask: • Add masks for "scope" displays • Remove masks for "flat" displays Roadie HD+35K User Manual 020-100340-02 Rev. 1 (01-2010)
  • Page 26 (2.39 screens) SIDE-MASKING SCREEN Side masking to hide screen edges 1.85 image 2.39 image Masking moved aside Figure 2-11 Side Masking for Flat 2-10 Roadie HD+35K User Manual 020-100340-02 Rev. 1 (01-2010)

  • Page 27: Ambient Lighting

    A good rule of thumb is to be no closer than 1.5 times the width of the screen. Roadie HD+35K User Manual 2-11...

  • Page 28: Projector Position And Mounting

    Once you know your screen width and type of lens, you can estimate throw distance needed. Or, if you know throw distance, you can determine what images sizes are possible with a given zoom lens. 2-12 Roadie HD+35K User Manual 020-100340-02 Rev. 1 (01-2010)

  • Page 29: Vertical & Horizontal Position

    For proper placement in any installation, use the lens and screen size to calculate the precise throw distance using the tables provided in the Dealer Section of the Christie Website, PN 020- 100395-xx. In addition, please keep in mind that due to lens manufacturing tolerances for lens focal length, actual throw distance can vary ±5% or more between lenses described as having the...
  • Page 30 IR remote. Starting with no offset, the 2048 x 1080 image from this projector can be moved by a distance of up to ±35% of the image width (depending on the lens). 2-14 Roadie HD+35K User Manual 020-100340-02 Rev. 1 (01-2010)

  • Page 31: Floor Mounting And Leveling

    For installations on a floor or suitable supporting structure, a single projection head should rest firmly on its feet. To adjust the height and level of the projector, extend or retract the feet by rotating them. Refer to Figure 2-17. Roadie HD+35K User Manual 2-15 020-100340-02 Rev. 1 (01-2010)

  • Page 32: Tilting And Special Orientations

    This limit ensures safe lamp operation and proper position of the liquid cooling reservoir in the projector. ± 15° max. ± 15° max. Tilt only as shown in Figure 2-18 Figure 2-18 Front End Tilt Figure 2-19 2-16 Roadie HD+35K User Manual 020-100340-02 Rev. 1 (01-2010)

  • Page 33: Hoisting And Stacking

    Never exceed the load rating specified. Use the projector’s handles for hoisting/rigging ONE projector only. Never try to carry more than one projector. Remove the projection lens before hoisting/rigging. Roadie HD+35K User Manual 2-17 020-100340-02 Rev. 1 (01-2010)
  • Page 34 1) CRITICAL SAFETY is a minimum of 4 rigging clamps are required for a single projector. 2) Always use redundant safety straps/cables. 3) Observe load ratings and all local applicable codes. 2-18 Roadie HD+35K User Manual 020-100340-02 Rev. 1 (01-2010)
  • Page 35 Route safety straps though both eyebolts Route safety strap around outside of handles. BOTTOM VIEW Route a safety strap through both eyebolts on crossbeam. Figure 2-22 Using Safety Straps Roadie HD+35K User Manual 2-19 020-100340-02 Rev. 1 (01-2010)

  • Page 36: Installing Lens, Lamp, And Cooling

    1) Ensure that the Zoom connector is fully engaged. 2) When installing the lens, ensure that the lens is NOT inserted at an angle, as this can cause damage. Ensure that the lens is fully back to seat properly within the lens mount. 2-20 Roadie HD+35K User Manual 020-100340-02 Rev. 1 (01-2010)
  • Page 37 Never attempt to operate the projector without a lens installed. During transport and installation, install a lens plug. Always re-install a lens in its previous "UP" orientation, otherwise boresight may require re- adjustment. Roadie HD+35K User Manual 2-21 020-100340-02 Rev. 1 (01-2010)

  • Page 38: Install First Lamp

    Explosion Hazard. Wear authorized protective clothing whenever the lamp door is open. Never apply a twisting or bending force to the quart lamp body. A Christie accredited service technician is required. 1. Open the lamp door and remove lamp cooling compartment door.

  • Page 39: Connecting Sources

    There are also several optional interfaces available for connecting other sources, these interfaces slide into either Input 5 or Input 6, and can be removed or installed while the projector is running. NOTE: Some Input options are not available with some projector models. Roadie HD+35K User Manual 2-23 020-100340-02 Rev. 1 (01-2010)
  • Page 40 RS422 GPIO Input 6 (Opt. 2) Control ports RS232 RS232 Figure 2-27 Roadie HD+35K Input Panel NOTES: 1) Refer to Section 6 Specifications for details regarding compatible inputs. Use high quality shielded cables only for all connections. 2-24 Roadie HD+35K User Manual...

  • Page 41: Rgb Signals

    INPUT 1, use the red, green and blue BNCs as described in YPbPr Signals (below). This Input does not route to the decoder and cannot be used for Figure 2-28 Connecting an RGB Source Composite Video or S-Video. Roadie HD+35K User Manual 2-25 020-100340-02 Rev. 1 (01-2010)

  • Page 42: Ypbpr Signals (Component Video)

    Video source (INPUT 4). Refer to Figure 2-30. To YPbPr Video source NOTE Unlike previous Christie projectors, composite Input 4 S-Video video and S-Video cannot connect to any other locations on the Input panel. Connect as shown in Ethernet Figure 2-30...

  • Page 43: Dual Sd/Hd-Sdi

    Section 2: Installation and Setup 2.5.4 Dual SD/HD-SDI Christie's Dual SD/HD-SDI module is standard with Input 1 this projector and factory-installed in the first option Vert slot (labeled INPUT 5). Its loop-through capability Sync Hor / enables incoming serial digital data (HD format) to Comp be tiled across multiple screens, creating vast "mega...

  • Page 44: Extra Video

    As an alternative to the projector's built-in keypad or standard IR remote, you may wish to communicate with the projector using a PC or other controller. Such a device sends commands and receives feedback via serial links (two types), Ethernet or GPIO communications, all described below. 2-28 Roadie HD+35K User Manual 020-100340-02 Rev. 1 (01-2010)

  • Page 45: Standard Ir Remotes

    3.5mm Phono Remote with XLR Connector Jack Connector Figure 2-32 Remote Options NOTE: If both wired remotes are connected, communications via the side Input panel has priority over communications via the rear. Roadie HD+35K User Manual 2-29 020-100340-02 Rev. 1 (01-2010)

  • Page 46: Other Controllers

    Changing the baud rate is done in the projector's Configuration > Communications secondary menu. Refer to Section 3.8 Adjusting System Parameters and To computer Advanced Controls. Figure 2-33 Connecting Serial Communications via RS-232 2-30 Roadie HD+35K User Manual 020-100340-02 Rev. 1 (01-2010)
  • Page 47 Commands sent during initializing will be lost. Do not use an RS-422 port unless you are using equipment with RS-422 capability. The voltage levels of this signal can damage incompatible equipment. Roadie HD+35K User Manual 2-31 020-100340-02 Rev. 1 (01-2010)

  • Page 48: Connecting Multiple Projectors

    You may wish to link two or more projectors together so that commands and communications to and from a controller are relayed between projectors. Choose a hardware configuration that best suits your desired communication method. 2-32 Roadie HD+35K User Manual 020-100340-02 Rev. 1 (01-2010)

  • Page 49: Serial Links

    RS-422 port. Connect to any RS422 port PROJ 1 PROJ 2 PROJ 3 RS-422 RS-422 RS-422 Figure 2-37 Typical RS-422 Network Roadie HD+35K User Manual 2-33 020-100340-02 Rev. 1 (01-2010)

  • Page 50: Ethernet Networks

    To add one or more projectors to an Ethernet network, use standard CAT5 cable to connect each projector's Ethernet port to a hub belonging to the network. A controller or PC must also be connected to the hub. Refer to Figure 2-39. 2-34 Roadie HD+35K User Manual 020-100340-02 Rev. 1 (01-2010)
  • Page 51 The projector then responds to commands sent to this address after the next power-up, after which the IP address remains in projector memory until you enter a new one, or until the DHCP check box is selected. Roadie HD+35K User Manual 2-35 020-100340-02 Rev. 1 (01-2010)

  • Page 52: Separating Or Joining Serial Networks

    Only one network should be active at a given time, as determined by the controller type (i.e. whether it is RS-232 or RS-422). NOTE: The "Broadcast Key" option must be OFF. 2-36 Roadie HD+35K User Manual 020-100340-02 Rev. 1 (01-2010)
  • Page 53 Refer to Figure 2-41. NOTE: When connecting RS-422 to a projector, use either the identical rear ports (6-pin XLR) or the 9-pin "RS422 IN" port on the side Input panel . Roadie HD+35K User Manual 2-37 020-100340-02 Rev. 1 (01-2010)

  • Page 54: Communicating To All Ports

    RS-232 in/out ports. All Joined Communications In this case, select the option for "Network Routing" in the menu so that all messages reach all ports throughout the network. 2-38 Roadie HD+35K User Manual 020-100340-02 Rev. 1 (01-2010)

  • Page 55: Communicating To Certain Ports

    Ethernet communications will not (and vice versa). To keep each network communication links separate from each other, select the Separate option. Figure 2-44 Port Communication Menu Roadie HD+35K User Manual 2-39 020-100340-02 Rev. 1 (01-2010)

  • Page 56: Projector Numbers

    3. Toggle the switch left for use with 200 VAC Figure 2-45 Setting up the Ballast supplies, or toggle right for 400 VAC supplies. 4. Attach the ground lug to Earth Ground. 5. Re-install the ballast cover. 2-40 Roadie HD+35K User Manual 020-100340-02 Rev. 1 (01-2010)

  • Page 57: Connect To Projector

    4500 on the 6000 standard IR remote Or standard Christie service password. Figure 2-46 Checking or Setting Lamp Size Explosion hazard! Keep the projector OFF until you have defined which lamp type is installed. 1. Press M . The Status Display at the rear of the projector displays a "Lamp Size" of 2000, 3000, 4500 or 6000 watts, depending on its last setting (factory default=6000).

  • Page 58: Turning On The Projector

    Section 2: Installation and Setup 2.9.2 Turning ON the Projector After the breaker/power switch (located on the ballast) has been switched ON, follow the procedure described for the Roadie HD+35K system in Section 3.3 Power-up Procedure/Checklist, Steps 1 and 2.

  • Page 59: Boresight Adjustment

    For best results, try to minimize offsets by "aiming" the projector lens at the center of the image. Refer back to Section 2.3 Projector Position and Mounting for offset ranges and method of adjustment. Roadie HD+35K User Manual 2-43 020-100340-02 Rev. 1 (01-2010)

  • Page 60: Adjust Left/Right Boresight

    Boresight, Step 2. However, use a paper at the bottom of the screen to determine whether the bottom of the image is focused in front of the screen or behind the screen. If the bottom is well focused, skip to Step 6. 2-44 Roadie HD+35K User Manual 020-100340-02 Rev. 1 (01-2010)

  • Page 61: Add Anamorphic Lens

    (sold separately) that will slightly reduce brightness. NOTE: A Christie accredited service technician is required. 2.13.1 Contrast Ratio Adjustment To achieve increased Contrast Ratio, and if desired, the standard F# Aperture installed at the factory can be replaced with an optional smaller aperture that improves contrast ratio while slightly limiting brightness.

  • Page 62: Color Gamut Adjustment

    A Christie accredited service technician can correct as described on the color Convergence Instructions label provided inside the projection head.

  • Page 63: Ir Remote Protocols And Adjustment

    Section 3.8 Adjusting System Parameters and Advanced Controls secondary menu. Refer to for further information on how to define which protocol the projector's infrared sensors (rear and front) will recognize. Figure 2-53 Independent Remotes and Projectors Roadie HD+35K User Manual 2-47 020-100340-02 Rev. 1 (01-2010)

  • Page 64: Standard Ir Remote Protocols

    Section 2: Installation and Setup 2.14.1 Standard IR Remote Protocols The Roadie HD+35K's standard IR remote can be set to 1 of 7 different protocols (A through G). To change protocol in the remote, follow Steps 1 through 4: 1. Unlatch and open the battery compartment on the back of the remote as shown in Figure 2-54.

  • Page 65: Converting A Remote

    Section 2: Installation and Setup Shortcut Method Unlike earlier Christie projectors and remotes, there is no shortcut method for changing a remote's protocol through a special sequence of keystrokes. You must change the internal jumper settings. 2.14.2Converting a Remote If desired, you can convert an IR remote into a wired remote and vice versa. Set the jumpers as shown in Figure 2-55, and add or delete the cable and batteries as required.

  • Page 67: Projector Basics

    3 Operation This section describes how to use the controls and switches for basic projector operation once it is properly installed, aligned and configured by a Christie accredited service technician, as described in Section 2 Installation and Setup. Refer to Safety Warning and Guidlines in...

  • Page 68: Ballast Breaker/Power Switch (On/Off)

    2) It protects against over-current conditions of 50A or more. The breaker/power switch must be in the ON position to enable normal Roadie HD+35K system power-up and operation. If faulty or major excessive AC is detected, the breaker/power switch "trips" to OFF in order to prevent damage.

  • Page 69: Handles

    FredFrame™. 3.1.5 Channels for FredFrame™ An adjustment mechanism (part of Christie's FredFrame™) that is inserted and secured into the channels located under the projector, enabling the projector to be hoisted, flown, and/or stacked. Consult complete installation instructions supplied with the FredFrame™ Kit.

  • Page 70: Lamp

    • 3.0 kW • 4.5 kW • 6.0 kW Keep the lamp door closed and locked for all normal operation. Only trained Christie accredited service technicians can access the lamp via a security key. Complete lamp details are provided in Section 6 Specifications.
  • Page 71 240) at all times. If the window is dark, this indicates that 1) the projection head is unplugged or 2) the projection head is not powered up or 3) inadequate, excessive or faulty AC has automatically "tripped" (opened) the breaker/power switch to OFF, causing a shut-down. Roadie HD+35K User Manual 020-100340-02 Rev. 1 (01-2010)

  • Page 72: Security Locks

    Because the built-in keypad has fewer keys than the Menu standard IR remote, certain projector functions are accessible only through the system. Enter key Power key Figure 3-4 Built-in Keypad at Rear of Projector Roadie HD+35K User Manual 020-100340-02 Rev. 1 (01-2010)

  • Page 73: Standard Ir Remote And Transmission

    Section 3: Operation 3.2.2 Standard IR Remote and Transmission The Roadie HD+35K comes with a standard IR remote which controls the projector by way of wireless communication from a battery-powered infrared (IR) transmitter. Use the standard IR remote the same way you would use any remote supplied with a TV or DVD player.

  • Page 74: The Lite Remote (Optional)

    The closer you are to the screen, the brighter the laser beam appears. The laser pointer works best in an environment where the ambient lighting can be controlled. Roadie HD+35K User Manual 020-100340-02 Rev. 1 (01-2010)

  • Page 75: Guide To Keypads

    Table 3.3 Auto Setup What an “Auto Setup” Does OPTIMIZES: SETS TO DEFAULT: Pixel Tracking Contrast Pixel Phase Brightness Roadie HD+35K User Manual 020-100340-02 Rev. 1 (01-2010)
  • Page 76 4 key to display from the S-video source connected to INPUT 4. If PIP is enabled, press NPUT INPUT 4 to assign it as the PIP source. This option is not available with some models. 3-10 Roadie HD+35K User Manual 020-100340-02 Rev. 1 (01-2010)
  • Page 77 (i.e., "crushed"). Conversely, overly high brightness changes black to dark gray, and causes washed-out images. Refer to 3.6.3 Image Settings Menu ( Image Settings subsection ). Roadie HD+35K User Manual 3-11 020-100340-02 Rev. 1 (01-2010)
  • Page 78 NOTES The status of the shutter is shown in the LCD display window at the rear of the projector as"SH" if closed. The shutter opens upon power-up. 3-12 Roadie HD+35K User Manual 020-100340-02 Rev. 1 (01-2010)
  • Page 79 Through ASCII messaging on a PC, you can also assign special user functions to keys 1 to 5, 7 to 9, and others. For example, the F key can be programmed to trigger RTEs (Real Time Events) or to display custom menus. Refer to the separate Christie Serial Communications publication. Projector Key Press the P...
  • Page 80 Arrow buttons to achieve a desired image size. • Press the L or R HIFT IGHT Arrow buttons to position the image horizontally. • Press the L or D HIFT Arrow buttons to position the image vertically. 3-14 Roadie HD+35K User Manual 020-100340-02 Rev. 1 (01-2010)

  • Page 81: Power-Up Procedure/Checklist

    • If a safety interlock switch is open (such as when the lamp door is ajar), the lamp cannot be struck. The PROJ. STATUS light on the rear of the projector should glow red, and an error appears on the status dislay and LCD window. Roadie HD+35K User Manual 3-15 020-100340-02 Rev. 1 (01-2010)

  • Page 82: Power-Down Procedure

    2 for the Image Settings menu. Or use the U and D Arrow keys on any remote to highlight the desired menu option, then press E NTER . The corresponding Function menu or drop-down list appears, presenting further options. 3-16 Roadie HD+35K User Manual 020-100340-02 Rev. 1 (01-2010)

  • Page 83: On-Line Help

    From the presentation level, press HELP to access general Help Topics 3-9). Press E NTER (Figure to select a topic. Scroll as necessary within a topic. Press HELP or E to return to your presentation. Figure 3-9 Accessing General Help Topics Roadie HD+35K User Manual 3-17 020-100340-02 Rev. 1 (01-2010)

  • Page 84: Time-Outs

    IR remote, then press E or the R or L Arrow keys to save (or E NTER IGHT to cancel). When you are done, press E to save and return to your presentation. 3-18 Roadie HD+35K User Manual 020-100340-02 Rev. 1 (01-2010)

  • Page 85: Editing Text

    Navigate Within the Edit Window Press the R Arrow key to move the cursor forward or the L IGHT Arrow key to move the cursor backwards, character by character, as desired. Roadie HD+35K User Manual 3-19 020-100340-02 Rev. 1 (01-2010)

  • Page 86: Editing Numerical Values

    Once you enter the first digit, this digit over-writes the current entry. If you press any non-numbered keys, the number entered up to that point is accepted, and updated as the new value. 3) Press E cancel editing of numerical values. 3-20 Roadie HD+35K User Manual 020-100340-02 Rev. 1 (01-2010)

  • Page 87: Adjusting The Image

    (aspect ratio), move the image to a specific area of the screen, and refine other related parameters. Use Size and Position controls to match the image precisely to the screen used at the site. Roadie HD+35K User Manual 3-21...
  • Page 88 "square" aspect ratio than that of the projector will be maximized to approximately 1080 pixels from top-to-bottom, with the image centered between black side bars. Refer to Default Option below. 3-22 Roadie HD+35K User Manual 020-100340-02 Rev. 1 (01-2010)
  • Page 89 Size, Vertical Stretch, H-Position, V-Position or Blanking do not correspond to those for a preset. This option is not a choice in the Resize Presets drop-down list. Roadie HD+35K User Manual 3-23 020-100340-02 Rev. 1 (01-2010)
  • Page 90 Full Height Option Full Height • Select to fill the display from top-to-bottom. Depending on the source, this may create borders. “Full Height” With 1400 X 1050 input 2048 Image 1080 1080 1400 3-24 Roadie HD+35K User Manual 020-100340-02 Rev. 1 (01-2010)
  • Page 91 Adjust pixel phase when the image (usually from an RGB source) still shows shimmer or "noise" after pixel tracking is optimized. Pixel phase adjusts the phase of the pixel-sampling clock relative to the incoming signal. Roadie HD+35K User Manual 3-25 020-100340-02 Rev. 1 (01-2010)
  • Page 92 2048 x 1080, the remaining active input window is 1848 x 1080. When using a video source at INPUT 3 or INPUT 4, the default blanking of "0" defines an active input window of 720 x 483for NTSC video. 3-26 Roadie HD+35K User Manual 020-100340-02 Rev. 1 (01-2010)

  • Page 93: Image Settings Menu

    Options not available for the projector model or source are disabled and appear dim (gray). Figure 3-17 Image Settings Menu Roadie HD+35K User Manual 3-27 020-100340-02 Rev. 1 (01-2010)
  • Page 94 "noisy" video signal, or if a graphics signal appears overly "soft". Both instances indicate that "Filter" may be set to the wrong option. 3-28 Roadie HD+35K User Manual 020-100340-02 Rev. 1 (01-2010)
  • Page 95 Delete the check mark if a decoded video image exhibits strange color artifacts such as stripes in highly saturated colors, indicating an incompatibility between this source and the AGC. Roadie HD+35K User Manual 3-29 020-100340-02 Rev. 1 (01-2010)
  • Page 96 HDTV signals connected to Input 3 or 4. For best results, adjust the tint while displaying an external test pattern-otherwise, it is recommended that tint remain at its default setting. 3-30 Roadie HD+35K User Manual 020-100340-02 Rev. 1 (01-2010)
  • Page 97 • B RIGHT = 50 (approx.) NOTE: Not required for "Auto" adjustment. 2. Check the color temperature setup using an internal grayscale test pattern, making sure to obtain a neutral grayscale. Roadie HD+35K User Manual 3-31 020-100340-02 Rev. 1 (01-2010)
  • Page 98 NOTE: The "Peak Detector" initially renders the grayscale as a uniform gray field before adjustment. Color Enable 2. Display one primary color (use the option to automatically select as you go). 3-32 Roadie HD+35K User Manual 020-100340-02 Rev. 1 (01-2010)
  • Page 99 Roadie HD+35K User Manual 3-33 020-100340-02 Rev. 1 (01-2010)
  • Page 100 5-10 lines or so of the Frame Delay setting. If a frame is lost or "dropped", the slidebar moves suddenly and the values change, indicating that the frame input is no longer equal to the output. Reserved. No function. 3-34 Roadie HD+35K User Manual 020-100340-02 Rev. 1 (01-2010)

  • Page 101: Using Inputs And Channels

    Free Run drift in phase relative to the output. forces the output to run at a 60Hz frame rate. Warp Latency. Requires optional Christie TWIST module. See Christie TWIST User's Manual provided with the module. Advanced Image Settings Secondary Menu Motion Filter.
  • Page 102 You can have numerous distinct channels available for the same input, any of which can be selected by using the C key on the remote, followed by the 2-digit channel number. 3-36 Roadie HD+35K User Manual 020-100340-02 Rev. 1 (01-2010)

  • Page 103: Creating A New Channel

    Section 3.7.7 Editing a Channel Setup later in this section. Such a channel can still be selected by entering its number as shown below. Roadie HD+35K User Manual 3-37 020-100340-02 Rev. 1 (01-2010)

  • Page 104: Available Channels In The Channel Setup Menu

    If you have more than a handful of channels, use the L and R NOTE: IGHT Arrow keys to see the remaining channels not visible in the initial display of channels. 3-38 Roadie HD+35K User Manual 020-100340-02 Rev. 1 (01-2010)

  • Page 105: Copying A Channel

    01-99. If you change your mind and do not want to copy the current channel, press E to cancel and return to the previous menu. Roadie HD+35K User Manual 3-39 020-100340-02 Rev. 1 (01-2010)

  • Page 106: Deleting One Or More Channels

    Channel Setup menu. NOTE: For any deletion, a confirmation box appears to ensure that you really want to delete the channel(s). Select "Cancel" (default) if you don't want to delete after all. 3-40 Roadie HD+35K User Manual 020-100340-02 Rev. 1 (01-2010)

  • Page 107: Editing A Channel Setup

    If not in a channel change. checked, the projector can locate the selected channel only when it is directly selected via the key on the remote. Roadie HD+35K User Manual 3-41 020-100340-02 Rev. 1 (01-2010)

  • Page 108: Adjusting System Parameters And Advanced Controls

    NOTE: Unsaved display adjustments may be lost. Set Date & Time Enter/read the current year-month-day and hour-minute-second. Changes here reset the projector's real-time clock. 3-42 Roadie HD+35K User Manual 020-100340-02 Rev. 1 (01-2010)
  • Page 109 • Startup Only -The splash screen logo appears at projector startup only. • Startup and No Signal - A splash screen appears at startup only if there is no source signal. Roadie HD+35K User Manual 3-43 020-100340-02 Rev. 1 (01-2010)

  • Page 110: System Configuration (Communication)

    Section 3: Operation To replace the default "Christie logo" splash screen (or other) with one of your own, use the KoRE Librarian to download the desired .bmp to the projector. This overwrites the current splash screen content in projector memory.
  • Page 111 On networks without a DHCP server, or to simply override the automatic DHCP server function, clear the check box, and enter the new "IP Address" settings desired. Remember that only a 0.0.0.0 address triggers the DHCP addressing service only when the DHCP check box is enabled. Roadie HD+35K User Manual 3-45 020-100340-02 Rev. 1 (01-2010)
  • Page 112 Base + 4 Lens – Vertical * † Lens Down 1 – 254 Stop Lens Up Base + 5 Lens – Horizontal * Lens Right † 1 – 254 Stop Lens Left 3-46 Roadie HD+35K User Manual 020-100340-02 Rev. 1 (01-2010)
  • Page 113 None Slider Lock * Functions are only active when the is set to Unlocked. † Lens functions have no effect on the Roadie HD+35K. NOTE: It is important to make sure the channels DO NOT overlap another device. Example: Good...

  • Page 114: System Configuration (Geometry & Color)

    Keystone NOTE: If the optional Christie TWIST module is installed, this option is Keystone and Warping, and activates a secondary menu for defining custom image shapes. Please refer to documentation included with your Christie TWIST module.
  • Page 115 If the Christie TWIST module is installed, the enable check box changes to a list giving the option to choose from several different uniformity maps. Please refer to documentation included with your Christie TWIST module.
  • Page 116 "User" color gamuts needed for your Advanced Image Settings environment and applications. Apply at any time in the menu. 3-50 Roadie HD+35K User Manual 020-100340-02 Rev. 1 (01-2010)

  • Page 117: System Configuration (Diagnostics / Calibration)

    3.8.4 System Configuration (Diagnostics / Calibration) Test Pattern Choose the desired internal test pattern to display, or select OFF to turn off a test pattern. Alternatively, use the key for cycling through test patterns. Roadie HD+35K User Manual 3-51 020-100340-02 Rev. 1 (01-2010)
  • Page 118 6. Set "Level Value" to ~800. The image should now be black-and-white. 7. Repeat Steps 4 and 5, but adjusting gain. 8. Repeat Steps 3-7 for all remaining colors. Your RGB source should now be OK. 3-52 Roadie HD+35K User Manual 020-100340-02 Rev. 1 (01-2010)

  • Page 119: Peak Detector

    This is critical to the projector functioning properly. Failure to do so could result in damage to the lens mount, the projector, or the projection lens. Roadie HD+35K User Manual 3-53 020-100340-02 Rev. 1 (01-2010)

  • Page 120: System Configuration (Optional Input Modules)

    PIP and Seamless Switching cannot be used together. For example, fading a pair of PIP images into a new display from a different source is not possible. 3-54 Roadie HD+35K User Manual 020-100340-02 Rev. 1 (01-2010)

  • Page 121: Controlling Your Pip Image

    3.9.1 Controlling Your PIP Image NOTE: Controls for the primary image are all accessed through the Main menu. To control the secondary (PIP) image, access picture controls through the PIP and Switching menu. Roadie HD+35K User Manual 3-55 020-100340-02 Rev. 1 (01-2010)
  • Page 122 Set the desired aspect ratio of your PIP image to "Default" or "Anamorphic". Refer back to Section 3.6.3 Image Settings Menu for details. Advanced Size and Position Refer back to Advanced Size and Position Secondary Menu for details. 3-56 Roadie HD+35K User Manual 020-100340-02 Rev. 1 (01-2010)

  • Page 123: Working With The Lamp

    "Lamp Size" of 2000, 3000, 4500 or 6000 watts, depending on its most recent setting (factory default=6000). Select the lamp that is currently installed. If you are unsure, a Christie accredited service technician must unlock the lamp door, and look at the lamp.

  • Page 124: Lamp Cable Lengths

    3000 4500 on the 6000 standard IR remote Or standard Christie service password. Figure 3-33 Checking/Setting Lamp Size NOTES: 1) Setting the lamp size requires a Christie accredited service technician. The required password for access is a service option that may be turned off.

  • Page 125: Turning The Lamp On/Off

    1. Press the POWER key on either the projector's built-in keypad or standard IR remote. 2. WAIT for fans to continue running for 10 minutes to cool the lamp. 3. Proceed with full shutdown of the system, if desired. Roadie HD+35K User Manual 3-59 020-100340-02 Rev. 1 (01-2010)

  • Page 126: If The Lamp Will Not Turn On

    (unless it has been turned off) and select the lamp that is currently installed. If the lamp still does not ignite, a Christie accredited service technician should check all lamp connections and, if OK, replace the lamp. Refer to Section 5 Troubleshooting.
  • Page 127 Max Brightness mode, and will shorten lamp life. NOTE: Power level can be set only if the lamp is in "Power" mode. Roadie HD+35K User Manual 3-61 020-100340-02 Rev. 1 (01-2010)
  • Page 128 Lamp Hours timer resets to "0". Lamp Mode and Lamp Limit remain as they were for the previous lamp, and can be changed at any time. Figure 3-36 Recording the New Lamp Serial Number 3-62 Roadie HD+35K User Manual 020-100340-02 Rev. 1 (01-2010)

  • Page 129: Adjusting Lamp Position (Lamploc™)

    Auto button, but this peak may not be centered on the lamp curve thus lamp performance may not be optimized. The Do Auto button also utilizes filtering to eliminate the effects of any lamp flicker. In general, use the individual slidebars if you feel it is unavoidable. Roadie HD+35K User Manual 3-63 020-100340-02 Rev. 1 (01-2010)

  • Page 130: Stand-By Mode

    Lamp power is reduced to 60% of the maximum rating for 4.5 and 6.0 kW lamps, or 75% of the maximum rating for 2.0 and 3.0 kW lamps. Upon opening the shutter and restoring the image, the lamp power returns to its previous setting. 3-64 Roadie HD+35K User Manual 020-100340-02 Rev. 1 (01-2010)

  • Page 131: How Old Is My Lamp

    Alternatively, you may want to add projectors to an Ethernet network. NOTE: Refer back to Section 3.8 Adjusting System Parameters and Advanced Controls for complete information about communicating with multiple projectors. Roadie HD+35K User Manual 3-65 020-100340-02 Rev. 1 (01-2010)

  • Page 132: Matching Colors In Multiple Screens

    "Max Drives" color gamut for this projector. Write down the values shown in one (any) of the displays. Refer to Figure 3-38. Or use "Copy From" to copy these into a "User" gamut for this projector. 3-66 Roadie HD+35K User Manual 020-100340-02 Rev. 1 (01-2010)
  • Page 133 5. In each projector, select a "User" color adjustment (1-4) to enable Color Adjustments by X, Y changes. Then enter your recorded x/y values into each menu. Figure 3-39 Copy X/Y Values into All Projectors NOTE: MAGENTA, CYAN, AND YELLOW ARE NO LONGER USED. Roadie HD+35K User Manual 3-67 020-100340-02 Rev. 1 (01-2010)
  • Page 134 Color Adjustments by X, Y menu. For best results, the Color Adjustments by X, Y menu should be used first. Figure 3-40 Color Matching Using Color Saturation Menu 3-68 Roadie HD+35K User Manual 020-100340-02 Rev. 1 (01-2010)

  • Page 135: Achieving Brightness Uniformity

    1. Adjust primary colors (refer to Section 3.12.1 Matching Colors In Multiple Screens) to ensure matched overall color temperatures and light output between screens. IMPORTANT Double-check that all WHITES and LIGHT OUTPUT are well-matched. Roadie HD+35K User Manual 3-69 020-100340-02 Rev. 1 (01-2010)
  • Page 136 Compare using a white field only, and take note of any areas that do not match the center. Also decide if any screen exhibits a more obvious color shift than other screens. Begin with this screen in Step 2b. 3-70 Roadie HD+35K User Manual 020-100340-02 Rev. 1 (01-2010)
  • Page 137 I.e., the best uniformity is a compromise between the brightest and darkest areas of the screen. • Adjust corner White Uniformity last-each corner adjustment affects only this quadrant. • Repeat for each screen. Roadie HD+35K User Manual 3-71 020-100340-02 Rev. 1 (01-2010)

  • Page 138: Edge Blending

    3.12.3 Edge Blending Christie Edge Blending is an innovative set of software functions that can quickly and easily blend whitelevels along the edges of multiple adjacent projected images to create a single seamless larger image. What is a Blend? In simple terms, a blend appears as a gradient strip along an edge of a projected image.
  • Page 139 Warped Blends. When using the optional Christie TWIST module for warping images on to curved screens, work with its separate Christie TWIST PC application to create more specialized blends required. Such a blend can vary along its length to compensate for curves. Once downloaded to the projector, simply apply the desired custom "user"...
  • Page 140 • Show Blending Overlap turns your defined blend width area to solid gray so that two adjacent images can be seamlessly aligned simply by overlapping their gray bars, if needed. Toggle the Show Blending Overlap OFF to reactivate the blend effect. 3-74 Roadie HD+35K User Manual 020-100340-02 Rev. 1 (01-2010)
  • Page 141 NOTE: If the optional Christie TWIST module is installed, a drop-down list replaces this check box (see right). Select the desired user-defined blend created for your current warp; no further blending at the projector is required.

  • Page 142: Remote Control Of The Projector

    As an alternative to using a remote, most projector functions can be controlled remotely, typically at a controller such as a PC, via 1) simple bi-directional ASCII messaging on an Ethernet or serial communication link or 2) a web interface or "ChristieNET" on an Ethernet network. 3-76 Roadie HD+35K User Manual 020-100340-02 Rev. 1 (01-2010)

  • Page 143: Working With The Lenses

    Via ASCII Messenging. Connect a serial link between your controller and the RS-232 or RS-422 port (recommended), or open an Ethernet socket (i.e., Telnet) between your controller and the valid projector address. Valid ASCII codes and messages are documented in the Christie Serial Communications document available on the Christie website.

  • Page 144: Anamorphic Lens

    The message "No signal" occurs when there is no source signal detected at the selected input-both HSYNC and VSYNC are inactive, and the screen background is black. Connect or correct the signal, or try another input. 3-78 Roadie HD+35K User Manual 020-100340-02 Rev. 1 (01-2010)

  • Page 145: System Warnings/Errors

    Both types of messages are accompanied by a numerical error code on the "Status" LED and a related text message in the LCD Status Display window. A system malfunction can be cleared by pressing E twice from the presentation level, but may indicate the need for service by a qualified Christie service technician. NOTE: System messages appear on-screen only if Display Error Messages has been set to "Screen"...
  • Page 146 GENERAL Software error. Contact dealer/factory. CRC error in flash ROM. Download new software. Engineering-only programming is complete. Call Christie, replace TIPM. Attempting to download s/w code without being in boot mode Invalid interrupt. Power off/on. If persists, contact dealer/factory. User has forced system to stay in boot mode...
  • Page 147 Red modular Formatter link failure Green modular Formatter link failure Blue modular Formatter link failure Modular Formatter Architecture error Modular Formatter / DMD mismatch Modular Formatter sequence mismatch EFIB not responding to I C messages Roadie HD+35K User Manual 3-81 020-100340-02 Rev. 1 (01-2010)
  • Page 148 BACKPLANE OR OPTIONAL MODULES Unable to program the optional interface module Unable to power the optional interface module Unable to program the Backplane Unable to program the Warp Module option (Christie TWIST) 3-82 Roadie HD+35K User Manual 020-100340-02 Rev. 1 (01-2010)

  • Page 149: Safety Warnings And Guidelines

    4.1.2 AC / Power Precautions Do not attempt operation if the AC supply is not within the specified voltage range. Shock Hazard. Disconnect projection head and ballast from AC before opening any enclosure. Roadie HD+35K User Manual 020-100340-02 Rev. 1 (01-2010)

  • Page 150: Lamp Precautions

    Do not overload power outlets and extension cords as this can result in fire or shock hazards. NOTE: Only a Christie accredited service technician is permitted to open any enclosure on the product, and only if the AC has been fully disconnected from the projection head and ballast.

  • Page 151: Ventilation

    A failure of the liquid cooling system will trigger an over-temperature alarm condition, clearly indicated with status displays/lights at the rear of the projector. Filling the Cooler Fill approximately 1/2 full. Fill with Christie's 50/50 mix of distilled water and ethylene glycol. Top up as necessary, making sure not to over fill. IMPORTANT! Whenever coolant has been added or replaced, check for a possible airlock at the next projector power-up.
  • Page 152 1. Brush most of the dust off with a camelhair brush and/or blow dust away with compressed air. 2. If some dust remains, just leave as is-air circulating at the lamp is unfiltered, so some dust is inevitable. Avoid unnecessary cleaning. Roadie HD+35K User Manual 020-100340-02 Rev. 1 (01-2010)

  • Page 153: Other Components

    4.4.1 Lamp Replacement Procedure NOTE: Section 6 For this procedure, you need a compatible Christie Xenon CDXL or CXL lamp as shown in Specifications . NEVER install a lamp intended for a different projector. Make sure to use the correct wattage lamp supplied by Christie.
  • Page 154 (refer to Figure 4-1, left portion). Hand-tighten only. IMPORTANT! Handle by the cathode/anode end shafts only, never the glass. Do not over-tighten. Do not stress the glass. Roadie HD+35K User Manual 020-100340-02 Rev. 1 (01-2010)
  • Page 155 Proper electrical contact prevents resistance in the lamp connectors. If you accidentally touch the quartz body of the lamp with your bare hands, clean the surface as described in 4.3, Maintenance and Cleaning Roadie HD+35K User Manual 020-100340-02 Rev. 1 (01-2010)
  • Page 156 6000 (Factory default) watts, depending on its last setting. b. Enter either the Lamp Password shown in Figure 3-34, or the Christie service password. A password is required unless the "Enable Password" service option has been turned off. c. Use the R...

  • Page 157: Filter Replacement Procedure

    2. Once OFF, allow the fans to run at least 10 minutes for cooling the lamp. 3. Set the breaker/power switch to OFF. 4. To open/remove the filter compartment door, loosen 2 corner screws using a flat screwdriver, and lift off door. Roadie HD+35K User Manual 020-100340-02 Rev. 1 (01-2010)

  • Page 158: Replacing A Lens

    5. Remove the air filter as follows: Using your fingers, pull out top of filter to remove, as shown. Only use Christie filters. Never operate the projector without the filter installed. Replace/Install New Air Filter 1. To replace or install a new filter, place the top of the air filter inside the air filter compartment and slide all the way up behind the tabs, then push the bottom of the air filter in.
  • Page 159 Make sure the lens UP label faces up, otherwise boresight may need readjustment. Keep the lens safety tether attached to the projector ‘s handle or FredFrame™ for use with any lens ring clamp. This cable MUST be used with a flown projector. Roadie HD+35K User Manual 4-11 020-100340-02 Rev. 1 (01-2010)

  • Page 161: Power

    • Listen for a “clicking” noise to indicate the ballast is attempting to strike the lamp. If you do not hear anything, it may indicate a problem with the ballast (a Christie accredited service technican is required to resolve the issue).

  • Page 162: Flicker, Shadows Or Dimness

    • Increase lamp power, if possible. Lamps which are near end of life may not operate reliably at lowest power range. • Fold mirror misalignment (a Christie accredited service technican is required to resolve the issue). 5.2.4 LampLOC™ Does Not Seem to Work...

  • Page 163: Calibrating The Lens Mount

    • Ensure a full black test pattern is not selected for display. • Check connections. 5.5.2 Severe Motion Artifacts Most likely there is a synchronization problem with reversed 3-2 drop-down in 60Hz-to-24Hz film-to-digital conversion in your source. The display file needs correction. Roadie HD+35K User Manual 020-100340-02 Rev. 1 (01-2010)

  • Page 164: Image Appears Vertically Stretched Or 'Squeezed' Into Center Of Screen

    5.5.3 Image Appears Vertically Stretched or ‘Squeezed’ into Center of Screen Source data converted from film and “pre-squeezed” for Roadie HD+35K display format may require use of an anamorphic lens (or resizing) to regain full “scope” image width and proper proportions.

  • Page 165: Display Appears Compressed (Vertically Stretched)

    • If the distance between the input source device and the projector is greater than 25 feet, signal amplification/ conditioning may be required. • If the source is a VCR or off-air broadcast, detail may be set too high. Roadie HD+35K User Manual 020-100340-02 Rev. 1 (01-2010)

  • Page 167: Display

    6 Specifications This section provides detailed Roadie HD+35K specifications. Due to continuing research, specifications are subject to change without notice. 6.1 Display 6.1.1 Panel Resolution and Refresh Rate Pixel format (H x V) on 3 DMDs 2048 x 1080 Refresh rate, 2D displays 23.97 - 65 Hz...

  • Page 168: Lenses

    6.2 Lenses IMPORTANT! Use the lens and screen size to calculate the precise throw distance using the tables provided in the Dealer Section of the Christie Website, PN 020-100395-xx . Due to lens manufacturing tolerances for lens focal length, actual throw distance and vary ±5% between lenses with the same nominal throw ratio.

  • Page 169: Analog: Sync (Interlaced Or Progressive Scan Format)

    SMPTE 259M (13.5 MHz clock modes only) SMPTE 292M and 372M (dual link) Signal types / color spaces Serial digital YCbCr (4:2:2 only) Pixel clock rates supported 13.5 MHz, 74.25 MHz, 74.25/1.001 MHz Roadie HD+35K User Manual 020-100340-02 Rev. 1 (01-2010)

  • Page 170: Control

    Max. baud rate 115200 6.4.5 RS-422 Serial Input Number of connectors Connector type (side input panel) 1 x 9-pin subminiature D Connector type (rear connector panel) 1 x 6-pin XLR Max. baud rate 115200 Roadie HD+35K User Manual 020-100340-02 Rev. 1 (01-2010)

  • Page 171: Gpio Input

    Voltage range, nominal 200 – 240 VAC ±10% Line frequency, nominal 50 – 60 Hz AC input rating 10 A Max. inrush current 35 A Max. current consumption Max. power consumption 700 W Roadie HD+35K User Manual 020-100340-02 Rev. 1 (01-2010)

  • Page 172: Kw 3-Phase Ballast (38-814001-51)

    Stand-by lamp power level for 4.5/6.0 60% of lamp’s maximum current rating Stand-by lamp power level 2.0/3.0 75% of lamp’s maximum current rating Motorized adjustment of position 3-axis, 0.25” range for each Roadie HD+35K User Manual 020-100340-02 Rev. 1 (01-2010)

  • Page 173: Reflectors

    10°C to 35°C (50°F to 95°F) Humidity (non-condensing) 20% to 80% Altitude 0 – 3000 meters Tilt, any angle 15° max. 6.12.1 Non-Operating Environment Temperature -25C to 65°C (-13°F to 149°F) Humidity (non-condensing) 0% to 95% Roadie HD+35K User Manual 020-100340-02 Rev. 1 (01-2010)

  • Page 174: Weight & Size

    145 lb (66 kg) FredFrame™ 166 lb (76 kg) Installed Weight Projection Head 460 lb (209.1 kg) Ballast 110 lb (50 kg) FredFrame™ 110 lb (50 kg) Figure 6-1 Overall Size Dimension Roadie HD+35K User Manual 020-100340-02 Rev. 1 (01-2010)

  • Page 175: Standard And Optional Components

    25 ft cable for conversion of standard IR remote to wired operation Line Cord, 10-foot, 15 amp, North American 220V Face shield (required for lamp handling) Dual SD/HD-SDI input module (38-804656-xx) Roadie HD+35K User Manual Misc. hardware, including Allen Keys 6.13.2 Optional (Sold Separately)
  • Page 176 Section 6: Specifications Other Remote IR Sensor - communication cables Ethernet, RS-232, and RS-422 Compact/Lite remote 03-900566-XX Christie TWIST Module for arbitrary image warping and edge blending 108-103001-XX FredFrame™ Rigging Frame 38-814007-XX Rigging Clamps for flying projection head by handles 113-102101-XX...

  • Page 177: Serial Links To Projector

    From projector to computer (RS-232) For computers having a 9-pin "AT" type serial port Standard RS-232 cable, with 9-Pin D-connectors MALE FEMALE Projector Computer RS-232 IN Shielded Multi-conductor Cable (male) (female) Shield Shield Roadie HD+35K User Manual 020-100340-02 Rev. 1 (01-2010)
  • Page 178 Generally, the +12V (pin 5) is not connected. Consult the documentation for your device. • Connect Tx+ to Rx+ Tx – • Connect Tx- to Rx- • Connect Rx+ to Tx+ Rx – +12V • Connect Rx- to Tx- Roadie HD+35K User Manual 020-100340-02 Rev. 1 (01-2010)
  • Page 179 Shield Do not connect +12V at pin 5, or damage to equipment may result! Shield Shield Wiring: Extension cable FEMALE MALE another cable Tx– Tx – Rx– Rx– +12V +12V Shield Shield Roadie HD+35K User Manual 020-100340-02 Rev. 1 (01-2010)
  • Page 180 Appendix A: Serial Communication Cables PROJ 2 PROJ 1 From projector to projector via RS-232 Standard RS-232 cable,with 9-Pin D Connectors FEMALE MALE Projector Projector RS-232 OUT RS-232 IN Shielded Multi-conductor Cable (male) (female) Shield Shield Roadie HD+35K User Manual 020-100340-02 Rev. 1 (01-2010)

  • Page 181: Onscreen Menu Tree

    Appendix B: Menu Tree B.1 OnScreen Menu Tree Provides a graphical representation of the software menu structure for the Roadie HD+35K. This allows you to quickly locate and navigate to a specific menu, and associated options/secondary menus. Roadie HD+35K User Manual...

  • Page 187: Introduction

    A GIO command can also set the state of each pin as high or low. By default, the state of each pin is high. The voltage applied to pins in the high state is + 3.3V. Roadie HD+35K User Manual 020-100340-02 Rev. 1 (01-2010)

  • Page 188: Query Command

    Set pin #2 configuration as input (RTE G 2 H “(PWR 1)”) Power on when pin #2 set to high (RTE G 2 L “(PWR 0)”) Power off when pin #2 set to low Roadie HD+35K User Manual 020-100340-02 Rev. 1 (01-2010)

  • Page 189: Dvi Input Module

    (or both) of the module’s BNC outputs. Refer to Section 2.5 Connecting Sources for more information. NOTE: Older Input cards not listed may be supported by the Roadie HD+35K. Roadie HD+35K User Manual 020-100340-02 Rev. 1 (01-2010)
