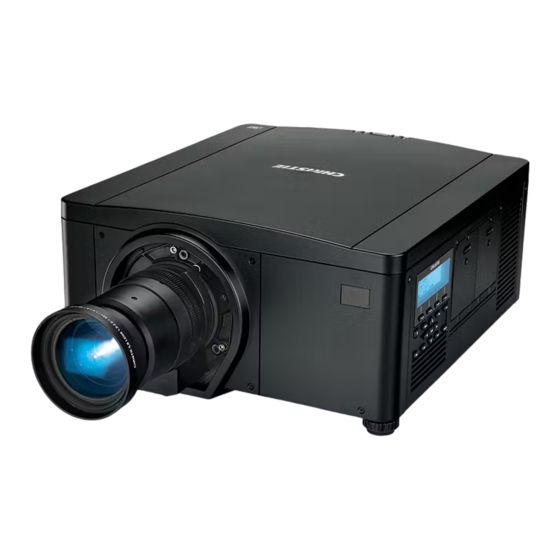

Christie M Series Setup Manual

M series
Hide thumbs Also See for M Series:
Table of Contents

Advertisement

M Series
S E T U P G U I D E
020-100011-04

Advertisement

Table of Contents
loading

Summary of Contents for Christie M Series

  • Page 1 M Series S E T U P G U I D E 020-100011-04...
  • Page 3 M Series S E T U P G U I D E 020-100011-04...
  • Page 4 Every effort has been made to ensure accuracy, however in some cases changes in the products or availability could occur which may not be reflected in this document. Christie reserves the right to make changes without notice or obligation.
  • Page 5: Table Of Contents

    3.1.1 Remote Keypad Commands ....................3-4 Power ON/OFF ........................3-4 Test ............................3-4 Auto .............................3-4 Channel ..........................3-5 Slot 1, 2, 3, 4 .........................3-5 Input ............................3-5 PIP ............................3-5 Swap .............................3-5 Contrast ..........................3-5 Bright ............................3-5 Gamma ..........................3-6 Number Keys ........................3-6 M Series Setup Guide 020-100011-04 Rev. 1 (07-2010)
  • Page 6 5.7.6 The Upper Portion of the Display is Waving, Tearing or Jittering........5-4 5.7.7 Portions of the Display are Cut Off or Warped to the Opposite edge ........ 5-4 5.7.8 Display Appears Compressed (Vertically Stretched) ............5-4 M Series Setup Guide 020-100011-04 Rev. 1 (07-2010)
  • Page 7 6.3 Control Signal Compatibility ......................6-1 6.3.1 Projector Control........................6-1 6.4 Power Requirements........................6-2 6.4.1 Lamp Specification ......................6-3 6.4.2 Accessories and Service Components .................6-3 Lens Throw Ratio .........................6-4 6.5 Regulatory ...........................6-4 A.1 GPIO Port ...........................A-1 Configuring the GPIO ......................A-2 M Series Setup Guide 020-100011-04 Rev. 1 (07-2010)
  • Page 9: Purchase Record And Service Contacts

    Purchase Record and Service Contacts Whether the projector is under warranty or the warranty has expired, Christie’s highly trained and extensive factory and dealer service network is always available to quickly diagnose and correct projector malfunctions.
  • Page 10: Key Features

    • Control with remote keypad, wired remote, or built-in keypad • Four input slots for Optional Input Modules Refer to 6 Specifications for a complete list of technical specifications. Table 1.3 M Series Projectors Model Name Part Number Model Name (3D) Part Number...
  • Page 11: General Precautions

    Position all cables where they cannot contact hot surfaces or be pulled or tripped over. All installation and maintenance procedures must be performed by a Christie accredited service technician. Projector must be operated in an environment that meets operating specifications, as...
  • Page 13: Projector Quick Setup And Installation

    Remove the rear lens cap from the lens. Keep the front lens cap on the lens to protect it IMPORTANT! during installation. 1. Rotate the lens clamp to the OPEN position, see Figure 2-1. 2-1 L IGURE OCKING LAMP M Series Setup Guide 020-100011-04 Rev. 1 (07-2010)
  • Page 14 IGURE 5. For added stability such as motion applications, fasten the security screws provided with the lens-mount. NOTE: There are two types of lens plate models. See Figure 2-5 & Figure 2-6. M Series Setup Guide 020-100011-04 Rev. 1 (07-2010)
  • Page 15: Step 2 - Positioning The Projector

    DVI-I connector or an analog video signal to the VGA connector. The DVI signal may contain HDCP (High-Bandwidth Digital Content Protection). • Twin HDMI Input Card, connect HDMI (High-Definition Multimedia Interface) cable to one of the two inputs, 1-IN or 2-IN. M Series Setup Guide 020-100011-04 Rev. 1 (07-2010)
  • Page 16: Step 4 - Connecting The Line Cord

    STEP 7- Adjusting Image Adjust the image settings, such as Brightness, Contrast, Gamma, Focus, Zoom etc. using the direct keys on the remote or built in keypad. 3 Operation for more details. NOTE: M Series Setup Guide 020-100011-04 Rev. 1 (07-2010)
  • Page 17: Detailed Setup And Installation

    118-100108-XX. This mounting is recommended for those that want the projector out of plain view or have limited amount of space for the projector. For more information, contact your dealer. Use only the Christie approved ceiling mount kit designed for your projector. Refer to the installation instructions and safety guidelines provided in the kit.
  • Page 18: Folded Optics

    If boresight is required see step 3. 3. If boresight is required, refer to Figure 2-9 to understand how the adjustment screws on the lens mount affect the corresponding cross-hairs on the test pattern. M Series Setup Guide 020-100011-04 Rev. 1 (07-2010)
  • Page 19 10). Position the setscrews flush with the front face of the lens mount plate and in contact with the inner lens mount plate (Figure 2-11). This may require adjusting both setscrews and capscrews. 10. If further action is required. Repeat #2. M Series Setup Guide 020-100011-04 Rev. 1 (07-2010)
  • Page 20: Powering Down

    Web User Interface (UI) 1. From the Main Tab, Select Power>OFF. A window will display for confirmation NOTE: on powering down (Figure 2-12). 2. Select Yes. 2-12 P IGURE OWERING NTERFACE M Series Setup Guide 020-100011-04 Rev. 1 (07-2010)
  • Page 21: Projector Communications

    • The Web page shows a warning that the Image processor card is upgrading. When this occurs, the projector should not be AC power cycled and the Image Processor card should not be removed. M Series Setup Guide 020-100011-04 Rev. 1 (07-2010)
  • Page 23: Using The Remote Keypad Or Built-In Keypad

    See the key descriptions provided for the remote keypad (Figure 3-1). Laser radiation is emitted from the laser diode in the remote. Do not look directly into the beam of the laser. M Series Setup Guide 020-100011-04 Rev. 1 (07-2010)
  • Page 24: Remote Keypad

    Section 3: Operation Remote Keypad 3-1 R IGURE EMOTE EYPAD M Series Setup Guide 020-100011-04 Rev. 1 (07-2010)
  • Page 25: Wired Remote

    Help key is still enabled if the OSD is enabled. It is only disabled when the entire OSD is set to OFF. M Series Setup Guide 020-100011-04 Rev. 1 (07-2010)
  • Page 26: Remote Keypad Commands

    Brightness Size and Blanking Auto Input Level (off) Vertical Stretch Detail (if video source) Position Filter Input Levels Luma Delay You must have an unlocked channel present to use Auto Setup. NOTE: M Series Setup Guide 020-100011-04 Rev. 1 (07-2010)
  • Page 27: Channel

    For best results, start high and decrease so that dark areas do not become fully black (i.e., “crushed”). Conversely, overly high brightness changes black to dark gray, causing washed-out images. M Series Setup Guide 020-100011-04 Rev. 1 (07-2010)
  • Page 28: Gamma

    Close the shutter to block the displayed image while maintaining access to projector functions. Opening the shutter restores the image. The LCD display shows the current state of the shutter. NOTES: 1) The shutter is open upon power-up. M Series Setup Guide 020-100011-04 Rev. 1 (07-2010)
  • Page 29: Function Key

    IGHT RROW list without having to first scroll through options or navigate within a menu, pull-down list or text box. M Series Setup Guide 020-100011-04 Rev. 1 (07-2010)
  • Page 30: Lens H And Lens V

    NTER use the arrow keys to access the remainder of the menu. Locked items or items that do not pertain to the current action or condition appear dimmed and cannot be selected. M Series Setup Guide 020-100011-04 Rev. 1 (07-2010)
  • Page 31: On-Line Help

    (applies only to options having their own key, such as Contrast, Brightness, Gamma, etc.). • For “blind” access, hide the entire menu system (see OSD key, above) and access using the proper sequence of key presses. M Series Setup Guide 020-100011-04 Rev. 1 (07-2010)
  • Page 32 RROW NTER RROW NOTES: 1) or R Press E to jump between pages in an extra long pull-down list. while in a pull- IGHT RROW down list to cancel any change. 3-10 M Series Setup Guide 020-100011-04 Rev. 1 (07-2010)
  • Page 33: Editing Text

    Press Enter When Finished: To accept edits and leave the edit window, press E NTER : Press E at any time to cancel changes and return to the previously defined text. NOTE M Series Setup Guide 3-11 020-100011-04 Rev. 1 (07-2010)
  • Page 34: Alarm Conditions

    OK soft key to enable the built-in keypad. 2) The alarm condition can also be viewed using the remote in the read only Status menu. 3-11 E IGURE XAMPLE OF LARM ONDITION 3-12 M Series Setup Guide 020-100011-04 Rev. 1 (07-2010)
  • Page 35: Filters

    4 Maintenance Filters 4.1.1 Optional Filters Use only special, high efficiency Christie approved filters. This projector is not equipped with fan finger guards. Keep fingers away from the fan blades when replacing filter. Dust Air Filter Monthly CHECK: Check projector air dust filters, at minimum, every month.
  • Page 36: Fog Filter

    NOTE: two-stage filter; the black activated charcoal layer faces out, and the white layer faces the projector. 4. Secure the filter door by tightening the 2 captive screws loosened in Step 1. M Series Setup Guide 020-100011-04 Rev. 1 (07-2010)
  • Page 37: Power

    1. Check lamp power through the remote keypad checking the Lamp menu or from the web user interface Advanced: Lamp menu. Try increasing lamp power. 2. Check for an alarm condition on the LCD keypad display. 3. Replace the lamp. M Series Setup Guide 020-100011-04 Rev. 1 (07-2010)
  • Page 38: Flicker, Shadows Or Dimness

    “OSD: off”. Press and hold the OSD soft key on the built-in keypad. The LCD now shows “OSD on” then press the menu key on the remote keypad. 2. Press and hold the OSD key on the remote keypad for 2-3 seconds, then press the menu key. M Series Setup Guide 020-100011-04 Rev. 1 (07-2010)
  • Page 39: Ethernet

    2. The horizontal and vertical scan frequency of the input signal may be out of range for the projector. Refer 6 Specifications for scan frequency ranges. 3. The sync signal may be inadequate. Correct the problem at the source. M Series Setup Guide 020-100011-04 Rev. 1 (07-2010)
  • Page 40: The Display Is Faint

    1. The color, tint, color space and/or color temperature settings may require adjustment at your input source. 2. Try Auto Setup. 3. Ensure signal connections are correct. 4. Ensure the proper channel for this source is being used. M Series Setup Guide 020-100011-04 Rev. 1 (07-2010)
  • Page 41: Display Is Not Rectangular

    “File Download” options are enabled, then click OK. Once the Warning window displays, click OK. 4. Using the Internet Option window, select Local intranet, then click Custom Level. Repeat Step 3. NOTE: Other versions of Internet Explorer may display different options. M Series Setup Guide 020-100011-04 Rev. 1 (07-2010)
  • Page 42 Section 6: Troubleshooting IGURE M Series Setup Guide 020-100011-04 Rev. 1 (07-2010)
  • Page 43: Feature Set

    6 Specifications This section provides detailed M Series features; including inputs, lamp, and power requirements. NOTE: Due to continuing research, detailed features are subject to change without notice. Feature Set 6.1.1 Air Filters (Optional) Coarse foam filter Filter media types...
  • Page 44: Power Requirements

    13.2 A 8.3 A 350 W WXGA 12.7 A 8.0 A 300 W WXGA 11.4 A 7.4 A 200 W WXGA 8.7 A 6.1 A 150 W WXGA 7.4 A 5.4 A M Series Setup Guide 020-100011-04 Rev. 1 (07-2010)
  • Page 45: Lamp Specification

    Lens ILS 7.5-11.2SX+/6.9-10.4HD 118-100116-XX Lens ILS 1.2SX+/1.1HD 118-100117-XX Lens ILS 1.2SX+/1.1HD 118-101103-XX Portrait Adapter 118-116109-XX Module IR Keypad w/Laser 002-100005-XX HARN Wired Keypad External 001-100704-XX User Manual 020-100009-XX Service Manual 020-100010-XX AutoSTACK 108-308101-XX M Series Setup Guide 020-100011-04 Rev. 1 (07-2010)
  • Page 46: Lens Throw Ratio

    This product conforms to the following regulations related to product safety, environmental requirements and electromagnetic compatibility (EMC). • FCC Part 15, Subpart B Class A; CISPR22/EN55022; CISPR24/EN55024 • UL 60950-1 First Edition; CAN/CSA-C22.2 No. 60950-1-03 First edition; • IEC60950-1:2001 • 2002/95/EC RoHS M Series Setup Guide 020-100011-04 Rev. 1 (07-2010)
  • Page 47: Gpio Port

    Pin 7 GPIO 3 Pin 8 GPIO 5 Pin 9 GPIO 7 The serial cable required for connecting the external device to the projector’s GPIO connector, must be compatible with the external device. M Series Setup Guide 020-100011-04 Rev. 1 (07-2010)
  • Page 48: Configuring The Gpio

    Reply of pin configurations - pins 2, 3 & 4 are Inputs, pins 6, 7, 8 & 9 are Outputs NOTE: The strings in the commands refer to pins 2, 3, 4, 6, 7, 8, 9 in order from left to right. M Series Setup Guide 020-100011-04 Rev. 1 (07-2010)
  • Page 50 Corporate offi ces Worldwide offi ces USA – Cypress United Kingdom Hungary/Eastern Europe Beijing ph: 714-236-8610 ph: +44 118 977 8000 ph: +36 (0) 1 47 48 100 ph: +86 10 6561 0240 Canada – Kitchener Germany Singapore Korea ph: 519-744-8005 ph: +49 2161 664540 ph: +65 6877 8737 ph: +82 2 702 1601...
