Step 5 – Replace the magazines in the library
After you have attached the magazine and cartridge slot labels,
replace the magazines in the library:
1. If necessary, manually rotate the drum to access the mounting
2. Locate the roller at the top of the magazine mounting plate.
3. Position the magazine so that the single mounting guide on
Roller
Mounting
guide
140
plate where you want to install the magazine.
the magazine is aligned with the roller on the mounting plate,

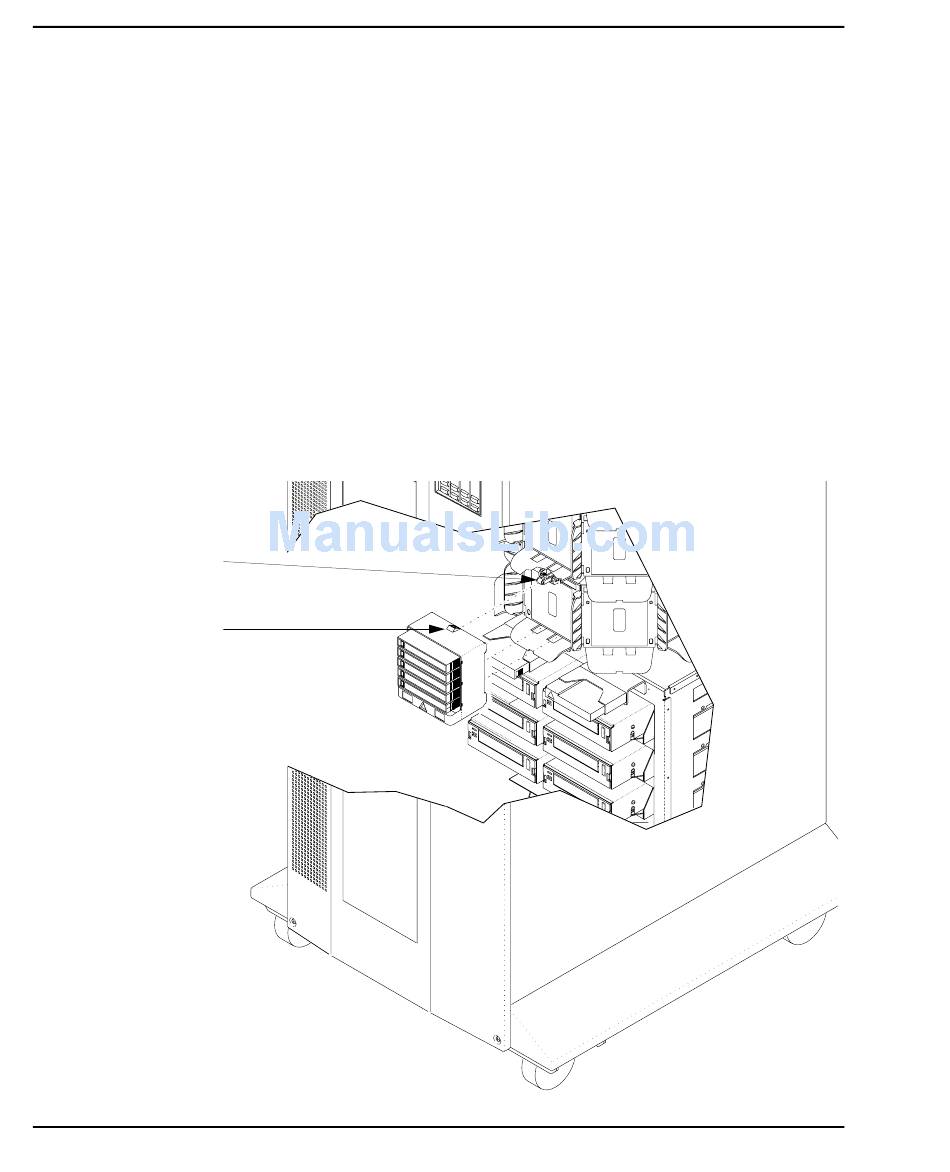

as shown in the figure below.
