Exabyte Mammoth Installation And Operation Manual

Hide thumbs Also See for Mammoth:
Table of Contents

Advertisement

Quick Links

Download this manual

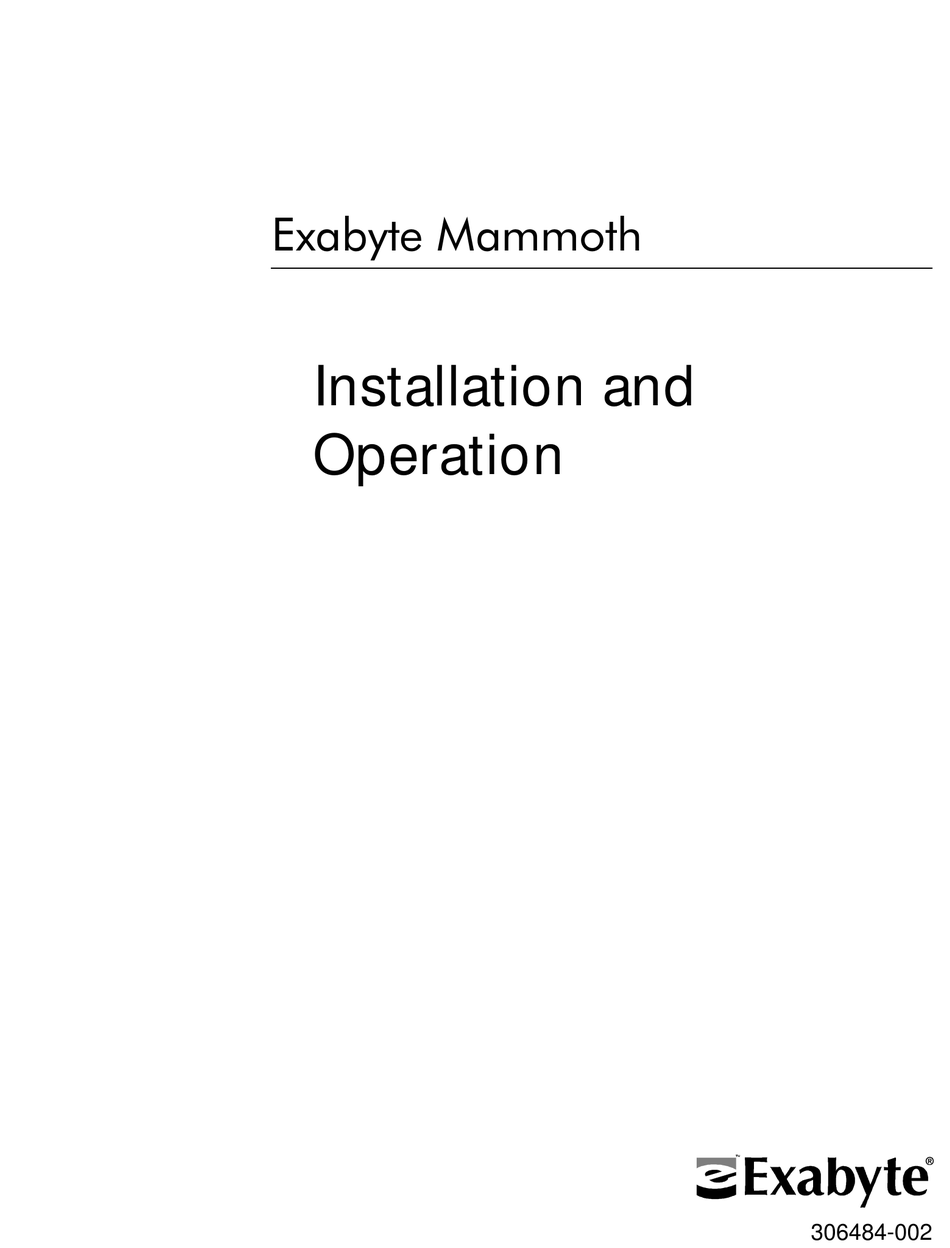

([DE\WH 0DPPRWK
Installation and
Operation
306484-002

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mammoth and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Exabyte Mammoth

Summary of Contents for Exabyte Mammoth

  • Page 1: Installation And Operation

    ([DE\WH 0DPPRWK Installation and Operation 306484-002...

  • Page 2: Revision History

    Copyright 1996–1999 by Exabyte Corporation. All rights reserved. This item and the information contained herein are the property of Exabyte Corporation. No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language in any form or by any means,...

  • Page 3: Safety Agency Standards

    Safety agency When purchased from Exabyte, both the internal model and the ® tabletop model of the Exabyte Mammoth Tape Drive comply with standards the following domestic and international product safety standards: • UL Standard 1950, 1st Edition, Safety of Information Technology Equipment •...
  • Page 4 FCC notice When installed in an Exabyte enclosure, the tabletop model has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 5: Table Of Contents

    Contents Welcome ..........1 Available SCSI configurations .
  • Page 6 Notes Exabyte M ammoth...

  • Page 7: Welcome

    The Mammoth tape drive provides storage capacities of up to 20 gigabytes (GB) native on a single 170m data cartridge. The Mammoth tape drive is available as an internal model that can be installed into an enclosure (shown on the right) or as a tabletop model housed in its own enclosure (shown on the left).

  • Page 8: Available Scsi Configurations

    Available SCSI configurations Available SCSI configurations The Mammoth tape drive is available in the following fast SCSI-2 configurations:  Narrow, single-ended  Wide, single-ended  Wide, high-voltage differential (HVD)  Wide, low-voltage differential (LVD) The LVD tape drive uses an LVD interface that is Ultra and Ultra2 SCSI compatible.

  • Page 9: Installing The Tape Drive

    Installing the tape drive Installing the tape drive If you have the internal model of the tape drive, follow the instructions below. If you have the tabletop model, follow the instructions beginning on page Installing the internal model in an enclosure ESD protection Protect the tape drive from electrostatic discharge (ESD) by following these precautions:...
  • Page 10 Installing the tape drive Location of components When installing the tape drive, refer to the following figures for the location of back-panel components. Narrow SCSI configuration: Wide SCSI configuration: Exabyte M ammoth...
  • Page 11 Installing the tape drive Step 1 – Set the SCSI ID To set the SCSI ID, remove and reposition the jumpers to obtain the desired ID. (If necessary, use a pair of flat-nose pliers to remove the jumpers.) The following figures show how to position the jumpers for narrow and wide SCSI configurations.
  • Page 12  You can connect single-ended and LVD SCSI tape drives to the same SCSI bus. Be aware that mixing the two types of devices will result in all devices on the bus operating as single-ended devices. Exabyte M ammoth...
  • Page 13 Installing the tape drive  Do not connect a single-ended wide or LVD tape drive to an HVD wide SCSI bus or your SCSI bus may hang.  The LVD tape drive uses an LVD interface that is Ultra and Ultra2 SCSI compatible.
  • Page 14 Use one of the terminator types listed in the following table. Important Exabyte recommends using active termination. Exabyte testing has shown that older passive termination does not provide rising edge transitions that are fast or clean enough at fast SCSI speeds.
  • Page 15 Installing the tape drive Step 3 – Connect ground To protect the tape drive from electrostatic discharge (ESD), you must attach the tape drive to the enclosure’s metal chassis (using the mounting holes shown on page 11). If you need additional chassis grounding, use either of the following methods: ...
  • Page 16 The tape drive performs its power-on self-test in about 30 seconds. When the tape drive is ready to accept a cartridge, the LEDs turn off. Important Do not insert a cartridge into the tape drive during the power-on self-test. The tape drive will eject the cartridge. Exabyte M ammoth...
  • Page 17 Installing the tape drive Step 5 – Mount the tape drive The single-ended and HVD internal tape drives meet industry-standard, 5.25-inch half-high form factor mounting requirements. The LVD internal tape drive is approximately 0.36 inches (9.2 mm) longer than the standard form factor. The tape drive can be mounted either horizontally or vertically and in a stationary or sliding position.
  • Page 18  Ensure that no objects such as screw heads, cables, or adjacent devices are pressing against the frame.  Do not obstruct the ventilation slots on the bottom and at the rear of the tape drive.  Allow sufficient space for accessing the tape drive’s front panel controls. Exabyte M ammoth...

  • Page 19: Installing The Tabletop Model

    Installing the tape drive Installing the tabletop model Location of components When installing the tabletop tape drive, refer to the following figure for the location of the back-panel components. Step 1 – Set the SCSI ID To set the SCSI ID for the tape drive, use a pen or other fine-tipped instrument to press the SCSI ID switch until the desired number is displayed (0–7 for narrow SCSI or 0–15 for wide SCSI).
  • Page 20 2. Affix the pads to each corner, approximately 1/ 2-inch (1.3 cm) from the sides. For a horizontal orientation, place the pads on the bottom. For a vertical orientation, place the pads on the right side (the side with the external vents). Exabyte M ammoth...
  • Page 21 Installing the tape drive CAUTION If you want to position the tape drive on its side, you must place the pads on the right side. Otherwise, the air flow vents will be blocked and the enclosed tape drive will overheat. Step 3 –...
  • Page 22 The product ID label, shown below, displays the SCSI configuration: LVD, DIFF (HVD), or SE. CAUTION To avoid damaging the tape drive, make sure the tape drive is powered off w hen you connect the cables on the back. Exabyte M ammoth...
  • Page 23 Installing the tape drive To connect the tape drive to the SCSI bus: 1. Connect a shielded SCSI cable to the back of the tape drive. CAUTION Connecting a single-ended wide or LVD tape drive to an HVD w ide SCSI bus may cause your SCSI bus to hang.

  • Page 24: Operating The Tape Drive

    The tape drive will eject the cartridge. Operating the tape drive This section describes how to operate the tape drive. The figure below shows the front-panel components used for tape drive operation. Exabyte M ammoth...

  • Page 25: Monitoring The Leds

    Operating the tape drive Note: In addition to the LEDs, some models of the Mammoth tape drive include an LCD (shown below) that displays alphanumeric information about the tape drive’s operational status. Monitoring the LEDs The LEDs have the following, general meanings: ...
  • Page 26 POST loaded) loaded) motion motion Top LED (Error/ Clean) Middle (Tape Ready) Bottom (Tape fast Motion) POST = power-on self-test Legend: = off = on = flash n/a = not applicable (may be any state) Exabyte M ammoth...

  • Page 27: Monitoring The Lcd

    Operating the tape drive Monitoring the LCD If the Mammoth tape drive includes an LCD, refer to the following table for a detailed list of messages that may appear. LCD M essage Description Reset messages. (When the tape drive is reset, the LCD cycles through the follow ing messages.) * * * RESETTING The first message during the power-on sequence.
  • Page 28 < < SEARCH = = = = the direction of the search. < < REWIND = = = = Rewind is in progress. ERASE = = = = The tape drive is erasing data on the tape. Exabyte M ammoth...
  • Page 29 In the error display, xx indicates the fault symptom code, and yy and zz indicate secondary errors (if any). ERR 2: xx yy zz If an error appears, contact Exabyte Technical Support. ERR 3: xx yy zz Diagnostics and loading code...

  • Page 30: Selecting Appropriate Data Cartridges

    RETRY CODE LOAD MAKE CODELOAD TP The tape drive is making a code load tape. These are the correct messages as of January 1999. You can find updated LCD messages on Exabyte’s Web site (www.exabyte.com). Selecting appropriate data cartridges For writing data, use only Exatape™ advanced metal evaporated (AME) data cartridges.
  • Page 31 AME cartridge after reading MP tape, you must clean the tape drive (see page 28). Important Mammoth can read data written on metal particle tape, but it cannot w rite to this type of tape. Installation and Operation...

  • Page 32: Loading Data Cartridges

    1. Make sure the tape drive is ready to accept a cartridge (all LEDs are off). Do not insert a cartridge if the tape drive is still performing its power-on self-test. 2. Set the write-protect switch for the desired operation (shown below). Exabyte M ammoth...

  • Page 33: Unloading Data Cartridges

    Operating the tape drive 3. Insert the cartridge as shown in the following figure. The tape drive loads the tape in approximately 20 seconds. When the middle LED is on, the tape drive is ready for read and write operations. Unloading data cartridges To unload a cartridge, press the unload button.

  • Page 34: Resetting The Tape Drive

    To clean the tape drive, insert an Exabyte Mammoth 8mm Cleaning Cartridge (or a cleaning cartridge approved by Exabyte for use with Mammoth). When finished, the tape drive turns off the top LED and ejects the cleaning cartridge. Exabyte M ammoth...

  • Page 35: Using Tape Alert

    Operating the tape drive About the dynamic head cleaner The Exabyte Mammoth features an integrated dynamic head cleaner (cleaning wheel) for automatic self-cleaning of the recording heads and scanner. The cleaning wheel is activated every time media is loaded or unloaded. In addition, a sophisticated algorithm contained in the tape drive’s firmware...

  • Page 36: Packing The Tape Drive

    If you are returning the tape drive to the factory for service, contact your service provider. If your service provider instructs you to return the tape drive directly to Exabyte, contact Exabyte Service (1-800-EXATAPE) to obtain a Return Materials Authorization (RMA) number and the shipping address.

  • Page 37: Appendix

    Appendix Appendix Specifications Maximum Data Capacity Tape Length Compressed Data Uncompressed Data 5 gigabytes 2.5 gigabytes 170m 40 gigabytes 20 gigabytes Assumes a 2: 1 compression ratio. Maximum Data Transfer Rates Compressed data 6 MB/sec. Uncompressed data 3 MB/sec. Assumes a 2: 1 compression ratio. Operating Environment Specifications Tape Path + 5°...
  • Page 38 † HVD/LVD 25 meters (82 feet) A maximum cable length of 6 meters is acceptable if the transfer rate is less than 5 MB/sec. † The maximum length for any one cable is 12 meters (39 feet). Exabyte M ammoth...
  • Page 39 Appendix SCSI Cable Specifications — Tabletop M odel Connector type Narrow 50-pin male, high-density, shielded, AMP 750681-1 68-pin male, high-density, shielded, Wide AMP 750752-1 Total maximum length (terminator to terminator) † Single-ended 3 meters (9.8 feet) ‡ HVD/LVD 25 meters (82 feet) Each tabletop tape drive attached to the SCSI bus uses 0.4 meters (1.31 feet) of cable length internally.
  • Page 40 Appendix Notes Exabyte M ammoth...

  • Page 41: Index

    Index data capacity data cartridges See cartridges data format differential agency standards altitude specifications AME tape eject button See unload button environmental specifications error conditions displayed on LCD back panel displayed on LEDs internal model ESD protection 3, tabletop model &...
  • Page 42 SCSI configurations SCSI ID displayed on LCD orientation pads for tabletop setting for internal model 5–6 model setting for tabletop model serial number of tape drive shipping the tape drive single-ended 2, specifications 31–33 Exabyte M ammoth...
  • Page 43 Index tape See cartridges Tape Alert tape motion LED 19–20 tape ready LED 19–20 temperature specifications termination internal model tabletop model 17, transfer rates unload button location used for resetting tape drive used for unloading cartridges voltages Installation and Operation...
  • Page 44 Index Notes Exabyte M ammoth...
