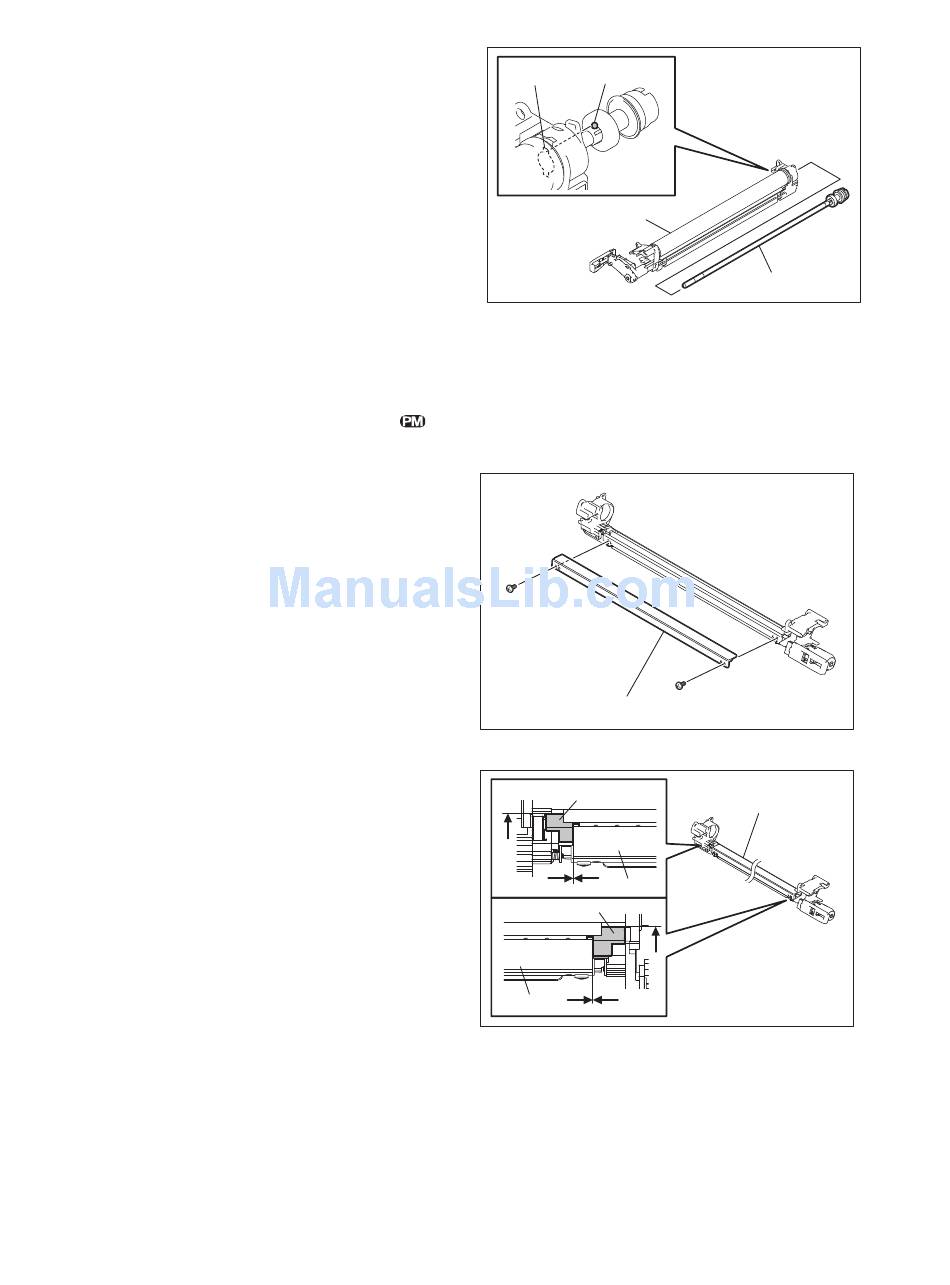

3. Insert the drum shaft to the drum while
aligning the position of the pin on the
shaft with the groove of the drum. After
they are aligned, push the shaft fully in to
engage the groove and pin with the
sleeve.
Note:
Be sure to align the position before inserting
the shaft. If the drum or drum shaft is rotated
with the sleeve engaged with the groove
and pin, sleeve may be deformed.
4. Install the bearing on the front side of the
drum shaft.
12.6.9

Drum cleaning blade

(1) Take off the Drum.
 P.12-18 "12.6.8 Drum"
(2) Remove 2 screws and take off the drum
cleaning blade.
Note:
Be sure not to touch or scratch the edge of
the cleaning blade.
Note:
When replacing the drum cleaning unit,
check if there is no gap between the blade
and pad on both ends. If there is, or when the
pads put pressure to the cleaning blade,
reattach the pads on the position shown in
the figure (by slightly pushing them to the
direction of the arrows).
e-STUDIO2330C/2820C/2830C/3520C/3530C/4520C
PROCESS UNIT RELATED SECTION
Pin
Groove
Drum
Drum cleaning blade
Felt
Blade
Felt
Blade
© 2008, 2009 TOSHIBA TEC CORPORATION All rights reserved
12 - 20
Drum shaft
Fig. 12-32
Fig. 12-33
Drum cleaning blade
Fig. 12-34
