Comparison Instructions
3-7-5

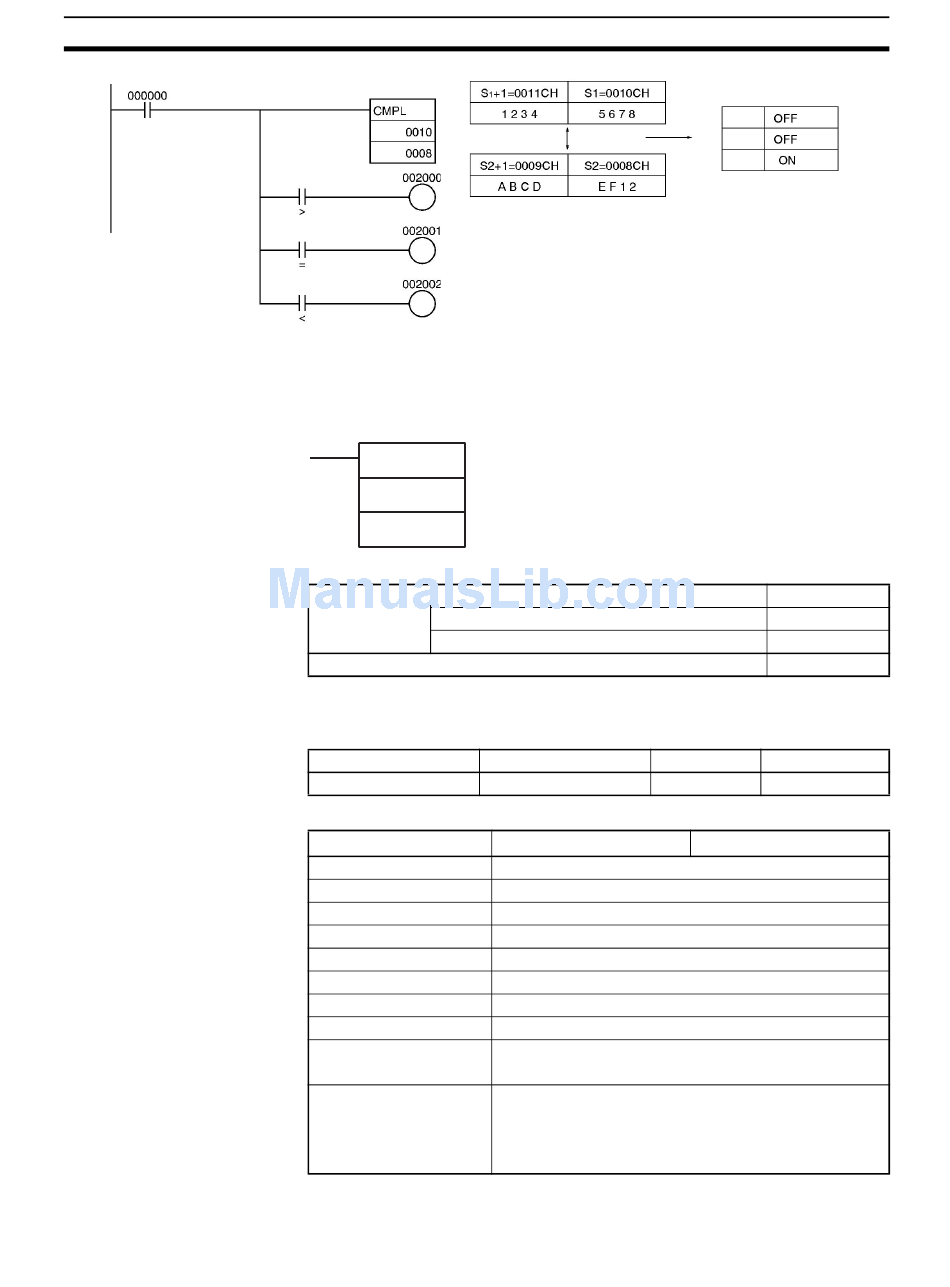

SIGNED BINARY COMPARE: CPS(114)

Purpose
Ladder Symbol
Variations
Applicable Program Areas
Operand Specifications
Compares two signed binary values (constants and/or the contents of speci-
fied words) and outputs the result to the Arithmetic Flags in the Auxiliary Area.
CPS(114)
S
1
S
2
Variations Executed Each Cycle for ON Condition
Executed Once for Upward Differentiation
Executed Once for Downward Differentiation Not supported
Immediate Refreshing Specification (See note.)
Note Immediate refreshing is not supported by CS1D CPU Units.
Block program areas
OK
Area
CIO Area
Work Area
Holding Bit Area
Auxiliary Bit Area
Timer Area
Counter Area
DM Area
EM Area without bank
EM Area with bank
Indirect DM/EM
addresses in binary
Comparison
S : Comparison data 1
1
S : Comparison data 2
2
Step program areas Subroutines
OK OK
S
1
CIO 0000 to CIO 6143
W000 to W511
H000 to H511
A000 to A959
T0000 to T4095
C0000 to C4095
D00000 to D32767
E00000 to E32767
En_00000 to En_32767
(n = 0 to C)
@ D00000 to @ D32767
@ E00000 to @ E32767
@ En_00000 to @ En_32767
(n = 0 to C)
Section 3-7
Flag status
> (0)
Result
= (0)
< (1)
CPS(114)
Not supported
!CPS(114)
Interrupt tasks
OK
S
2
