Timer and Counter Instructions
Flags
Precautions
272

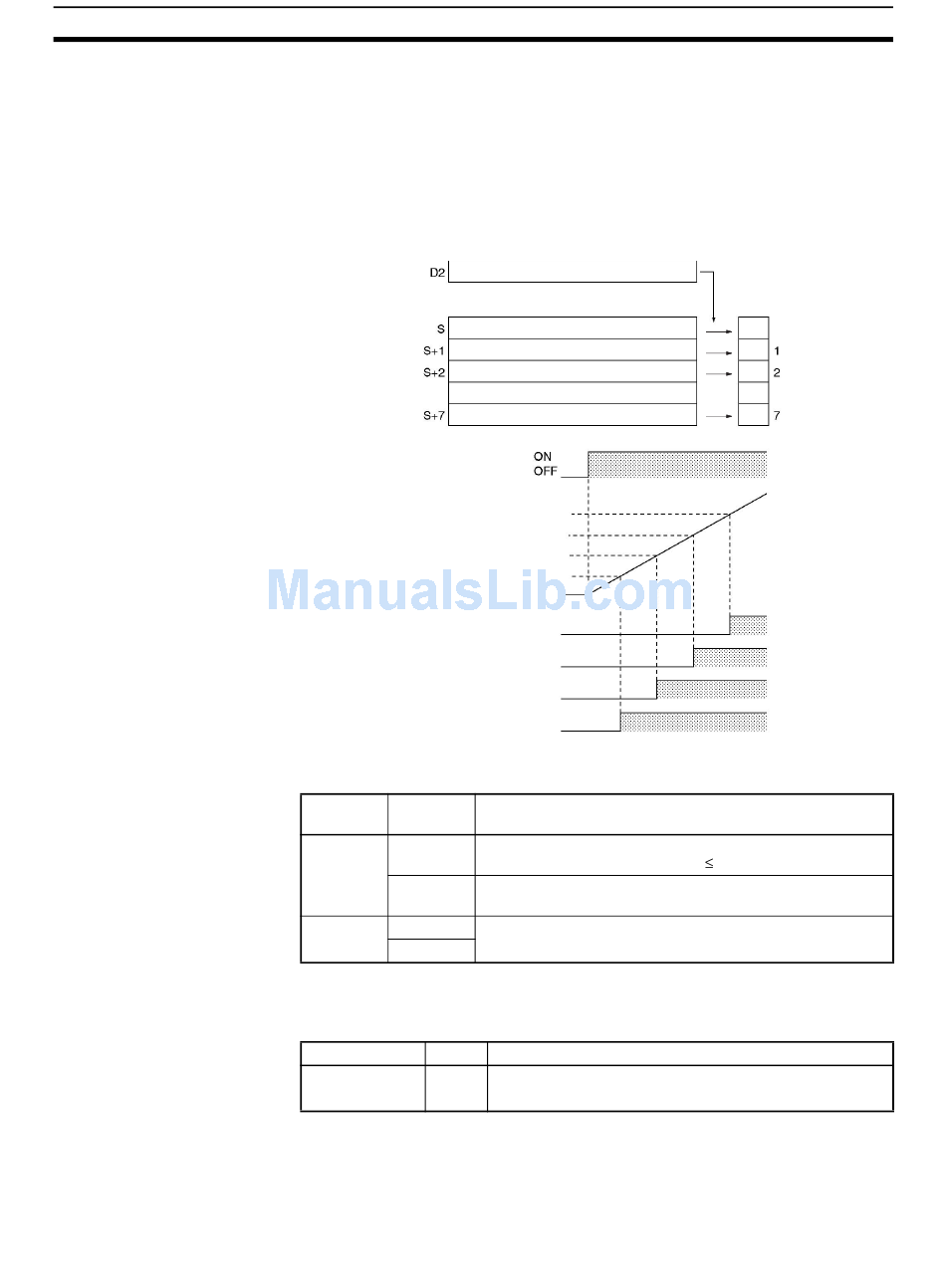

The PV (content of D2) is compared to the eight SVs in S through S+7 each
time that MTIM(543)/MTIMX(554) is executed, and if any of the SVs is less
than or equal to the PV, the corresponding Completion Flag (D1 bits 00
through 07) is turned ON.
When the PV reaches 9999, the PV will be reset to 0000 and all of the Com-
pletion Flags will be turned OFF. If the reset bit is turned ON while the timer is
operating or paused, the PV will be reset to 0000 and all of the Completion
Flags will be turned OFF.
to
Timer input
Timer PV (D2)
Completion
flags (D1)
The following table shows the operation of MTIM(543)/MTIMX(554) for the
four possible combinations of the reset and pause bits.
Reset bit Pause bit
(Bit 08) (Bit 09)
OFF OFF
ON
ON OFF
ON
The reset and pause bits are effective only when the execution condition for
MTIM(543)/MTIMX(554) is ON.
Name Label
Error Flag ER
Unlike most timers, MTIM(543)/MTIMX(554) does not use a timer number.
(Timer area PV refreshing is not performed for MTIM(543)/MTIMX(554).)
When the PV reaches 9999, the PV will be reset to 0000 and all of the Com-
pletion Flags will be turned OFF.
Timer PV
Timer SVs
SV 7
SV 2
SV 1
SV 0
0
Bit 7
Bit 2
Bit 1
Bit 0
Operation
The PV will be updated and the corresponding Completion
Flag will be turned ON when SV
The PV will not be updated and MTIM(543)/MTIMX(554)
will be treated as NOP(000).
The PV will be reset to 0000 and the Completion Flags will
be turned OFF. The PV will not be updated.
Operation
ON if the PV contained in D2 is not BCD.
OFF in all other cases.
Section 3-6
0
to
PV.
