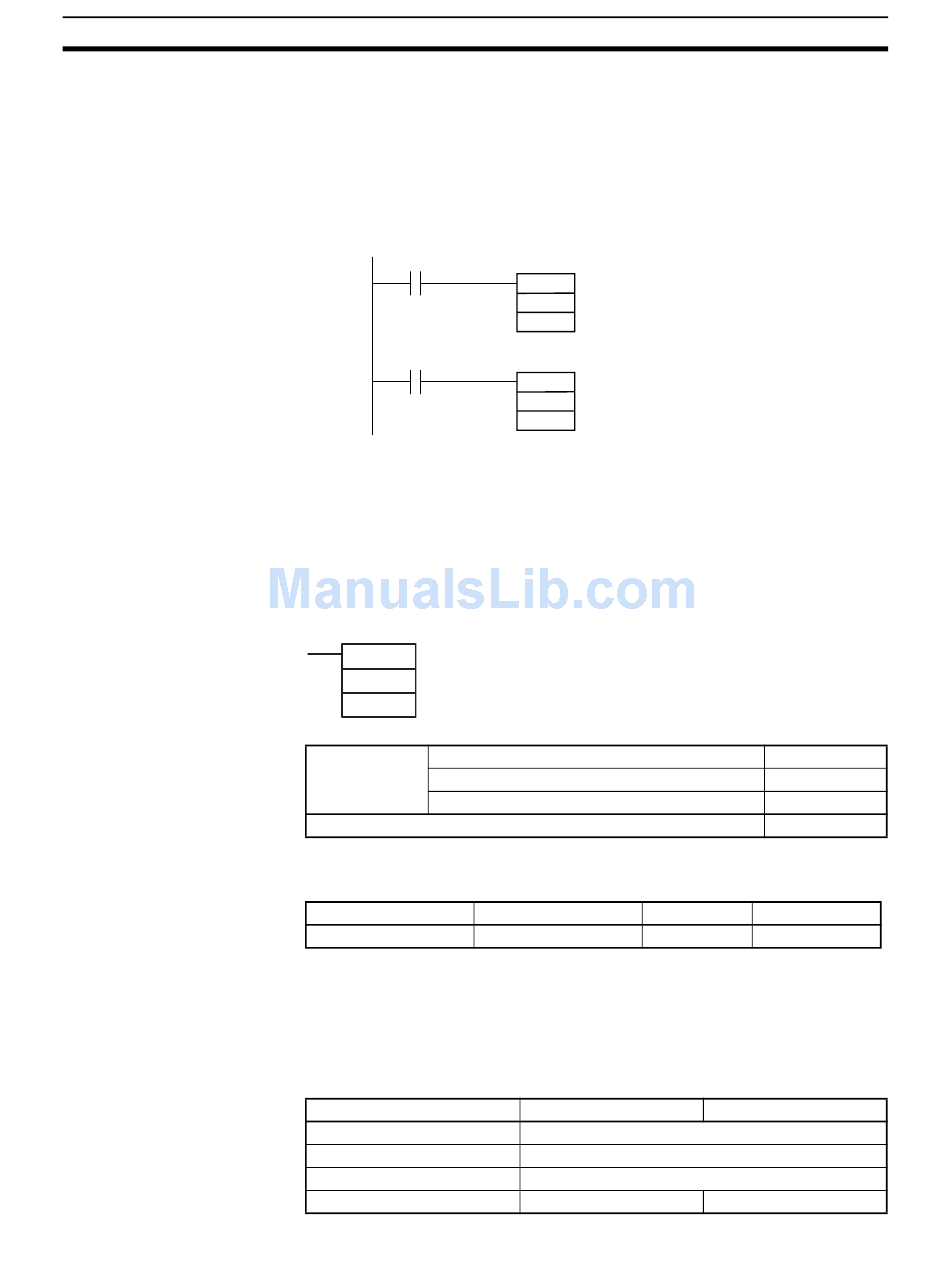

Sequence Output Instructions
3-4-8

SINGLE BIT OUTPUT: OUTB(534)

Purpose
Ladder Symbols
Variations
Applicable Program Areas
Operands
Operand Specifications
204
2. The OUTB(534) instruction turns ON the specified bit when its execution
condition is ON and turns OFF the specified bit when its execution condi-
tion is OFF.
3. The set and reset inputs for a KEEP(011) instruction must be programmed
with the instruction, but the SETB(532) and RSTB(533) instructions can be
programmed completely independently. Furthermore, the same bit may be
used as the operand in any number of SETB(532) and RSTB(533) instruc-
tions.
000000
000001
OUTB(534) outputs the status of the instruction's execution condition to the
specified bit. OUTB(534) can control a bit in the DM Area or EM Area, unlike
OUT.
This instruction is supported by CS1-H, CJ1-H, CJ1M, and CS1D CPU Units
only.
OUTB(534)
D: Word address
D
N: Bit number
N
Variations Executed Each Cycle for ON Condition
Executed Once for Upward Differentiation
Executed Once for Downward Differentiation Not supported
Immediate Refreshing Specification (See note.)
Note Immediate refreshing is not supported by CS1D CPU Units.
Block program areas
Not allowed
D: Word Address
Specifies the word containing the bit to be controlled.
N: Beginning Bit
Specifies the bit to be controlled. N must be #0000 to #000F (&0 to &15).
Area
CIO Area
Work Area
Holding Bit Area
Auxiliary Bit Area
SETB Bit 02 of D00000 is turned ON
D00000 when CIO 000000 is ON.
&2
RSTB
Bit 02 of D00000 is turned OFF
D00000
when CIO 000001 is ON.
&2
Step program areas Subroutines
OK OK
D
CIO 0000 to CIO 6143
W000 to W511
H000 to H511
A448 to A959
Section 3-4
OUTB(534)
Not supported
!OUTB(534)
Interrupt tasks
OK
N
A000 to A959
